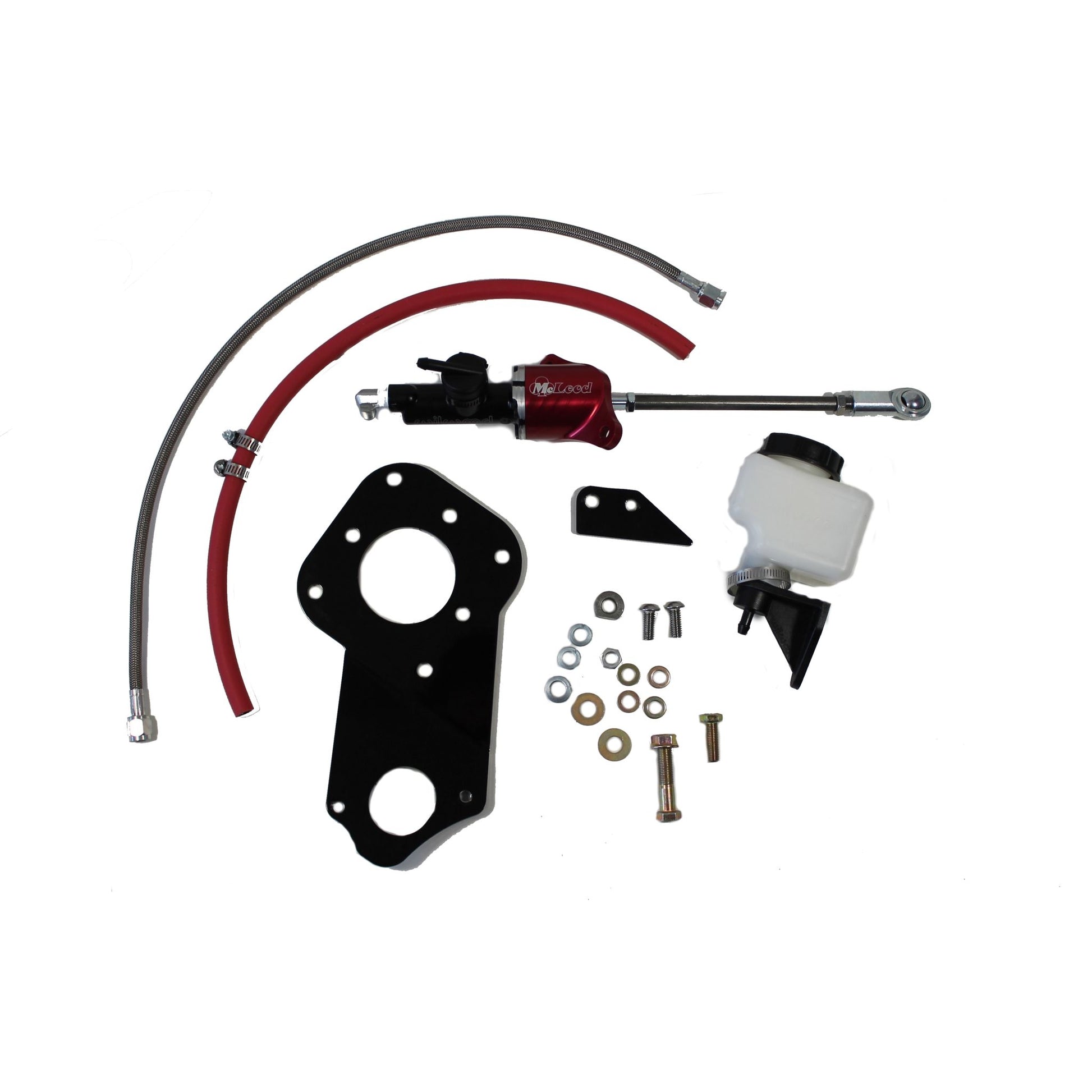

McLeod Kit:Hydraulic Conversion 1962-1967 Chevrolet Nova 1434003

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately

Attributes:

• GTIN: 00887753011220
• Brand Name: McLeod
• Make: Chevrolet
• Application: 1962-67 Nova
• Master Cylinder Bore: .750In.
• Master Cylinder Stroke: 1.2In.
• Hydraulic Line Type: Stainless Steel Braided AN-4
• Hydraulic Bearing Included: No
• NOTE:: This is the firewall kit only. This kit was designed to be used with a McLeod Racing 1300 or 1400 series internal hydraulic bearing. (Sold Separately)
• NOTE 2:: This firewall kit was designed to work with 1962-1967 Nova Manual Pedal Box Assemblies Only.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 12 lb
