McLeod Kit:Hydraulic Conversion 1963-72 Chevelle. With GM QD Fitting. 1434004

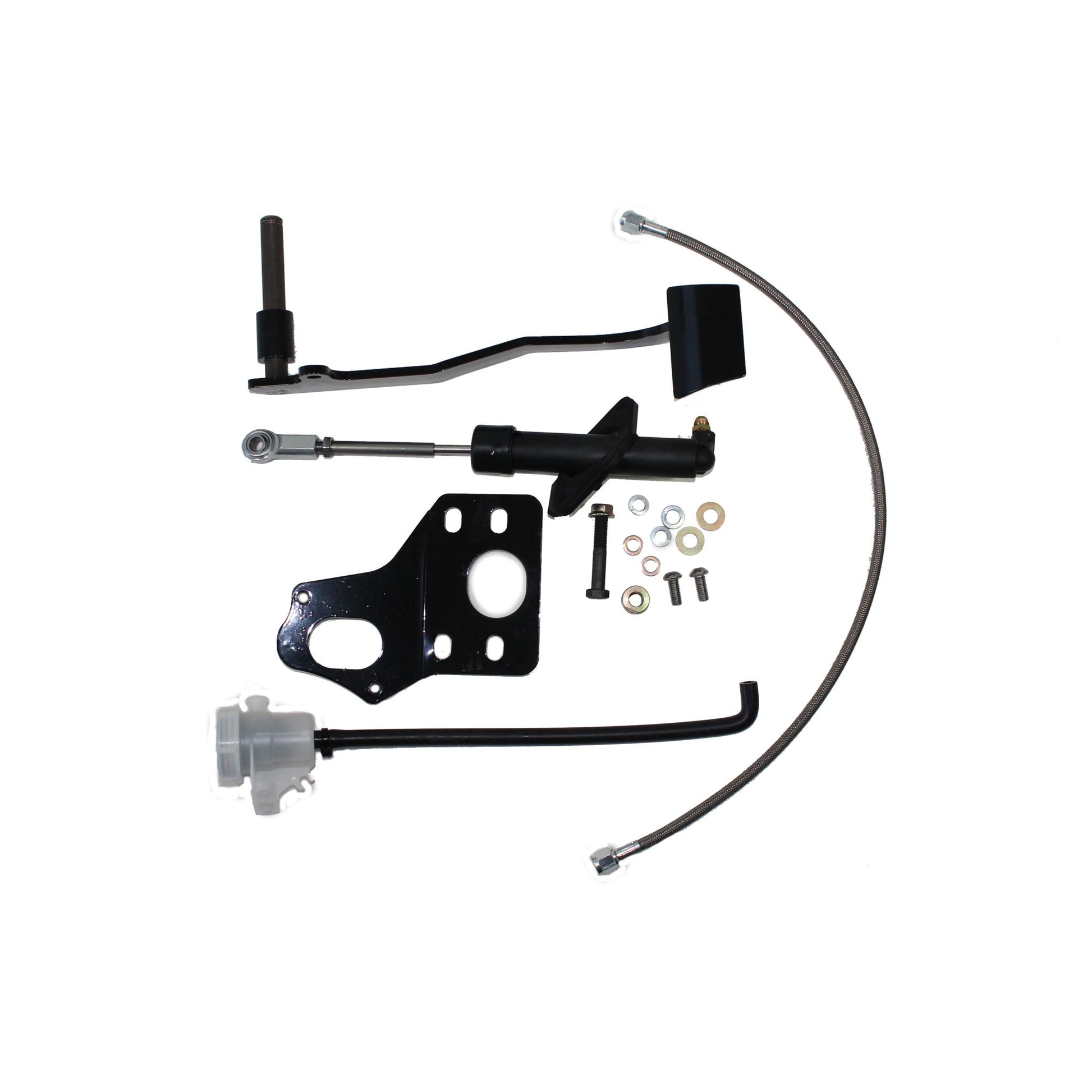

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately

Attributes:

• GTIN: 00887753011565
• Brand Name: McLeod
• Make: Chevrolet
• Application: 1963-1972 Chevelle
• Master Cylinder Bore: .750In.
• Master Cylinder Stroke: 1.2In.
• Fitting Connections: AN-4 S.S. Braided Line
• NOTE:: Firewall Kit Only. Hydraulic Bearing sold separately
• NOTE 2:: This kit is intended to work with McLeod Racing 1300 & 1400 series internal hydraulic bearings (Sold Separately) Call McLeod Tech for more info at 714-630-2764
• NOTE 3:: This firewall kit was designed to work with 1963-1972 Chevelle manual pedal box assemblies only. May not work with any other A-Body applications without modifications.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 12 lb
