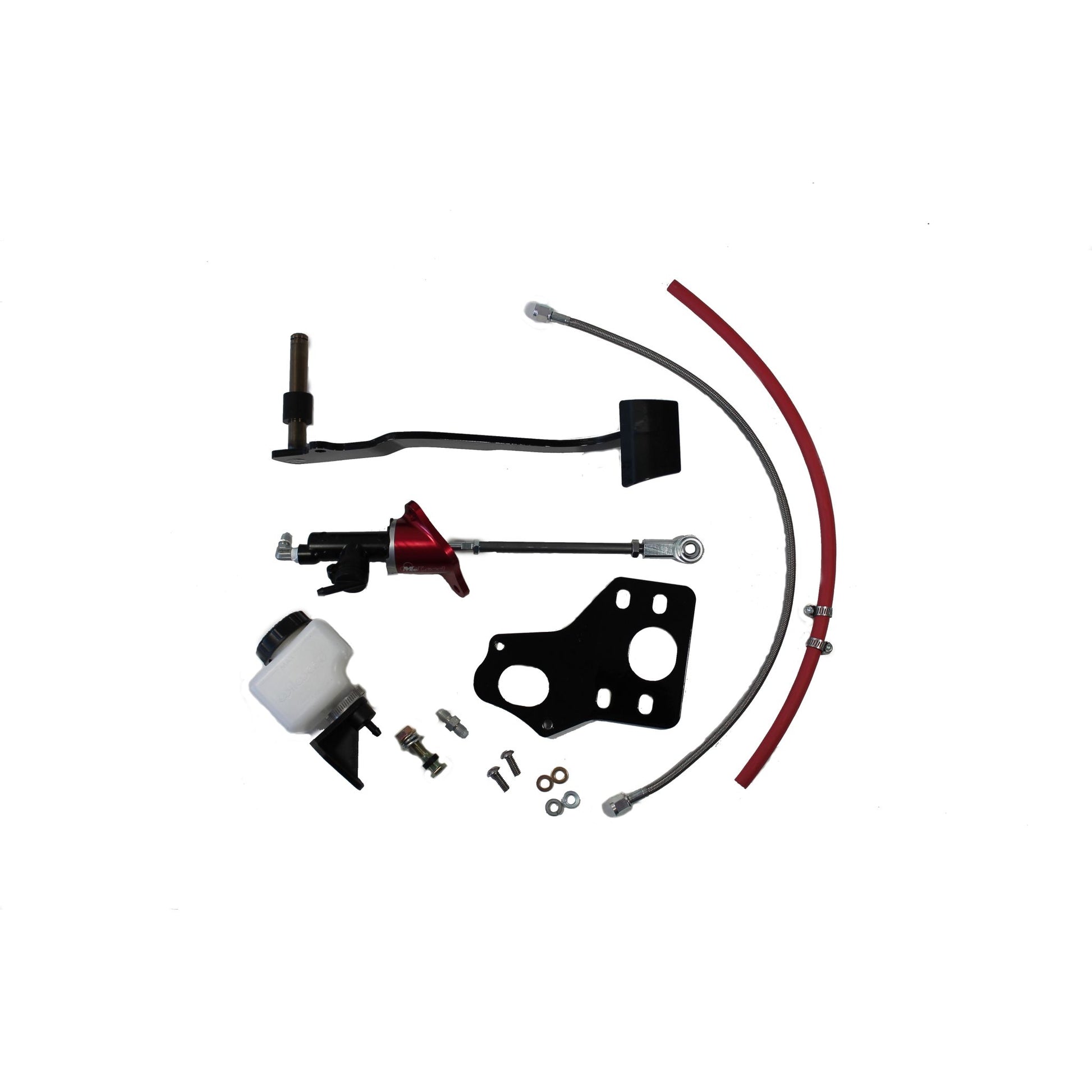

McLeod Kit:Hydraulic Conversion:1967-69 Camaro, 1968-74 Nova. 1434002

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately

Attributes:

• GTIN: 00887753011541
• Brand Name: McLeod
• Make: Chevrolet
• Application: 1967-69 Camaro
• Application 2: 1968-74 Nova
• Bore Size: 3/4In. Bore
• Steel braided Line: AN-4
• NOTE:: This is the firewall kit only. This kit was designed to be used with a McLeod Racing 1300 or 1400 series internal hydraulic bearing. (Sold Separately)
• NOTE 2:: This firewall kit was designed to work with 1967-1969 Camaro Manual Pedal Box Assemblies Only.
• NOTE 3:: This firewall kit was designed to work with 1968-1974 Nova manual pedal box assemblies only. May not work with any other X-Body applications without modifications. Please call McLeod for more info at 714-630-2764

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 12 lb
