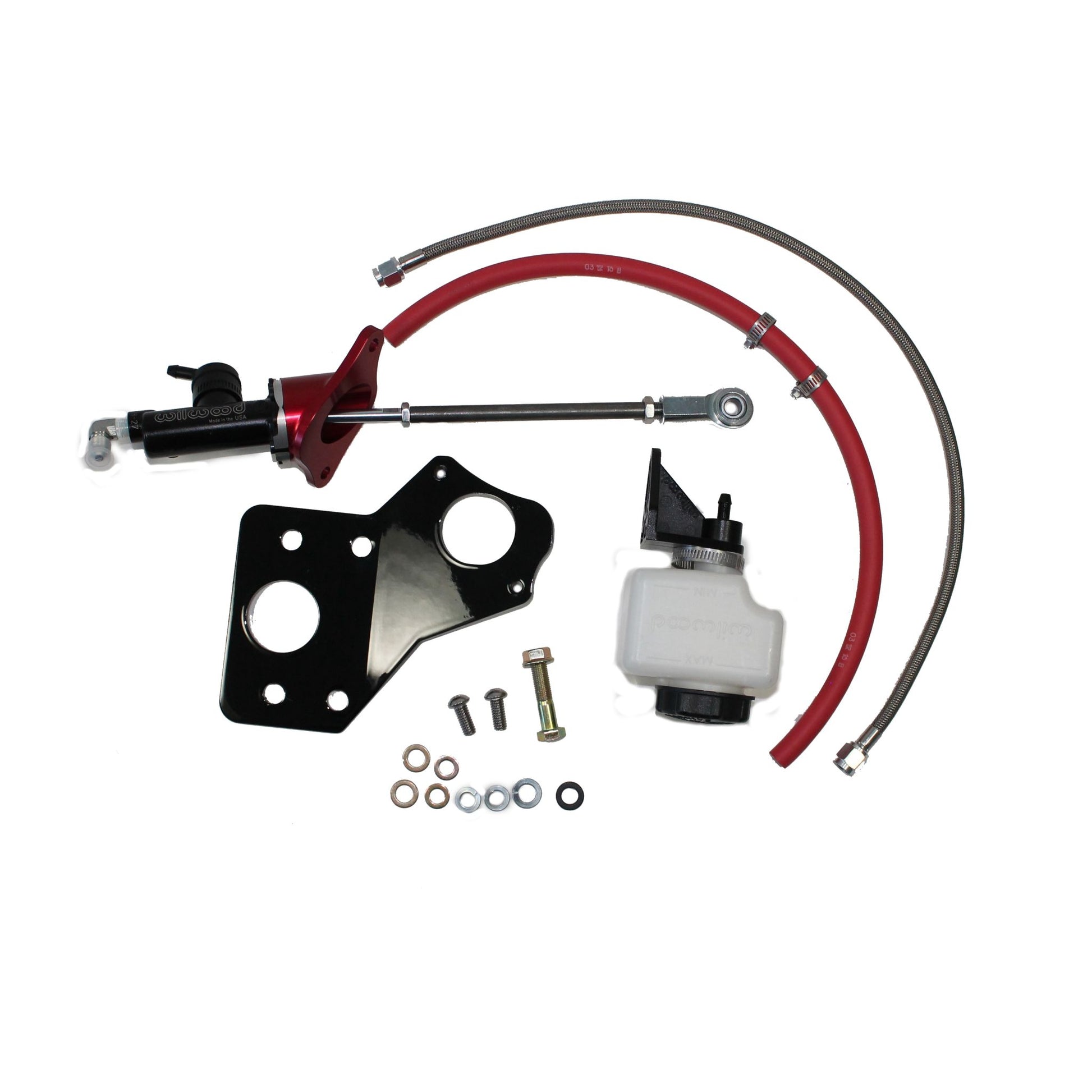

McLeod Kit:Hydraulic Conversion 1970-1981 Camaro. 1434005

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately

• McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you!

Attributes:

• GTIN: 00887753011589
• Brand Name: McLeod
• Make: Chevrolet
• Application: 1970-1981 Camaro
• Master Cylinder Bore: .750In.
• Master Cylinder Stroke: 1.2In.
• Fitting Connection: AN-4 S.S. Braided Line.
• NOTE:: Firewall Kit Only. Hydraulic Bearing Sold Separately.
• NOTE 2:: This kit is intended to work with McLeod Racing 1300 & 1400 series internal hydraulic bearings (Sold Separately) Call McLeod Tech for more info at 714-630-2764
• NOTE 3:: This firewall kit was designed to work with 1970-81 Camaro manual pedal box assemblies only. May not work with any other F-Body applications without modifications.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 12 lb
