Ksport Airtech Executive Air Suspension Full System - CMD400-AEX

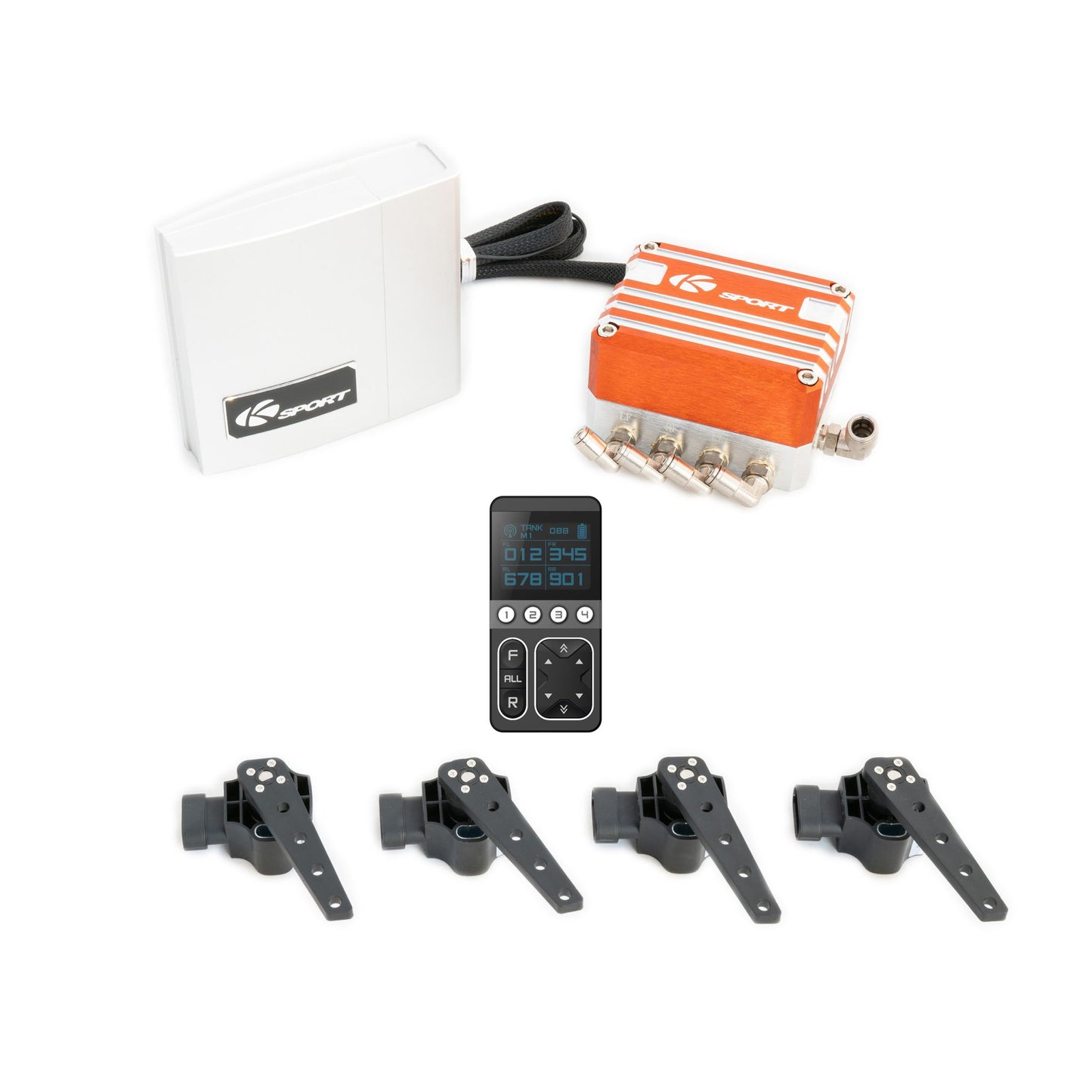

Ksports Executive system has all the features of the Pro Plus kit but adds 4 height sensors that constantly monitor each corner of your vehicle and auto level the ride height while driving. No switches or gauges are needed with this kit and no complex wiring is involved. Instead the kit is operated off a single OLED color screen remote control. The remote displays air tank pressure and front/rear left/right air bag pressure. Four user presets can be saved so you can have quick access to changing your ride height on the fly. The Executive kit offers 4-way adjustability where you can adjust front/rear left/right independently. Memory for engine start will automatically set the ride height you choose. The remote can be charged via standard mini USB and we even include a convenient car charger. Ksports seamless installation control box is standard along with a single Viair 444c compressor (a 2nd compressor can be added for an additional cost). A polished lightweight 5-gallon air tank is another welcomed upgrade from our Basic and Deluxe kits. A standard 4 button remote control is also included as a backup in case the battery dies on the OLED remote. Professional installation is recommended. All Ksport Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as drift circuit use. Take advantage of the near infinite adjustability thanks to the adjustable lower mount, 36 levels of damping adjustment, and the unmatched height adjustability (0-120/200mm depending on vehicle) of air suspension. Ksports air suspension kits are designed for easy bolt-on installation. No modifications to OEM shock absorbers, or OEM top mounts is required. Vehicle may need to be modified for air-line routing. All Ksport Airtech Systems use a VIAIR compressor and can be raised from the lowest setting to max height in as little as 2 seconds . All hoses, fittings, wiring, and installation manuals are included.

• High Performance Ksport Shock Absorbers
• Automatic Load leveling based on height sensors
• No modifications to OEM shock absorbers, or OEM top mounts is required
• 36 levels of damping which allow you the ability to perfectly dial in your Air Ride System
• Adjustable lower mounts allow for maximum suspension travel
• 5-gallon lightweight polished air tank w/carpeted mounting board

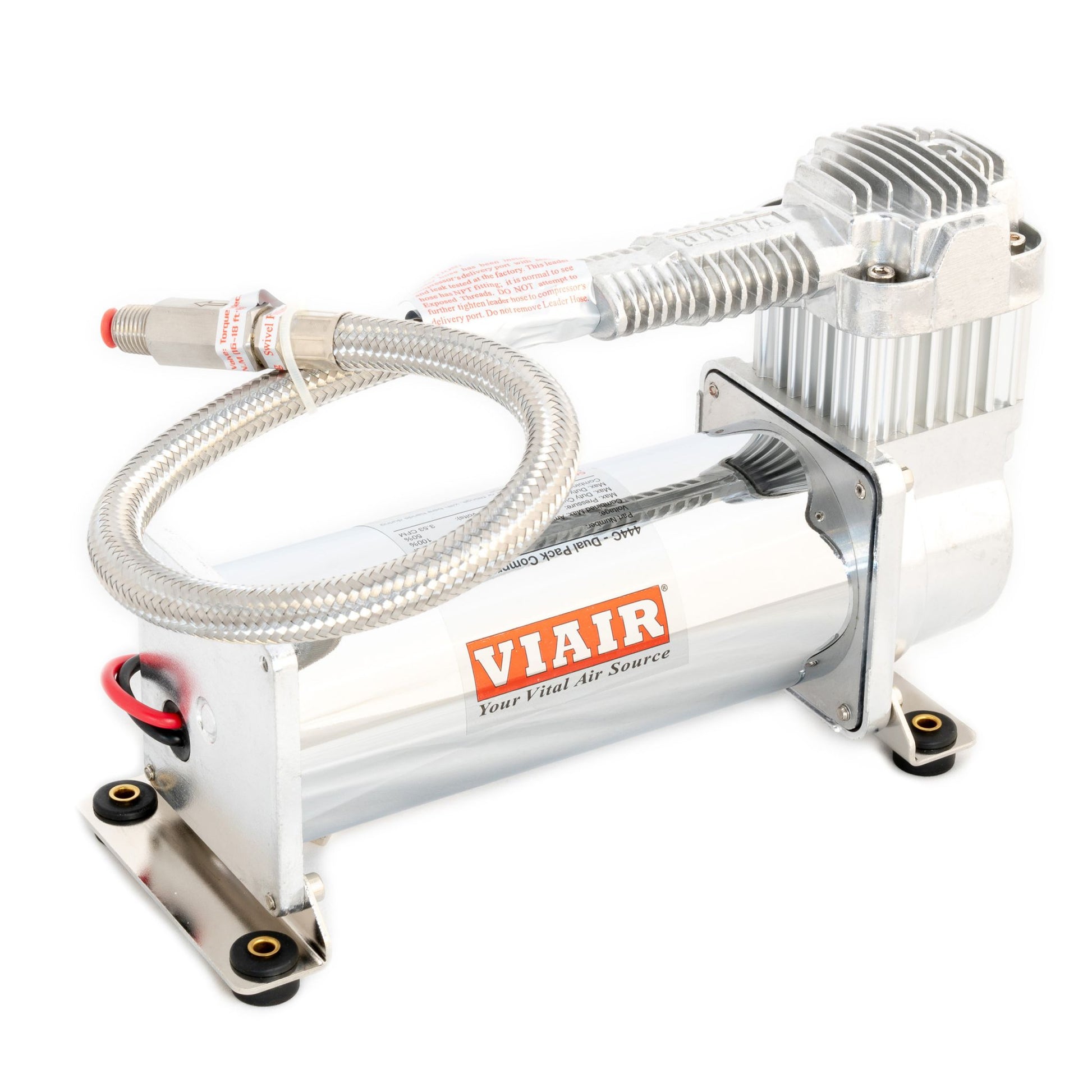

• Ksport chose to use the upgraded Viair 444c compressor for their reliability and performance.
• All components are included to have a properly functioning Air Ride System
• Ksport control unit offers as simple an installation as possible. Simply run your air lines to the box and connect 4 wires to Ksport quick disconnect plug, wire up the compressors and relay and you're done.
• 12 Month Limited Warranty
• Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as light track use
• Height adjustability ranges from (0-120/200mm depending on vehicle)
• OLED Digital Remote Control
• Digital screen that displays tank and spring pressures
• Key on programmable ride height memory
• Blue Tooth Phone receiver available for IOS at an additional small fee
• 4x memory ride high presets
• Executive kits add ride height sensors on each corner of the vehicle for more precise control

Attributes:

• GTIN: 00840059418438
• Brand Name: Ksport
• Air Hose Material: Nylon
• Bellows Material: Rubber
• Bellows Maximum Height: Vehicle Specific
• Bellows Minimum Height: Vehicle Specific
• Compressor Operating Position: Horizontal
• Ksport Product Category: Air Suspension Kits
• Ksport Product Sub-Category: Airtech Executive Air Suspension Full System
• Maximum Compressor Pressure: 200 PS
• Subject to CARB? Yes/No: No
• Top Mount Type - Front: Pillowball Mount with camber adjustment
• Top Mount Type - Rear: Reuses OEM Top Mount
• Voltage: 12 Volts

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 12 x 9 x 12 inches
• Weight: 10 lb
