Ksport Supercomp Big Brake Kit - BKVW230-971CO

Ksport big brake kits provide the ultimate in stopping power for your vehicle. Integrating new brake technology into the design of the kits allows for a kit that highly reduces brake fade and continually cools and refreshes the brake pads surface under braking. These brake systems are designed for easy installation with minimal tools required (in most applications). Our extreme lightweight SuperComp caliper comes in differential bore configuration and features much larger pistons than our ProComp calipers. It is machined from aircraft quality billet, weighs just over 7lbs. each, and has machined in protection grooves for the bridge tubes. Aluminum pistons, high temperature seals, and stainless steel brake pad wear plates are also standard on each caliper design. The opposed piston caliper design greatly improves pad wear and caliper rigidity over the OEM design. The stainless steel brake lines stop expansion under pressure. Due to the larger size of the caliper in the ProComp series, 4 brake pads are standard per caliper. SuperComp systems come standard with our 2-piece floating disc assembly, which reduces weight both rotating and unsprung. The floating disc also stops thermal stresses of extreme heat from warping the disc or cupping the braking surface. The unique slot design on the rotor greatly reduces braking noise and expels gas and pad debris faster than conventional slot designs. Every rotor is always heat treated and balanced before shipment for the best possible performance. Cross drilled rotors tend to run cooler than slotted and are recommended for daily driven vehicles. Slotted rotors are recommended for vehicles that will be seeing more track use than daily driving.

• All components are designed for bolt-on replacement without modifications
• Aluminum caliper pistons provide freedom from corrosion, better heat resistance, and lighter weight
• Reinforced carbon steel caliper brackets allow these larger-than-OEM size calipers to bolt directly on to existing mounting points
• All rotors feature 2-piece design with an aluminum center for lower rotational mass, quicker braking response, and shorter stopping distances
• 2-piece design greatly reduces chance of rotor warpage through less restricted expansion/contraction of outer iron section
• All caliper seals are heavy duty for sustained high-temperature racetrack use
• Outer rotor sections are crafted from iron with high carbon content which achieves low levels of noise, vibration, and harshness more details on
• Slotted rotors are recommended for track use and feature grooves on rotor surface to wipe away heat, dust, and gases (Available Option)
• Cross drilled rotors are the best option for a daily driven street car. Drilled rotors tend to run slightly cooler than slotted. Both types have increased bite over stock/continuously clean and refresh the pad surface. (Available Option)
• For street use, choose SC5 Street pads with long-lasting, low-dust ceramic compound. Optimal operating temperatures are between 194'F ' 1022'F for fast warm up under normal driving conditions.
• For track use, choose RC1 Race Pads These carbon metallic race pads are designed to give you the best stopping power possible under extreme track conditions
• See Product Options for rotor sizes and designs, brake pad choices, caliper choices, and color options
• Super 8 Pot Calipers in Our Front 380mm, 400mm, 421mm and Rear 400mm Systems
• 4 Standard colors available Orange, Red, Yellow, Black and over 20,000 Custom upgradeable colors available

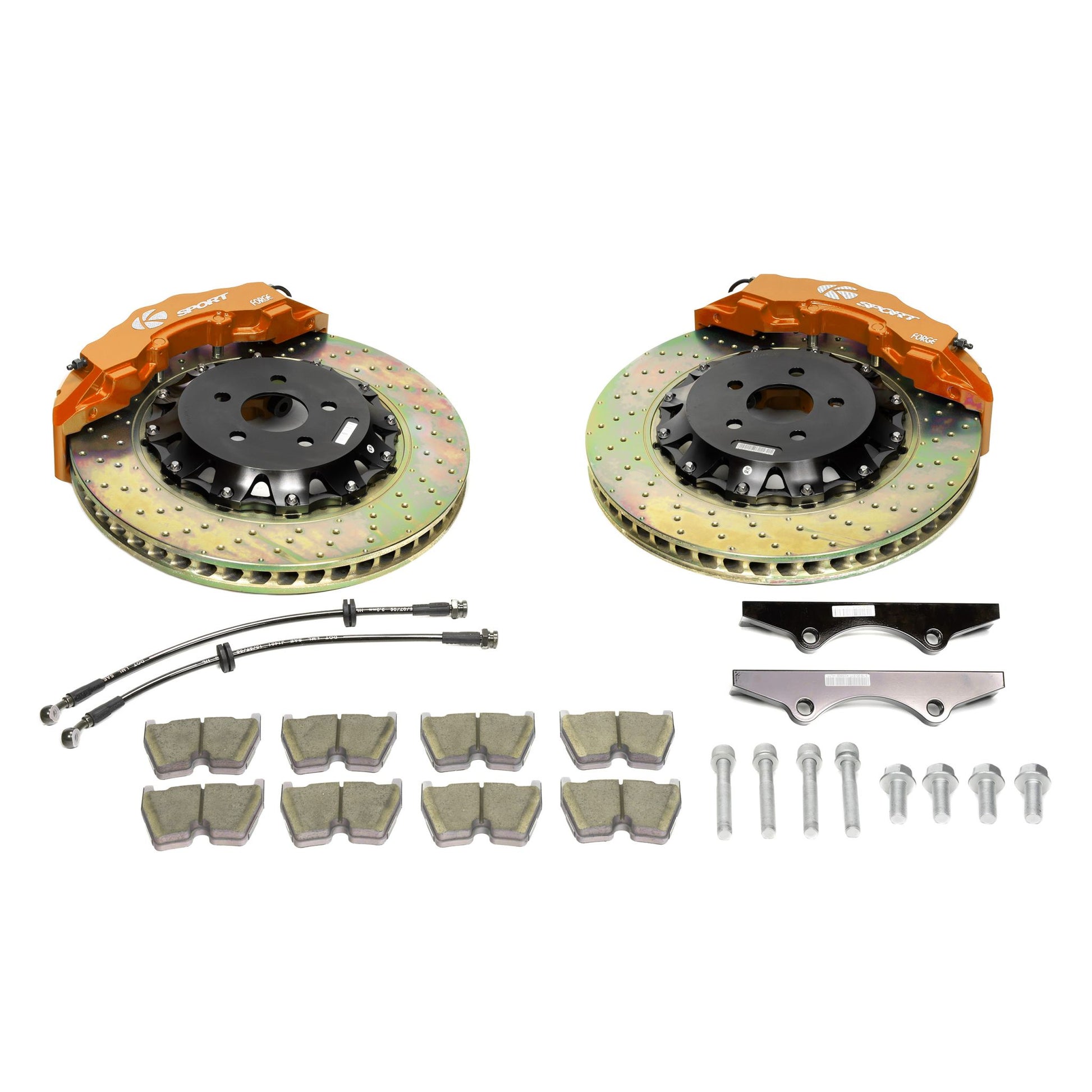

• Ksport SuperComp Big Brake Kit includes replacement calipers, rotors, pads, brake lines, and all related hardware
• SuperComp rotors add standard full-floating design for better self-centering in the caliper which lowers brake drag and boosts performance
• All Ksport big brake kits come standard with a 12-month warranty which covers manufacturer defects.
• All calipers feature 1-piece construction from a solid billet of aluminum for light weight and unparalleled strength
• Opposed-piston caliper design greatly improves pad grip and reduces uneven wear

Attributes:

• GTIN:
• Brand Name: Ksport
• Anti-Rattle Spring Included: Yes
• Caliper Casting Material: Aluminum
• Caliper Color: Orange
• Caliper Inlet Port Diameter: M10 x 1
• Caliper Piston Material: Aluminum
• Caliper Piston Quantity: 8
• Caliper Slides Included: Yes
• Caliper Type: 8 Piston
• Color: Orange
• Disc Brake Rotor Construction: Vented
• Friction Material Composition: Ceramic
• Grade Type: Performance
• Ksport Product Category: Big Brake Kits
• Ksport Product Sub-Category: Supercomp Big Brake Kit
• Mounting Bracket Included: Yes
• Pad Shims Included: No
• Position: Front
• Rotor Diamater (in): 16.6
• Rotor Diamater (mm): 421
• Rotor Outside Diameter: 16.6
• Rotor Style: Drilled
• Rotor Type: Floating
• Rotor Width mm: 36
• Subject to CARB? Yes/No: No
• Surface Type: X Drilled

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: PR
• Dimension: 26 x 17 x 7 inches
• Weight: 44 lb
