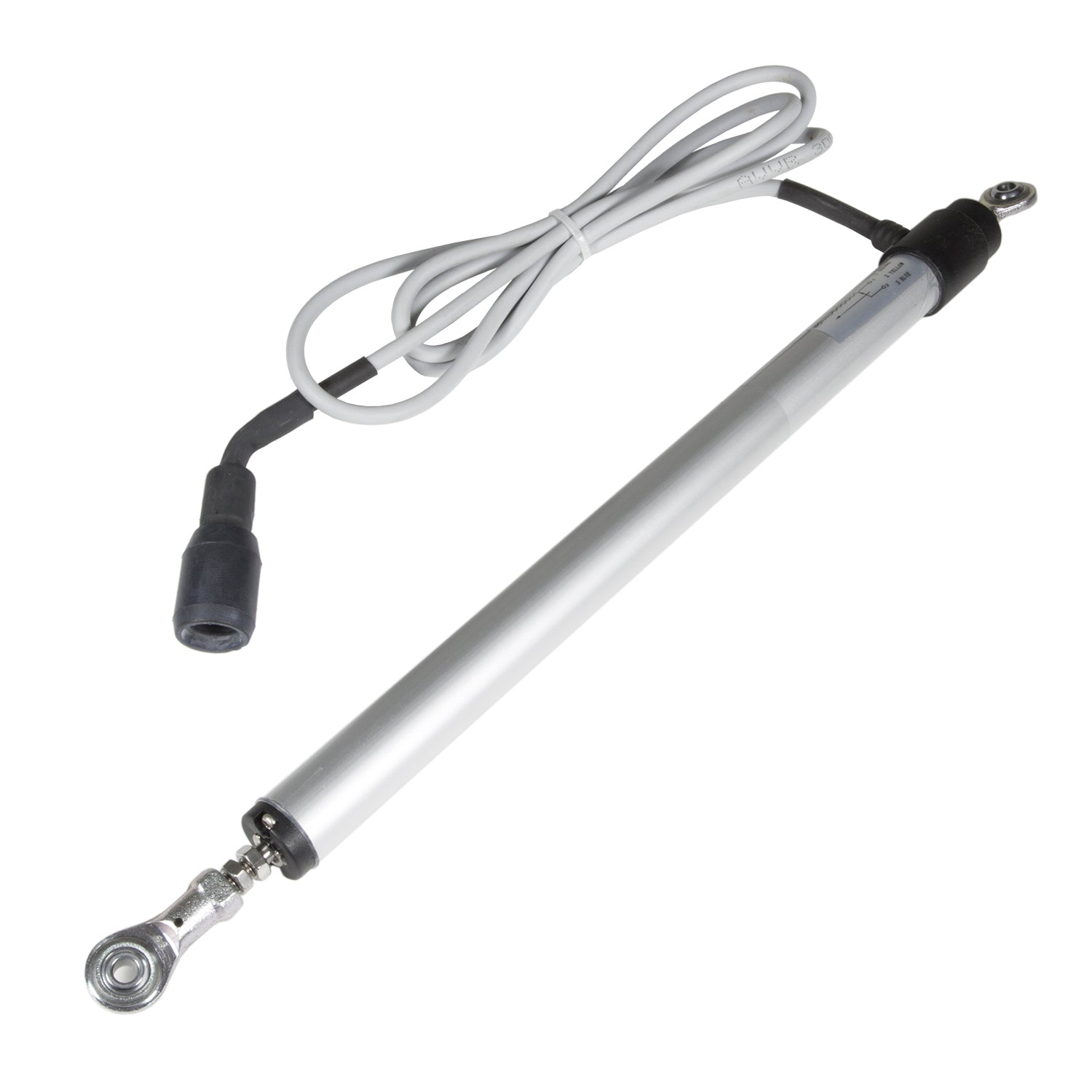

Stack LINEAR POTENTIOMETER CLUB 200MM/8 in. (E.G. SUSPENSION) ST270074

Stack Clubman Linear Potentiometers provide excellent value for motorsport monitoring and measurement tasks offering sound repeatability, reliability, linearity and environmental performance. Featuring IP65 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8"), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, aerodynamic surface deflection, and actuator travel.

• Retracted Mounting Distance: 330 mm (13")
• Anodised Aluminium Housing, IP65 Sealed.
• Body Length: 291 mm (11.5"), Body Width: 13 mm (0.5")
• Spherical Bearing Mounting Hole Size: 5 mm (0.197")
• Pre-terminated cable with Mini Sure Seal Connector. Length: 1,000 mm (39")
• Linearity: +/- 0.05%
• Life: Greater than 25 million cycles
• Operating Temperature: -30 to +100 Degrees C (-22 to 212 Degrees F)
• Total Electrical Travel: 200 mm (8")
• Maximum Operating Speed: 5m/s

Attributes:

• GTIN: 00046074162282
• Brand Name: Stack
• Add-On: ST884;ST978;ST749;ST979;ST976
• Product Type: Sensor

Extended Information:

• Country of Origin:
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 0.5 x 14 x 4 inches
• Weight: 0.5 lb
