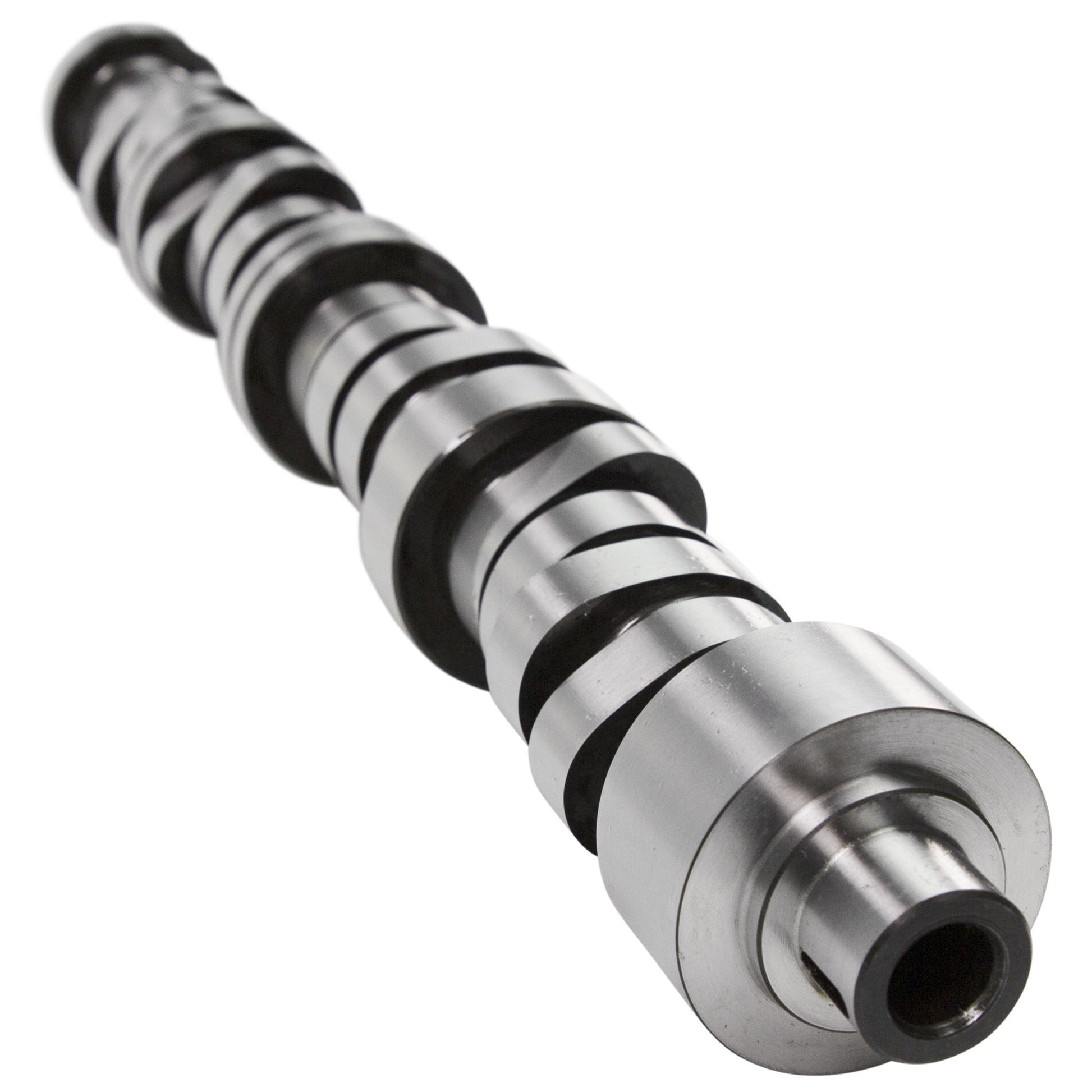

COMP Cams LST Stage 1 NSR Solid Roller Camshaft for '01-'16 GM 6600/6.6L Duramax Diesel COMP-132-300-13

The LST Camshaft Series uses the newest and most advanced lobe designs from COMP Cams. These new lobes provide the potential for major increases in power and torque in Duramax engines when combined with the appropriate tuning. The “Low Shock Technology” features lobe profiles designed to maximize additional engine airflow, which reduces harmful EGTs, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. Organized into stages that allow you to choose your level of performance, Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched with maximum effort tuning.

Attributes:

• GTIN: 00036584408604
• Brand Name: COMP Cams
• Basic Operating RPM Range: 1,000-3,600
• Camshaft Gear Attachment: 1-Bolt
• Exhaust Valve Lash: 0.014
• Intake Valve Lash: 0.012
• Recommended Valve Spring Kit: 26125ACS-KIT/26125BCS-KIT
• Grind Number: 244LST-R108
• Camshaft Material: Billet Steel
• Lifters Included: No
• Assembly Lubricant Included: No
• Lobe Separation: 108
• Valve Springs Required: No
• Engine Family: 2001-2016 GM 6600/6.6L Duramax Diesel
• Camshaft Series: LST/No Springs Required/No Tune Required
• Cam Type: Solid Roller
• Lifter Style: Solid Roller
• Intake Valve Lift: 0.4
• Exhaust Valve Lift: 0.4
• Usage: Street
• Advertised Exhaust Duration: 268
• Advertised Intake Duration: 244
• Exhaust Duration at .050 inch Lift: 200
• Intake Duration at .050 Inch Lift: 186
• Computer Tune Required?: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.0157 x 2.9134 x 2.5984 inches
• Weight: 14.3 lb
