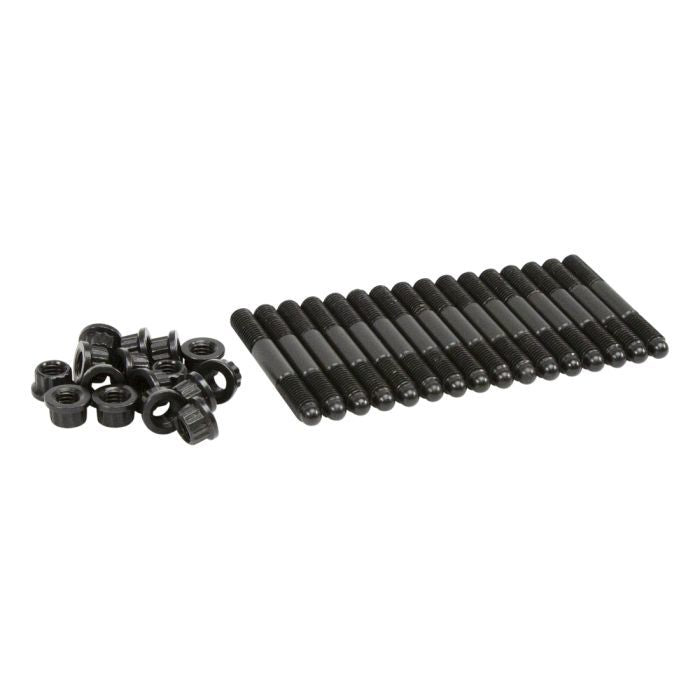

COMP Cams M8x1.25 threads on both sides. 65mm Overall Stud Length. 12 Point flange nuts COMP-4582-KIT

This rocker stud and nut assembly allows for improved clamping load, adding up to a more rigid, stable and high revving valve train assembly. Additionally, it saves the threads in aluminum cylinder heads, especially in race applications that see constant disassembly. The stud kit also aids during installation of shaft mount rocker systems by accurately guiding the rocker arm assembly into position. The 12 point flange nuts provide ample clearance to rocker arms for maximum lift potential while a rounded nose on top of the stud prevents cross threading of the nut during assembly. Manufactured from grade 12.9 hardware, these high-strength studs also help to prevent thread fatigue and pulling of threads in aluminum heads.

Attributes:

• GTIN: 00036584413103
• Brand Name: COMP Cams
• Base Thread Size: M8x1.25
• Rocker Arm Nut Thread Size: M8x1.25
• Guideplate Locator Shank: N/A
• Rocker Arm Nut Thread Length (mm):: 14.6
• Rocker Arm Nut Thread Length (in):: 0.575
• Effective Stud Length (mm):: 41.4
• Effective Stud Length (in):: 1.63
• Base Thread Length (mm):: 19.1
• Base Thread Length (in):: 0.752
• Rocker Arm Nuts Included: Yes
• Rocker Arm Nut Wrench: 10mm, 12 point
• Quantity:: 16

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 8 x 2.225 x 2.225 inches
• Weight: 1.05 lb
