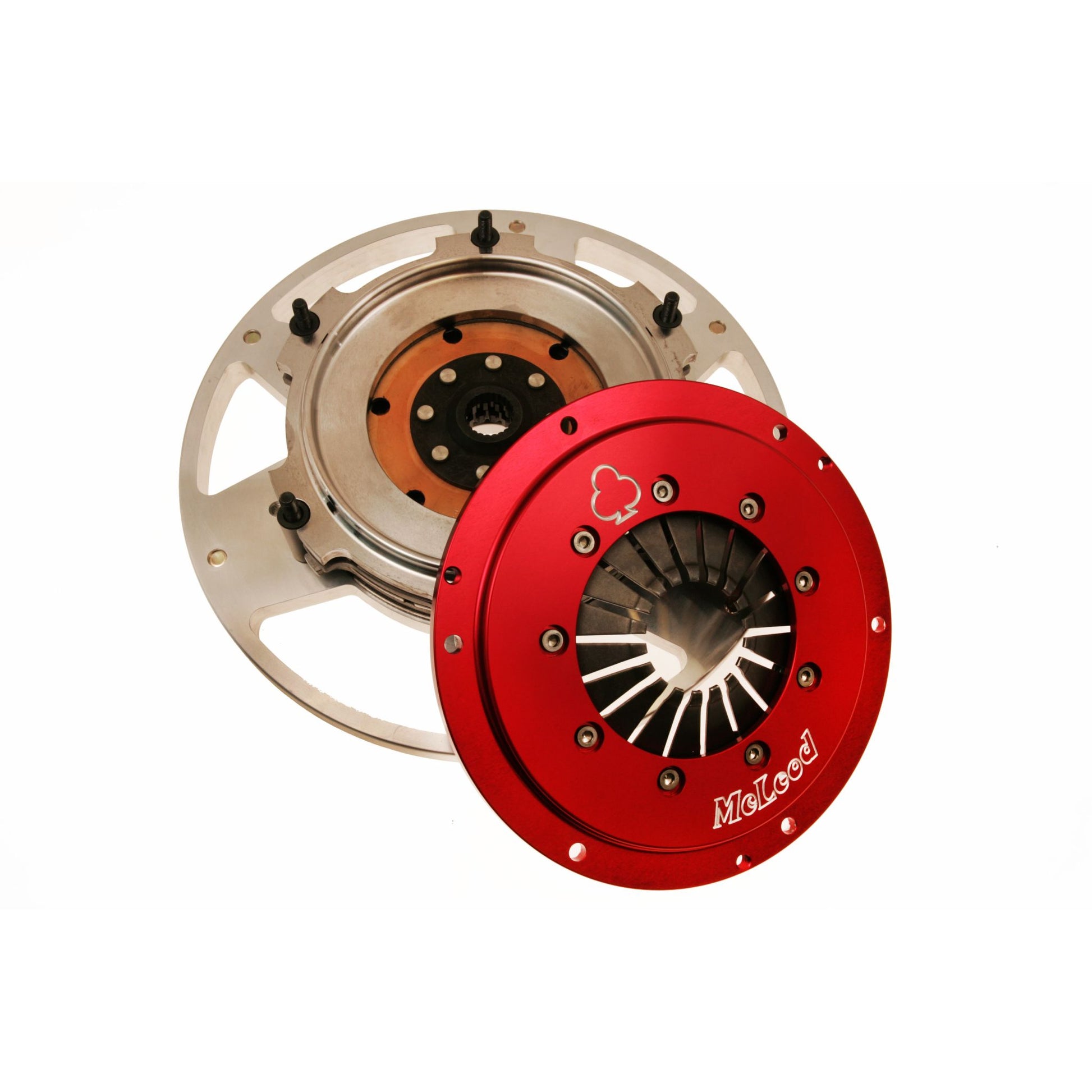

McLeod Mag Force:Single Disc: Pin Drive:Ford:1963-95 SBF:0Bal:1-3/16x18:157T 651321-00-05

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753676429
• Brand Name: McLeod
• Alignment Tool Included: Yes
• Hardware Included: Yes
• Disc Diameter: 8In.
• Disc Material: Sintered Iron
• Disc Style: Segmented
• Engine: 1964-1995 SBF
• Engine Balance: For External Balance use 563333 Kit
• Flywheel Included: Yes
• Flywheel Material: Aluminum
• Balance: Internal Balance
• Number of Discs: Single
• Make: Ford
• Pilot Bushing Included: No
• Pilot Bushing Material: N/A
• Racing Application 3: Dry Lakes (Bonneville)
• Racing Application 2: Drifting
• Racing Application: Road Race & Slalom Racing
• Ring Gear: 157 tooth
• Spline: 1-3/16 x 18
• Throwout Bearing Included: No
• Throwout Bearing Style: Standard

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 19 lb
