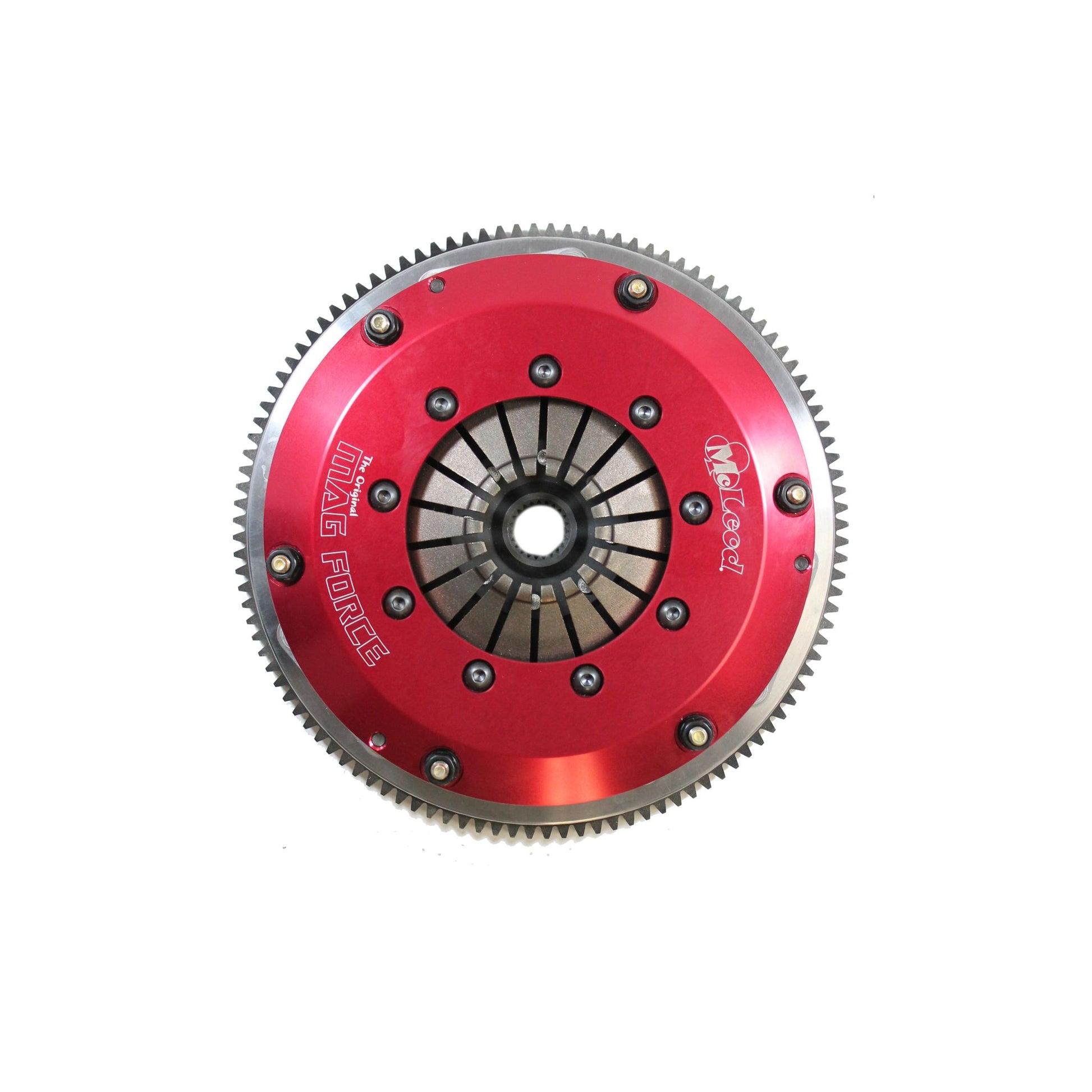

McLeod Mag Force:Triple Disc: Pin Drive:Ford:1963-95 SBF:0Bal:1-1/16x10:157T 651323-00-03

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753673589
• Brand Name: McLeod
• Alignment Tool Included: Yes
• Make: Ford
• Throwout Bearing Included: No
• Spline: 1 1/16In. x 10
• Ring Gear: 157 tooth
• Racing Application: Road Race & Slalom Racing
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Triple
• Hardware Included: Yes
• Balance: For Ext Balanced Also Order Weight Kit 560222
• Flywheel Material: Aluminum
• Flywheel Included: Yes
• Engine Balance: Internal Balance
• Engine: 1964-1995 SBF
• Disc Style: Puck Style
• Disc Material: Sintered Iron
• Disc Diameter: 8In.
• Clutch Usage: Drifting
• Throwout Bearing Style: Standard

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 22 lb
