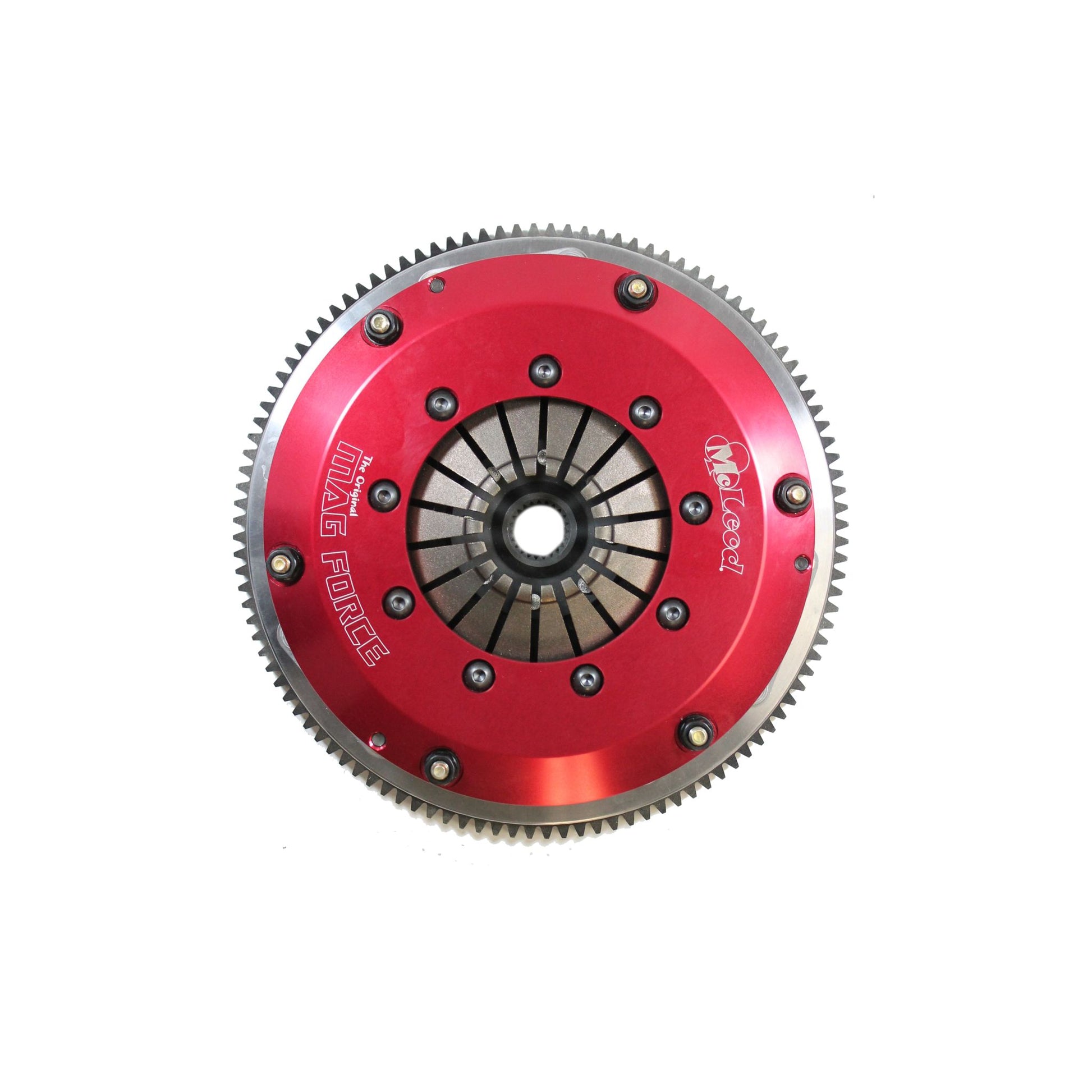

McLeod Mag Force:Triple Disc:Pin Drive:Ford:1969-98 BBF 429/460:0Bal:1-1/8x26:176T 651353-00-07

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753675071
• Brand Name: McLeod
• Make: Ford
• Engine: 1969-1978 BBF
• Ring Gear: 176 tooth
• Spline: 1 1/8In. x 26
• Racing Application: Road Race & Slalom Racing
• Racing Application 2:: Drifting
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Triple
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Hardware Included: Yes
• Engine Balance: Internal Balance
• Balance: For Ext Balanced Also Order Weight Kit 563333
• Flywheel Material: Aluminum
• Flywheel Included: Yes
• Disc Material: Sintered Iron
• Disc Diameter: 8In.
• Throwout Bearing Style: Standard
• NOTE:: Triple Disc units are not guaranteed to fit in a factory depth bell-housing. You may need to go to a aftermarket high gear can. For further info please call McLeod Tech 714-630-2764

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 27 lb
