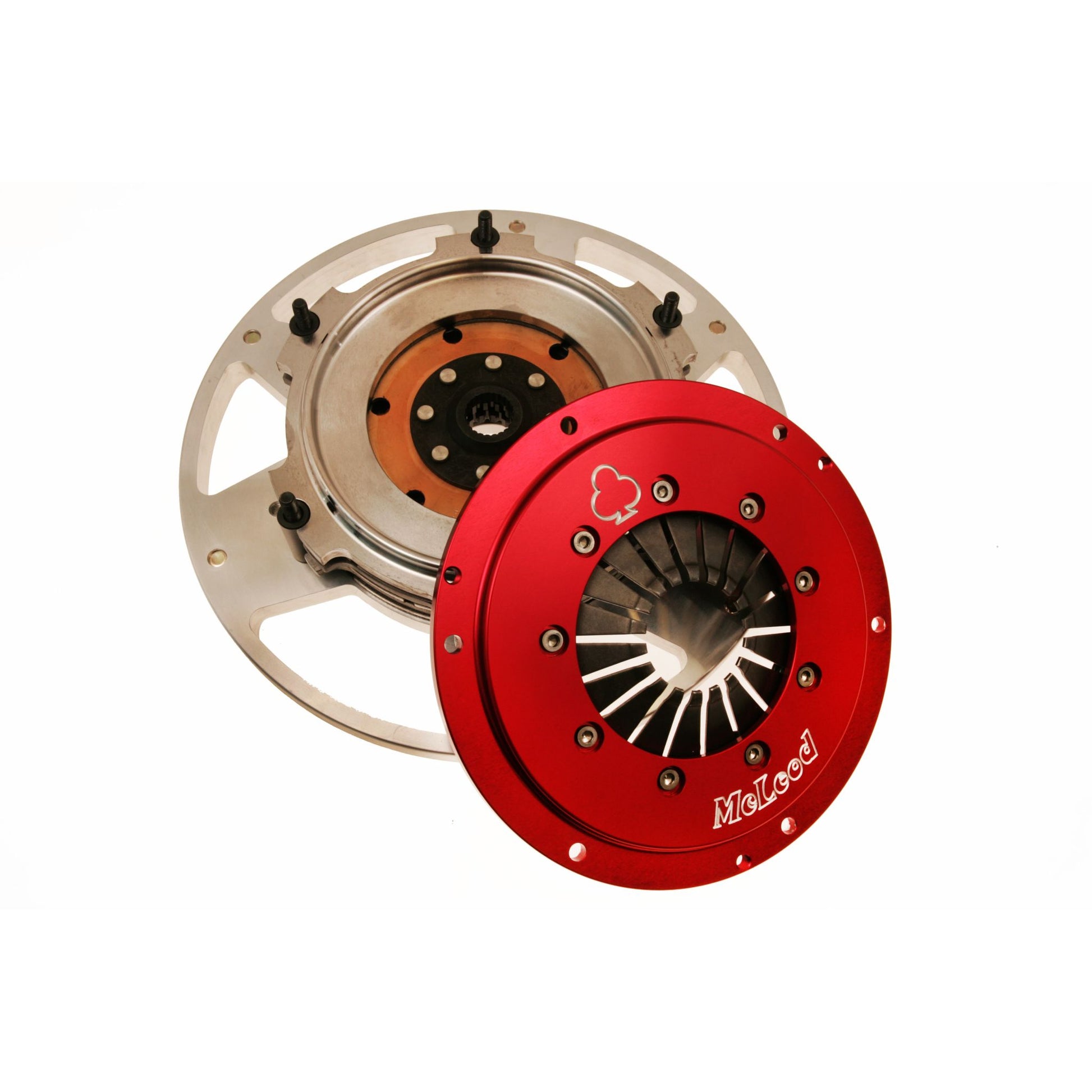

McLeod Mag ForceSE:Double Disc: Pin Drive:Chevy:1955-85 SBC:0Bal:1-1/8x26:168T 651022-00-07M

McLeod Racing’s 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753676344
• Brand Name: McLeod
• Alignment Tool Included: Yes
• Make: Chevrolet
• Throwout Bearing Included: No
• Spline: 1 1/8In. x 26
• Ring Gear: 168 tooth
• Racing Application: Road Race & Slalom Racing
• Racing Application 2: Drifting
• Racing Application 3: Dry Lakes (Bonneville)
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Double
• Hardware Included: Yes
• Balance: For Ext Balanced Also Order Weight Kit 560222
• Flywheel Material: Aluminum
• Flywheel Included: Yes
• Engine Balance: Internal Balance
• Engine: 1955-85 SBC 2pc Seal
• Engine 2: 1970-1990 BBC
• Engine 3: 1991-1999 BBC 1pc Seal
• Disc Style: Segmented
• Disc Material: Ceramic Puck
• Disc Diameter: 8In.
• Throwout Bearing Style: Standard

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 lb
