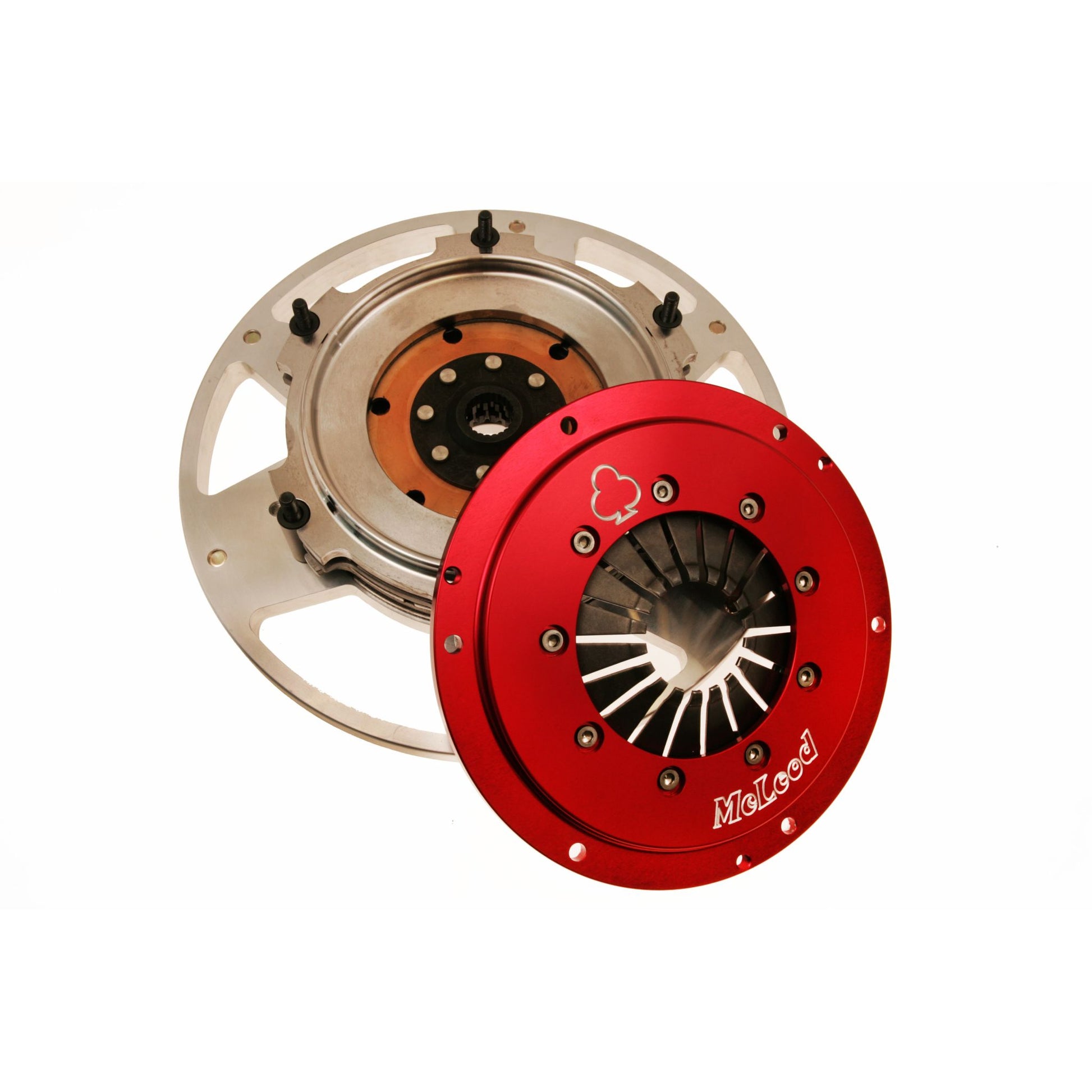

McLeod Mag ForceSE:Double Disc: Pin Drive:Chevy:1997-13 LS-X 6 Blt:0Bal:168T:1-1/8x26 651052-00-07M

McLeod Racing’s 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753314826
• Brand Name: McLeod
• Flywheel Included: Yes
• Engine Balance: Internal Balance
• Engine: 1997-2013 LS 1/2/3/6/7
• Disc Style: Segmented
• Disc Material: Sintered Iron
• Disc Diameter: 8In.
• Throwout Bearing Style: Standard
• Alignment Tool Included: Yes
• Make: Chevrolet
• Throwout Bearing Included: No
• Spline: 1 1/8In. x 26
• Ring Gear: 168 tooth
• Racing Application: Road Race & Slalom Racing
• Racing Application 2: Drifting
• Racing Application 3: Dry Lakes (Bonneville)
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Double
• Hardware Included: Yes
• Flywheel Material: Aluminum

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 lb
