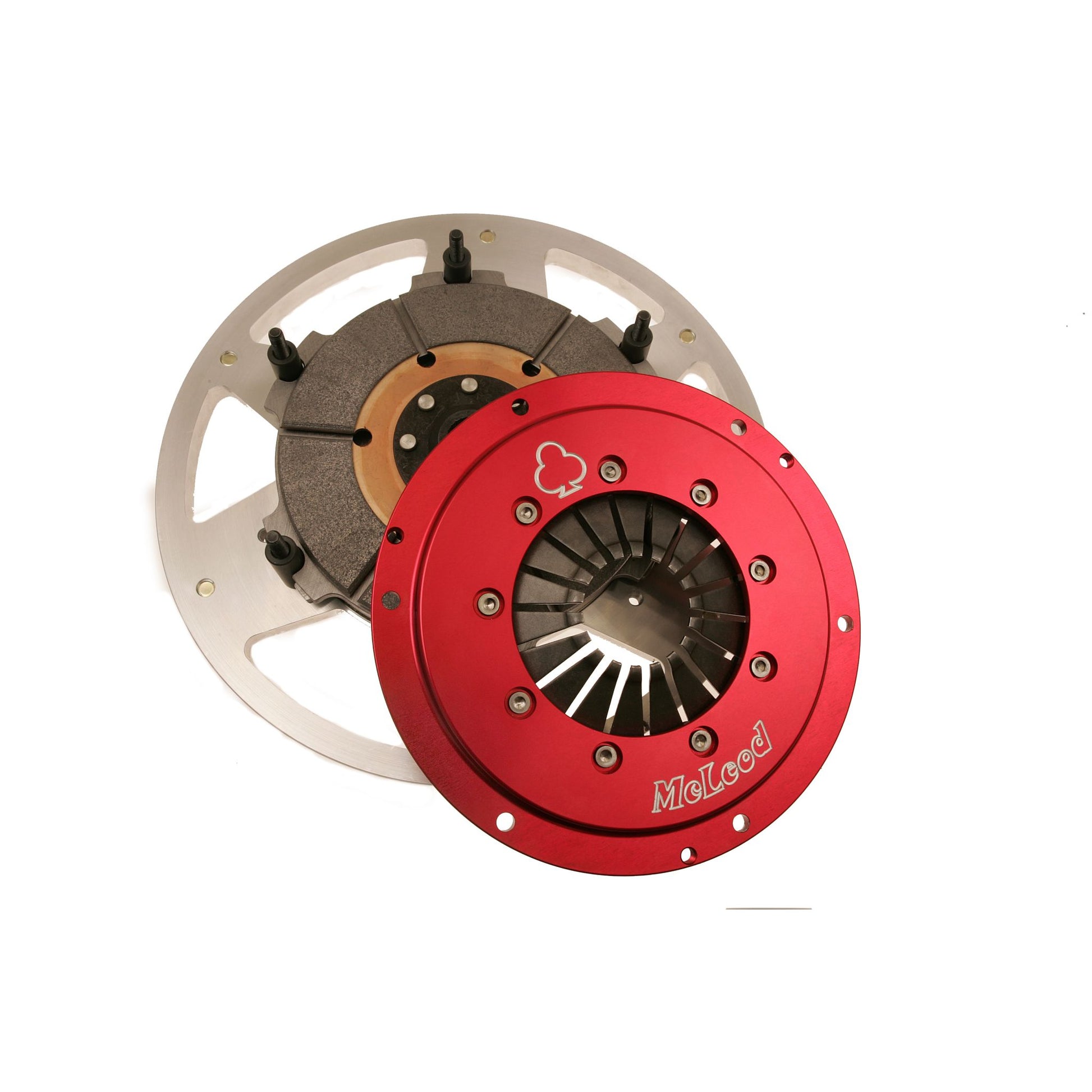

McLeod Mag ForceSE:Double Disc:Pin Drive:Ford:1996-17 Mod:8blt crnk:0Bal:1-1/8x26:164T 651382-00-07M

McLeod Racing’s 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753314932
• Brand Name: McLeod
• Make: Ford
• Engine: 1996-2017 4.6L/5.0L/5.4L Modular with 8 Bolt Crank
• Torque Rating: 900 Ft. lbs.
• Spline: 1-1/8 x 26
• Additional Counter Weight Kit Required: N/A
• Ring Gear: 164 Tooth
• Pressure Plate Style: Diaphragm
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Double
• Hub Style: Solid
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Flywheel Material: Aluminum
• Flywheel Included: Yes
• Engine Balance: Internal Balance
• Disc Style: Segmented
• Disc Material: Ceramic
• Disc Diameter: 8In.
• Throwout Bearing Included: No
• Clutch Usage: Drifting,Land Speed, Road Race

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 21 lb
