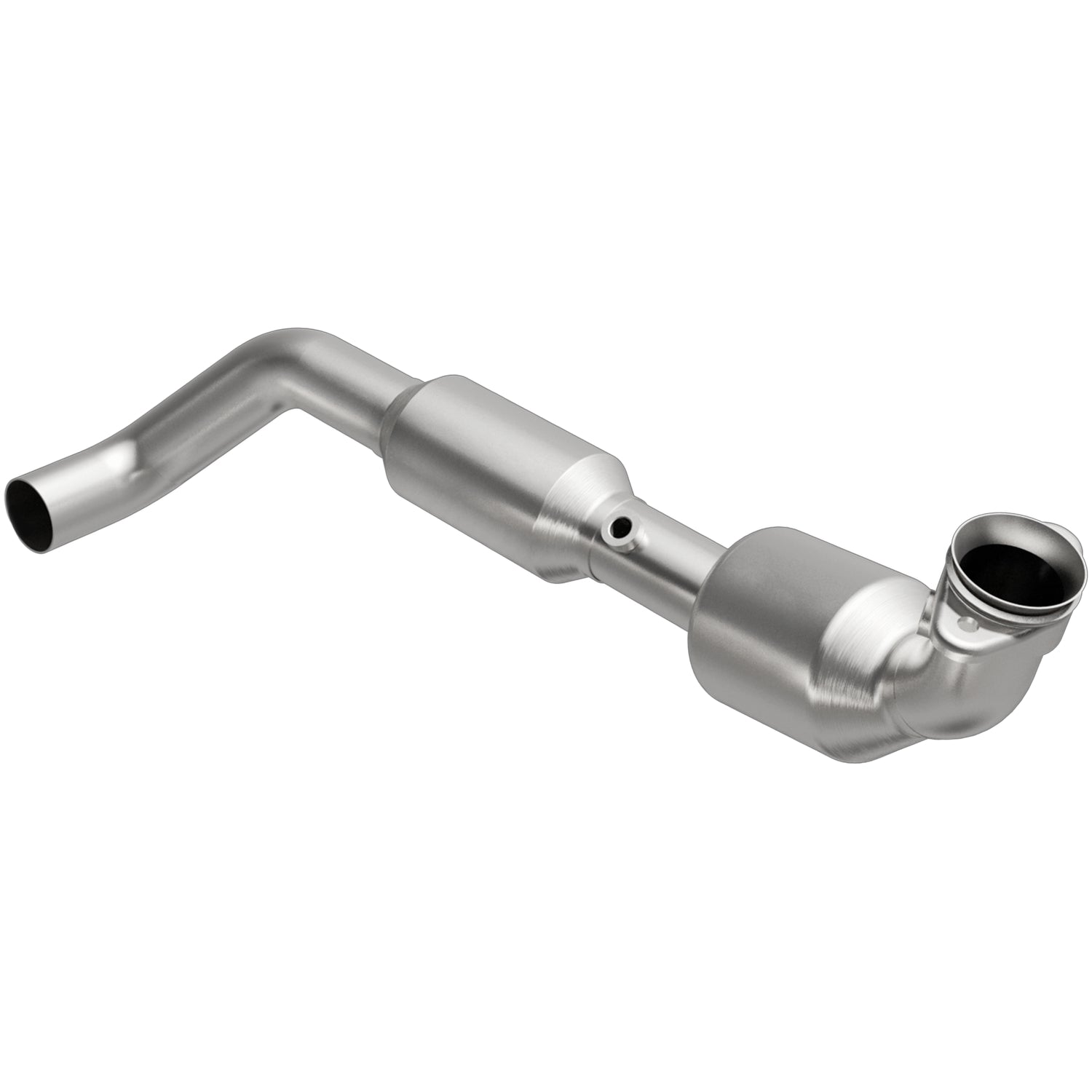

MagnaFlow 2004-2005 Ford F-150 California Grade CARB Compliant Direct-Fit Catalytic Converter MAGNAFLOW-5481705

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5481705. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2004-2005 Ford F-150. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.

Attributes:

• GTIN: 00888563155401
• Brand Name: MagnaFlow Exhaust Products
• Sensor Port Count: 2
• Clamps Included: No
• Body Width Position Rear: 4
• Body Width Position Front: 5
• Body Type: Spun
• Outlet Type: Clamp-On
• Outlet Inside Diameter: 2.5
• Inlet Type: Bolt-On
• Body Length Position Rear: 9
• Body Length Position Front: 7.875
• Body Height Position Rear: 4
• Oxygen Sensor Location: Pre and Post Converter
• Air Tube Adaptable: No
• Body Material: Stainless Steel
• Body Shape: Round
• Substrate Material: Ceramic
• Overall Length: 33.875
• Tube Material: Stainless Steel
• Outlet Quantity: 1
• Outlet Mounting Hardware Included: No
• Inlet Gasket Included: No
• Inlet Quantity: 1
• Air Tube Count: 0
• Outlet Gasket Included: No
• Type: Direct-Fit
• Heat Shield Material: None
• Inlet Inside Diameter: 2.625
• Series: California
• Heat Shield Attached: No
• Grade Type: Regular
• Universal Or Specific Fit: Specific
• Body Height Position Front: 5
• Inlet Mounting Hardware Included: No
• Hangers Included: No
• Finish: Stainless Steel

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34.5 x 18 x 9.25 inches
• Weight: 10 lb
