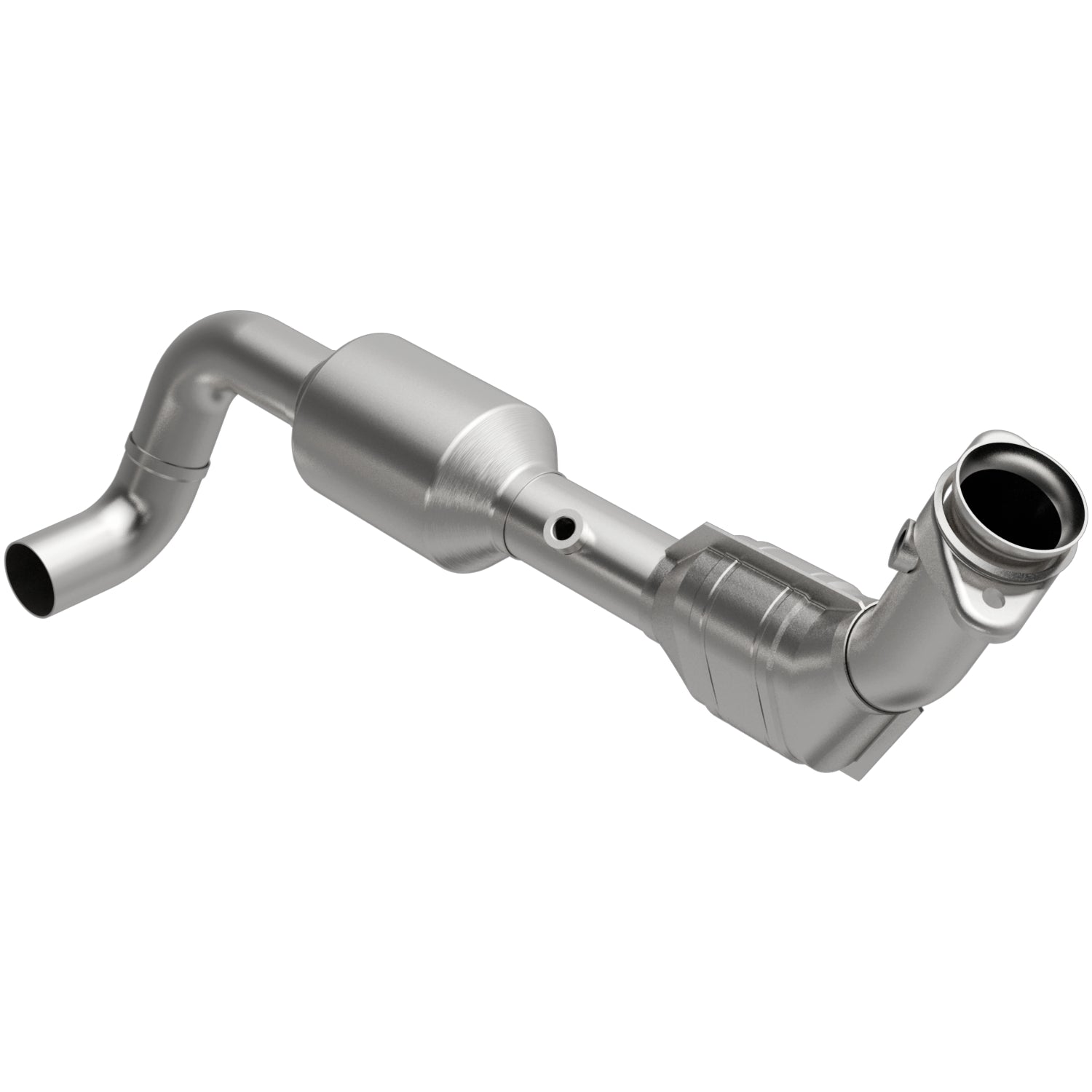

MagnaFlow 2004-2006 Ford F-150 OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter MAGNAFLOW-52449

Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52449. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2004-2006 Ford F-150 and interchanges with OE parts 4L3Z-5E212-KC and 5L3Z-5E212-PA. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.

Attributes:

• GTIN: 00888563153148
• Brand Name: MagnaFlow Exhaust Products
• Body Length Position Rear: 9
• Body Shape Position Front: Oval
• Body Shape Position Rear: Round
• Outlet Type: Clamp-On
• Outlet Inside Diameter: 2.5
• Body Type Position Front: Clam Shell
• Inlet Type: Bolt-On
• Body Width Position Front: 6.375
• Body Width Position Rear: 5
• Oxygen Sensor Location: Pre and Post Converter
• Air Tube Adaptable: No
• Body Material: Stainless Steel
• Substrate Material: Ceramic
• Overall Length: 32.625
• Outlet Quantity: 1
• Tube Material: Stainless Steel
• Outlet Mounting Hardware Included: No
• Inlet Quantity: 1
• Inlet Gasket Included: No
• Outlet Gasket Included: No
• Air Tube Count: 0
• Series: OEM Grade
• Heat Shield Material: None
• Inlet Inside Diameter: 2.5
• Universal Or Specific Fit: Specific
• Heat Shield Attached: No
• Grade Type: Regular
• Type: Direct-Fit
• Inlet Mounting Hardware Included: No
• Body Height Position Front: 3.5
• Body Type Position Rear: Spun
• Hangers Included: No
• Finish: Stainless Steel
• Sensor Port Count: 2
• Body Height Position Rear: 5
• Clamps Included: No
• Body Length Position Front: 7.75

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 44 x 10 x 8 inches
• Weight: 15 lb
