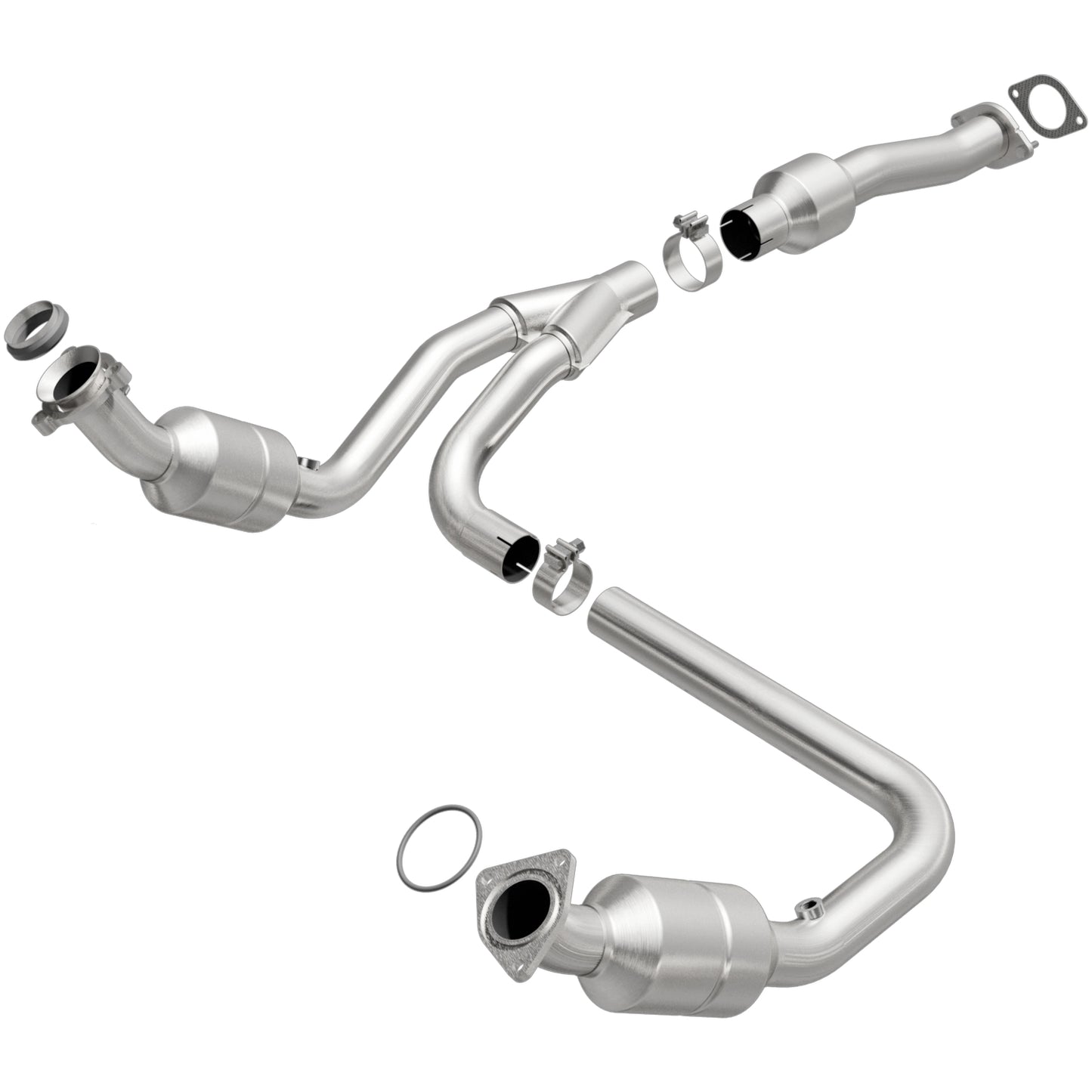

MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5481134 MAGNAFLOW-5481134

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5481134. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed to fit the 2009-2014 Chevrolet Express 1500 and 2009-2014 GMC Savana 1500. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.

Attributes:

• GTIN: 00888563155319
• Brand Name: MagnaFlow Exhaust Products
• Sensor Port Count: 4
• Inlet Mounting Hardware Included: No
• Clamps Included: Yes
• Body Type: Spun
• Outlet Type: Bolt-On
• Outlet Inside Diameter: 3
• Inlet Type: Bolt-On
• Body Length Position Rear: 6.25
• Body Length Position Front: 9
• Oxygen Sensor Location: Pre and Post Converter
• Air Tube Adaptable: No
• Body Material: Stainless Steel
• Body Width: 5
• Body Shape: Round
• Substrate Material: Ceramic
• Overall Length: 63.5
• Outlet Quantity: 1
• Tube Material: Stainless Steel
• Outlet Mounting Hardware Included: No
• Air Tube Count: 0
• Inlet Quantity: 2
• Inlet Gasket Included: Yes
• Type: Direct-Fit
• Outlet Gasket Included: Yes
• Heat Shield Material: None
• Series: California
• Inlet Inside Diameter: 2.5
• Body Height: 5
• Heat Shield Attached: No
• Grade Type: Regular
• Universal Or Specific Fit: Specific
• Finish: Stainless Steel
• Hangers Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 49 x 14.125 x 24.75 inches
• Weight: 33 lb
