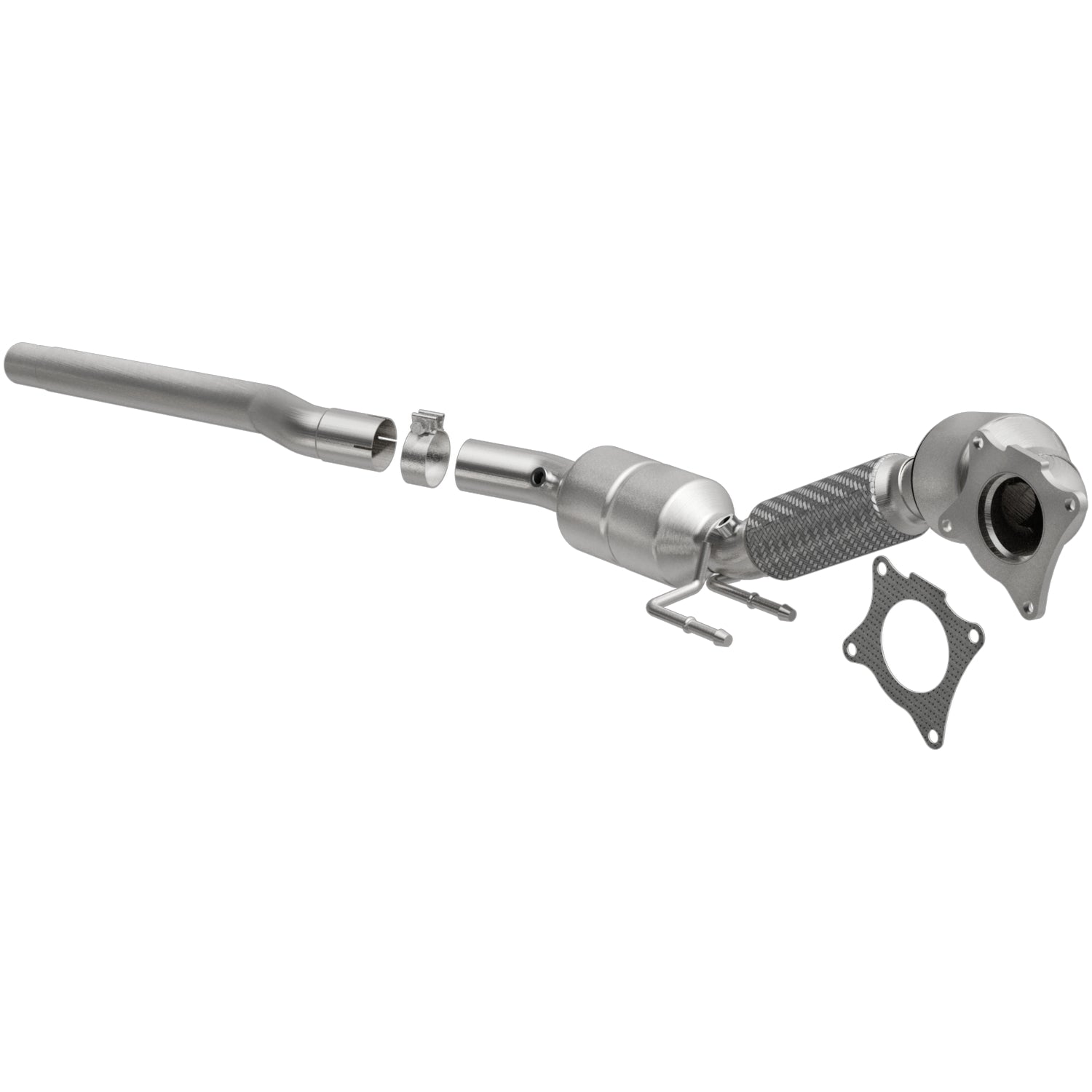

MagnaFlow OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 52380 MAGNAFLOW-52380

Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52380. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2009-2017 Volkswagen CC and 2010 Volkswagen Passat, this direct-fit catalytic converter also interchanges with OE part 3C0 254 506 EX. Hardware is included to eliminate the hassle of working with corroded factory parts. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.

Attributes:

• GTIN: 00888563069098
• Brand Name: MagnaFlow Exhaust Products
• Air Tube Adaptable: No
• Body Material: Stainless Steel
• Body Width: 5
• Body Shape: Round
• Substrate Material: Ceramic
• Overall Length: 65.375
• Outlet Quantity: 1
• Tube Material: Stainless Steel
• Outlet Mounting Hardware Included: No
• Air Tube Count: 0
• Inlet Gasket Included: No
• Inlet Quantity: 1
• Type: Direct-Fit
• Outlet Gasket Included: No
• Heat Shield Material: None
• Inlet Inside Diameter: 3
• Series: OEM Grade
• Body Height: 5
• Heat Shield Attached: No
• Grade Type: Regular
• Universal Or Specific Fit: Specific
• Inlet Mounting Hardware Included: No
• Hangers Included: Yes
• Sensor Port Count: 2
• Finish: Stainless Steel
• Clamps Included: Yes
• Body Type: Spun
• Outlet Type: Clamp-On
• Outlet Inside Diameter: 2.5
• Inlet Type: Bolt-On
• Body Length Position Rear: 9
• Body Length Position Front: 7.375
• Oxygen Sensor Location: Pre and Post Converter

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40.75 x 17.75 x 7.25 inches
• Weight: 16 lb
