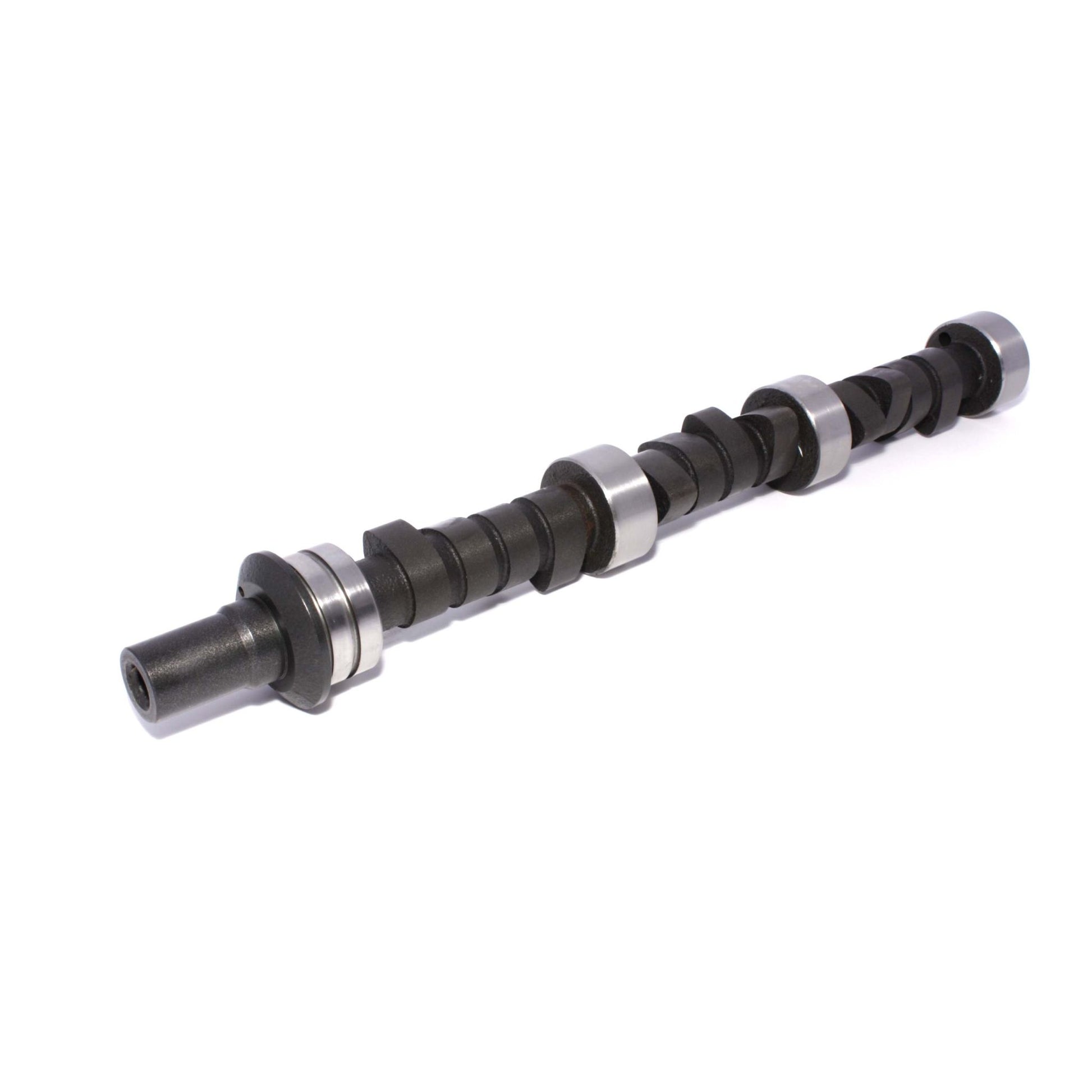

COMP Cams Magnum 226/226 Hydraulic Flat Cam for Ford 2000-2300 4 Cylinder COMP-70-127-6

Attributes:

• GTIN: 00036584191216
• Brand Name: COMP Cams
• Camshaft Series: Magnum
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 268H
• Basic Operating RPM Range: 1,500-5,500
• Intake Duration at .050 Inch Lift: 226
• Exhaust Duration at .050 inch Lift: 226
• Advertised Intake Duration: 272
• Advertised Exhaust Duration: 272
• Lobe Separation: 110
• Intake Valve Lift: 0.44
• Exhaust Valve Lift: 0.44
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Ford 2000-2300 cc OHC 4 Cylinder 4 Journal (1971-1991)
• Cam and Lifter Kit Upgrade: CL70-127-6
• Lifter Type: Hydraulic Flat Tappet
• Amazon ASIN: B004SFQVEC
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4 x 2.75 x 2 inches
• Weight: 7.12 lb
