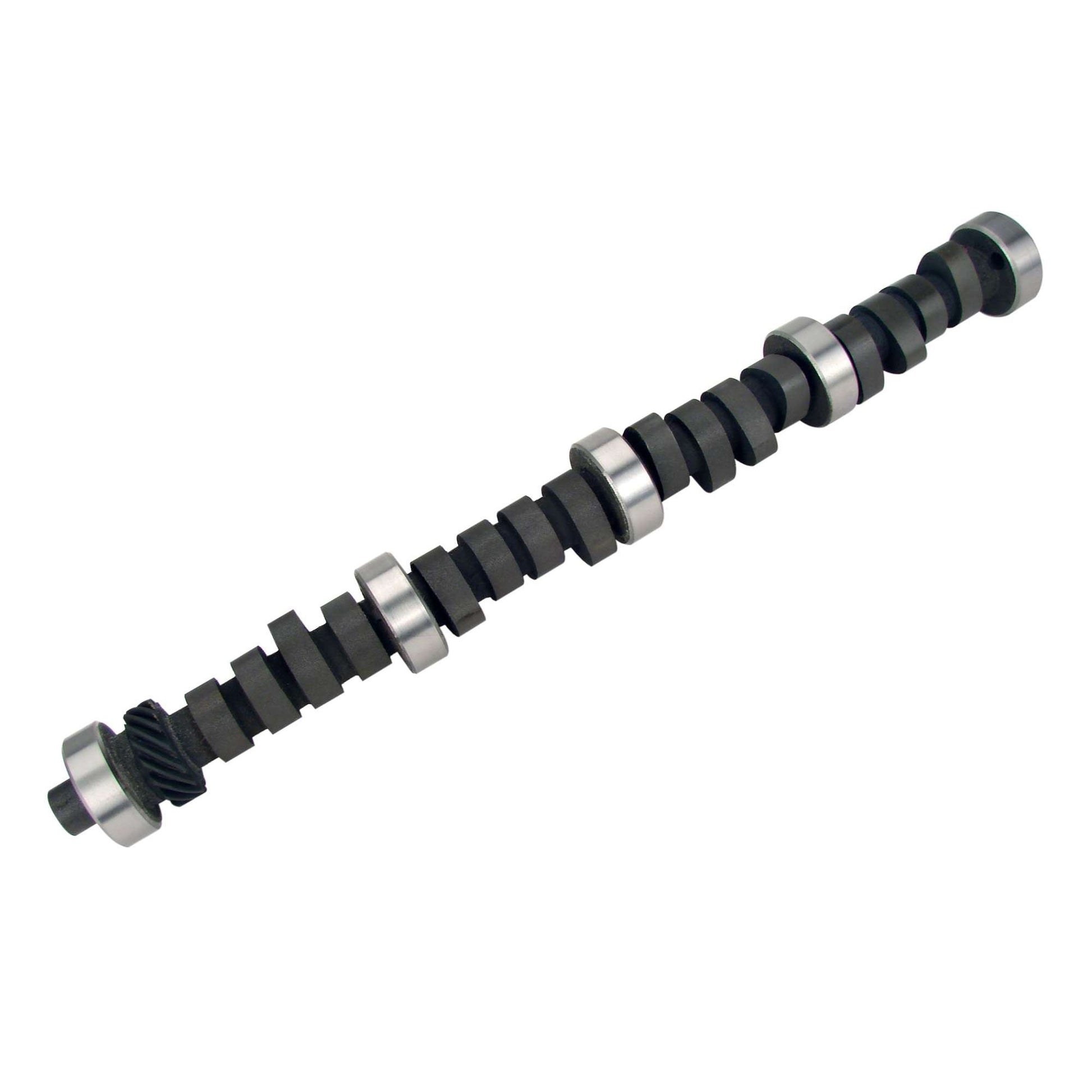

COMP Cams Magnum 244/244 Hydraulic Flat Cam for Ford 221-302 COMP-31-330-3

Attributes:

• GTIN: 00036584520078
• Brand Name: COMP Cams
• Camshaft Material: Cast Iron
• Engine Family: Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
• Cam and Lifter Kit Upgrade: CL31-330-3
• K-Kit Upgrade: K31-330-3
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK31-330-3
• Amazon ASIN: B000CESFME
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Magnum
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 292H
• Basic Operating RPM Range: 2,500-6,500
• Intake Duration at .050 Inch Lift: 244
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 292
• Advertised Exhaust Duration: 292
• Lobe Separation: 110
• Intake Valve Lift: 0.534
• Exhaust Valve Lift: 0.534
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.6 inches
• Weight: 9.3476 lb
