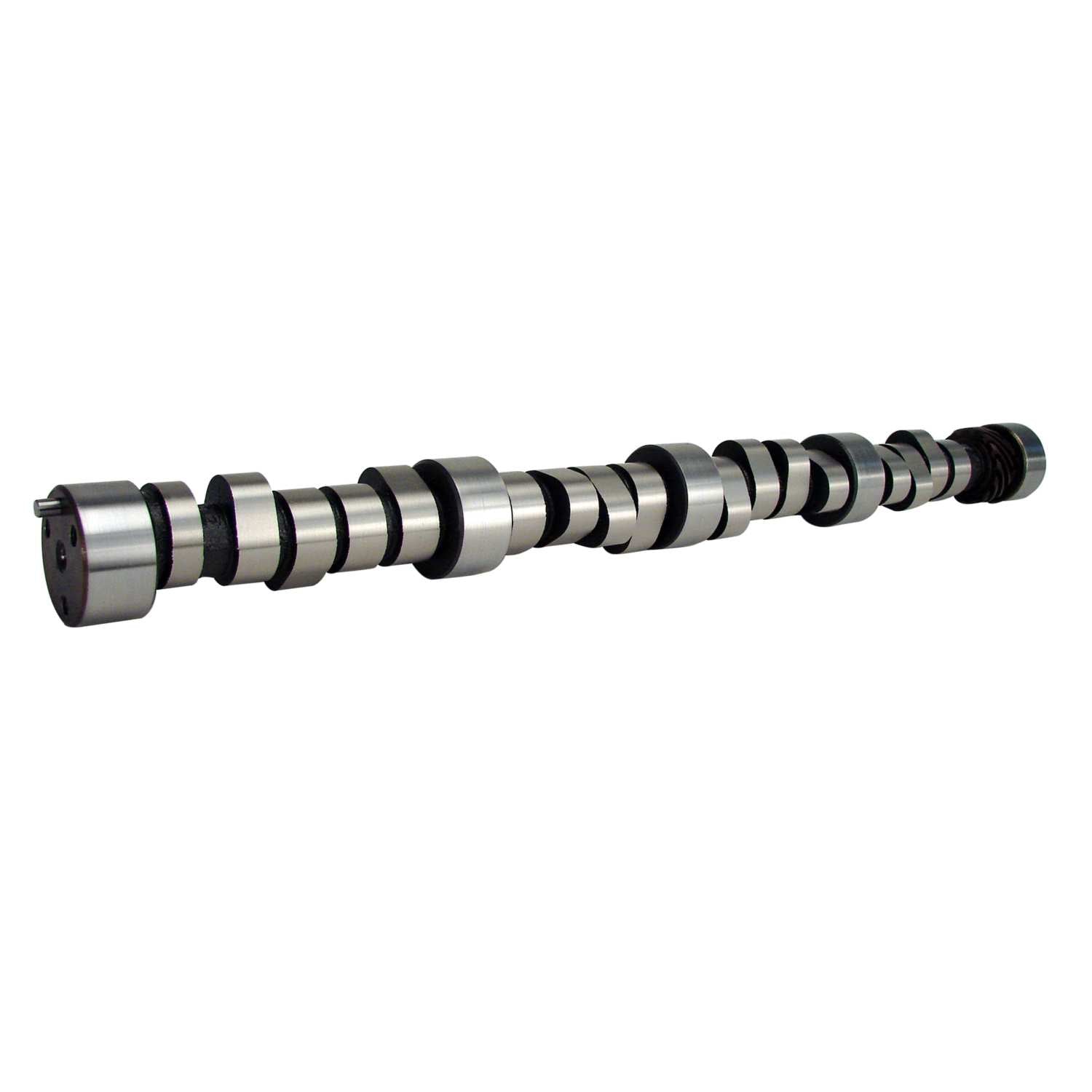

COMP Cams Magnum 246/246 Solid Roller Cam for Chevrolet Big Block 396-454 COMP-11-692-8

Attributes:

• GTIN: 00036584590033
• Brand Name: COMP Cams
• Camshaft Series: Magnum
• Usage: Street/Strip
• Cam Type: Solid Roller
• Grind Number: 288AR
• Basic Operating RPM Range: 2,200-6,500
• Intake Duration at .050 Inch Lift: 246
• Exhaust Duration at .050 inch Lift: 246
• Advertised Intake Duration: 288
• Advertised Exhaust Duration: 288
• Lobe Separation: 110
• Intake Valve Lift: 0.623
• Exhaust Valve Lift: 0.623
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Cam and Lifter Kit Upgrade: CL11-692-8
• K-Kit Upgrade: K11-692-8
• Lifter Type: Solid Roller
• SK-Kit Upgrade: SK11-692-8
• Amazon ASIN: B001NET06C
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.91 x 2.59 inches
• Weight: 10.2 lb
