COMP Cams Magnum Marine/Drag Race 270/276 Solid Flat SK-Kit Chevrolet Big Block 396-454 COMP-SK11-605-5

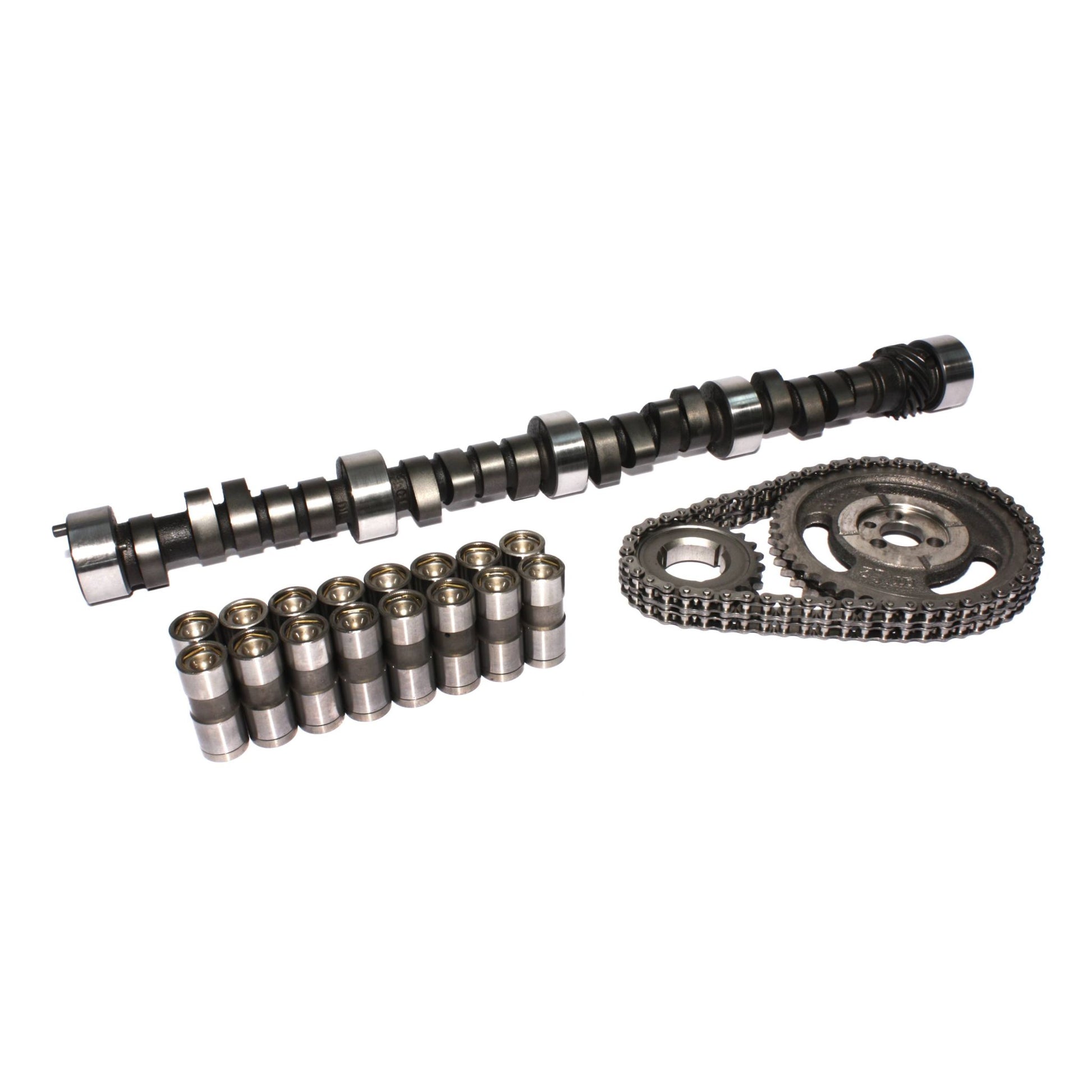

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.

Attributes:

• GTIN: 00036584079712
• Brand Name: COMP Cams
• Kit Type: SK-Kit - Small Kit
• Camshaft Series: Magnum Marine
• Usage: Marine
• Cam Type: Solid Flat Tappet
• Basic Operating RPM Range: 4,200-7200
• Intake Duration at .050 Inch Lift: 270
• Exhaust Duration at .050 inch Lift: 276
• Advertised Intake Duration: 310
• Advertised Exhaust Duration: 314
• Lobe Separation: 108
• Intake Valve Lift: 0.638
• Exhaust Valve Lift: 0.631
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Solid Flat Tappet
• Timing Chain and Gears Included: Yes
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Amazon ASIN: B001GF5EFE
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.5 x 10.25 x 5 inches
• Weight: 22 lb
