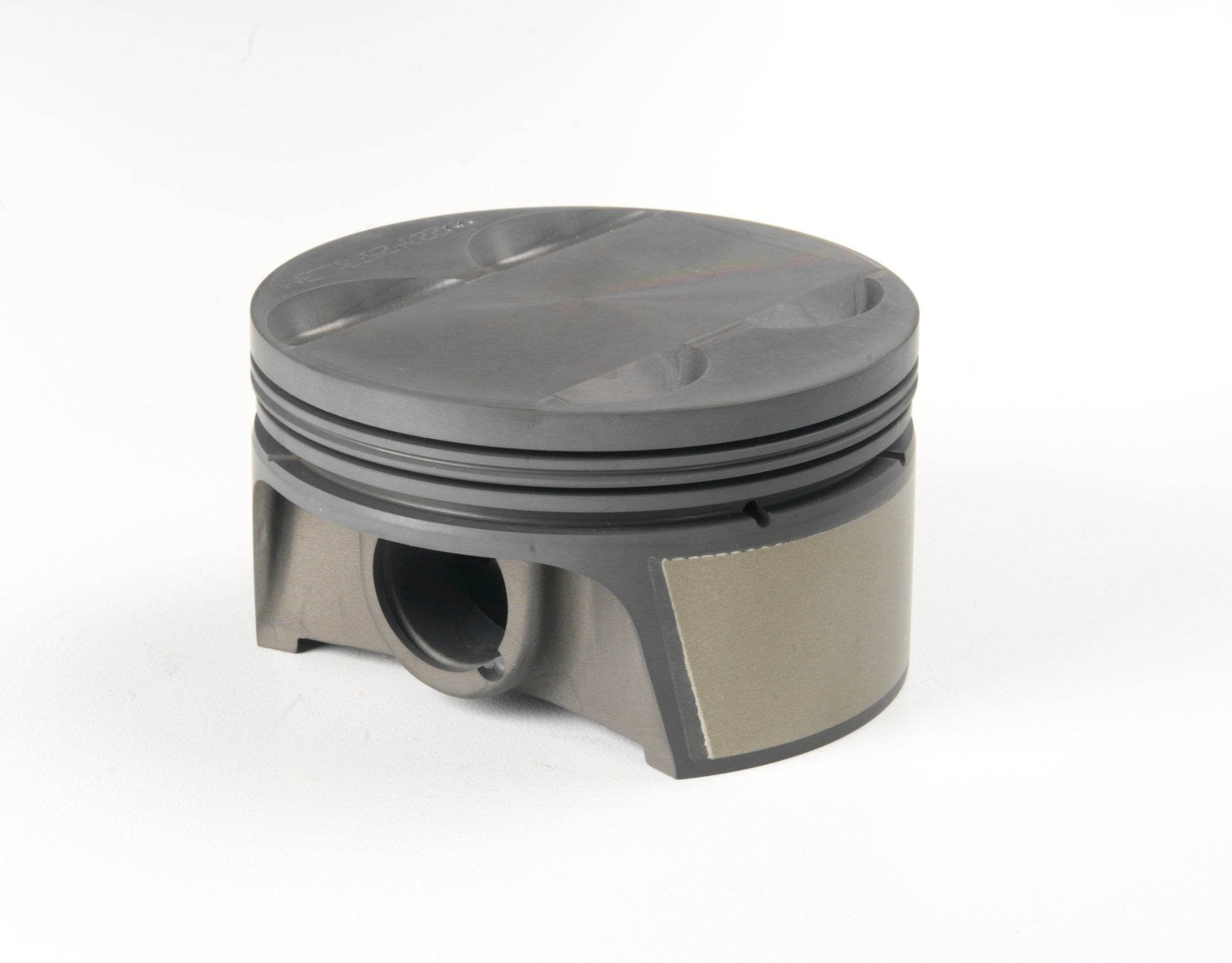

Mahle Motorsport HONDA H22 GOLD SERIES 2.2L- FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY 87.00mm x 31mm CH 90.7mm stroke143mm rod22mm pin-1.0cc309g10.0CR 4032 930082325

Attributes:

• GTIN:
• Brand Name: Mahle Motorsport
• Clip Style: Round Wire
• Clips Included: Yes
• Coatings: Phosphate Plus Ferroprint (FRM bores)
• Crown Vol: -1.0cc
• Package Qty: Sold as a set of 4
• Pin Diameter: 0.866
• Pin Length: 2.047
• Pin Mass: 101g
• Pin Material: Steel
• Pin Style: Floating
• Pins Included: Yes
• Piston Mass: 309g
• Piston Material: Forged, 4032
• Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
• Piston Style: Dome, w/ 4 valve reliefs
• Rings Included: Yes

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 8.5000 x 9.2500 x 4.2500 inches
• Weight: 8.0000 lb
