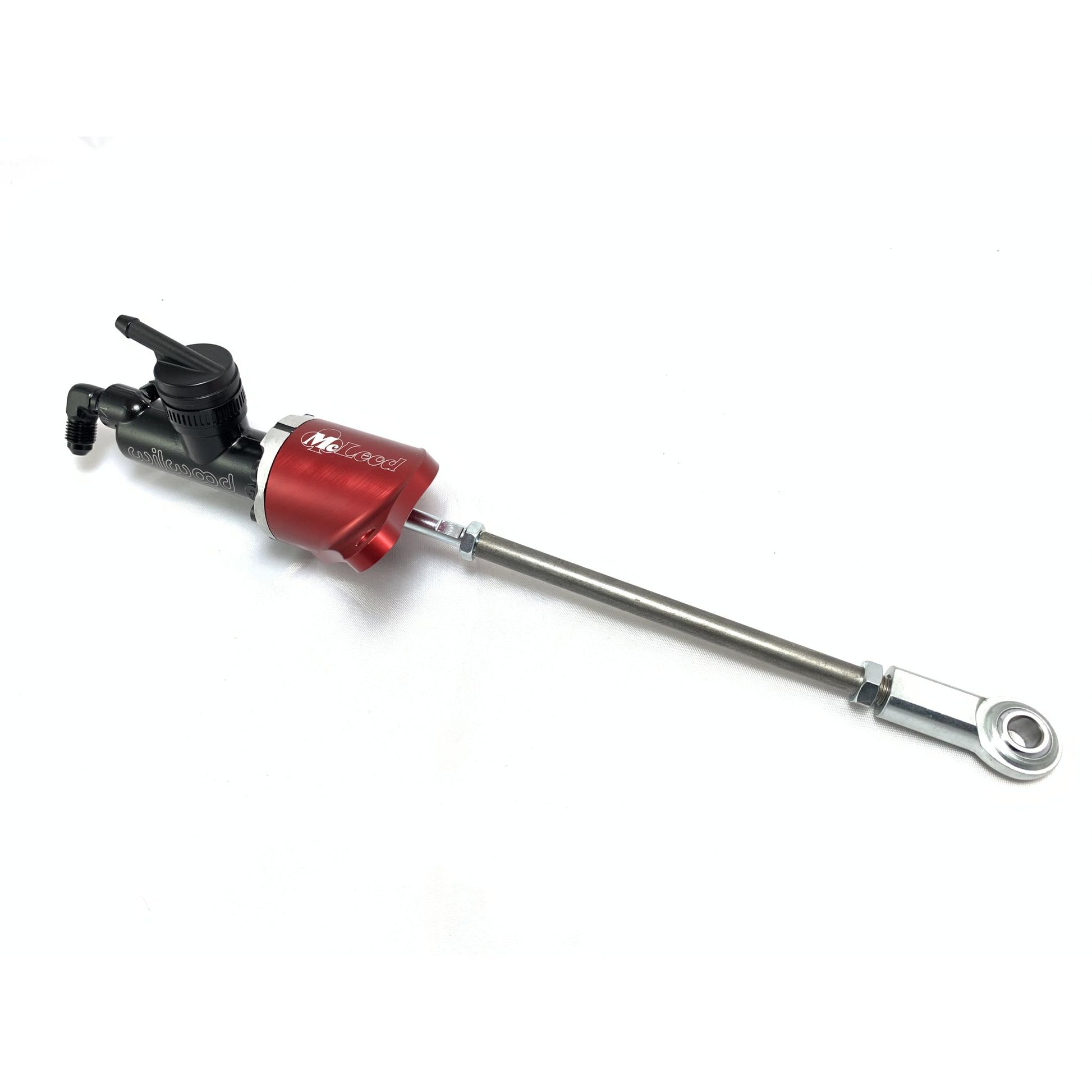

McLeod Master Cylinder,Aluminum, Black, .750 In. Bore, 8 hole flange 139310

McLeod Racing 3/4" bore master cylinders are made exclusively by Wilwood Engineering. The compact remote mount clutch master cylinders are precision-machined from high-strength aluminum. They have been designed for limited space applications requiring the output capacity of a full size master cylinder. They can be mounted directly onto the master cylinder, or remotely mounted for more convenient service access. A 8 hole flange bolts to a proprietary McLeod Billet aluminum mounting flange to provide easy installation in any vehicle.

Attributes:

• GTIN: 00887753016799
• Brand Name: McLeod
• Application: Universal
• Bore Size: 3/4In. Bore
• Area (in): 0.440
• Stroke: 1.12In.
• Volume (cu in): 0.49
• Type: Single Outlet
• Outlets: 1
• Material: Aluminum
• Finish: Black E- Coat
• Rod Thread: 5-16In.-24

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 14.5 x 3.25 inches
• Weight: 3 lb
