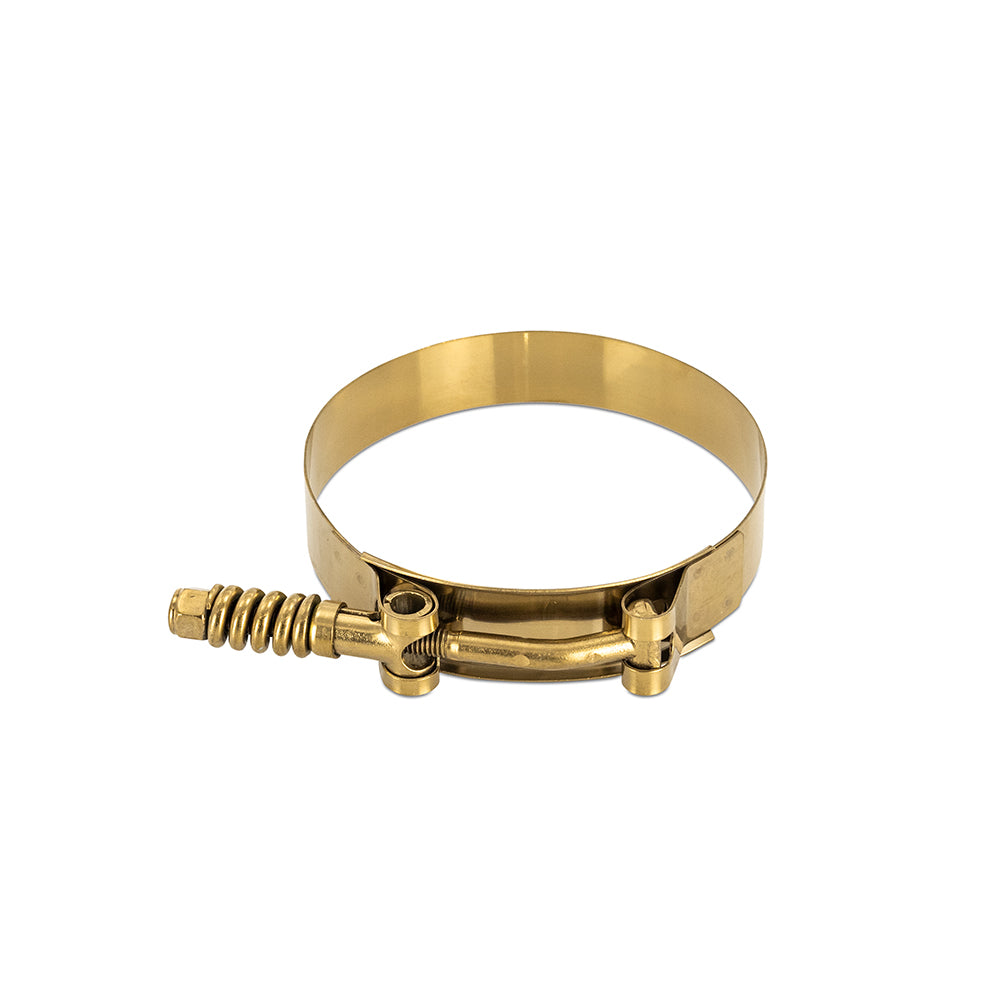

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, 4.25-in, Gold MMCLAMP-425TGD

Mishimoto’s Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 4.09" - 4.41" (104mm - 112mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps, these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps, this 4.09" - 4.41" (104mm - 112mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

Attributes:

• GTIN: 00840197707166
• Brand Name: Mishimoto
• TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
• TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
• TechSpec Band Width (in): 0.75
• TechSpec SAE Number: 102
• TechSpec Note: N/A
• SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 4.09- 4.41-in (104mm-112mm)
• SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
• SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
• SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
• SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
• TechSpec Clamp Style: Constant Tension T-Bolt Clamp
• TechSpec Minimum Clamp Diameter (in): 4.09
• TechSpec Maximum Clamp Diameter (in): 4.41
• TechSpec Material: Stainless Steel
• SellingPoint06: Clamps sold individually
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5 x 4.5 x 1 inches
• Weight: 1 lb
