1 5

Modular Truss End

Modular Truss End

Artec Industries

Part #
TR0004
UPC #
816791026972

$179.99 USD
$179.99 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Modular Truss End

Upgrade your Modular Truss

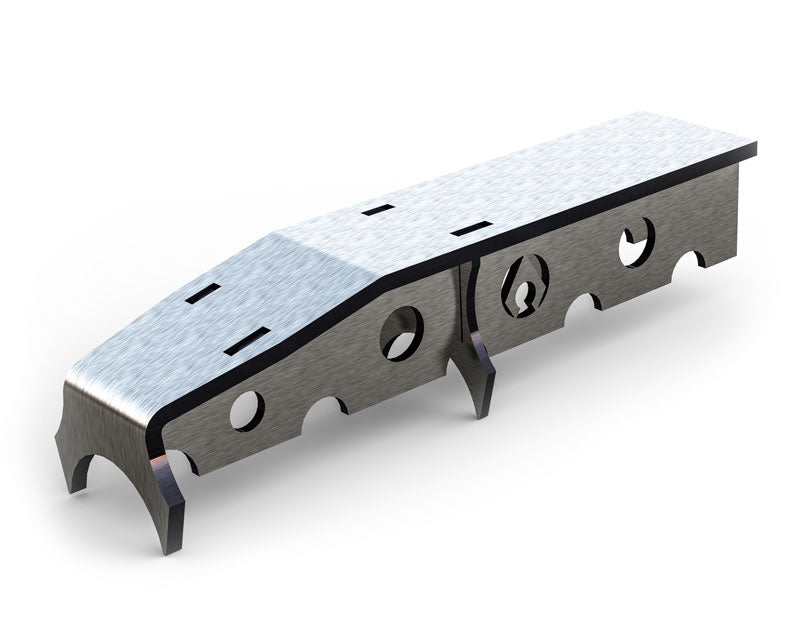

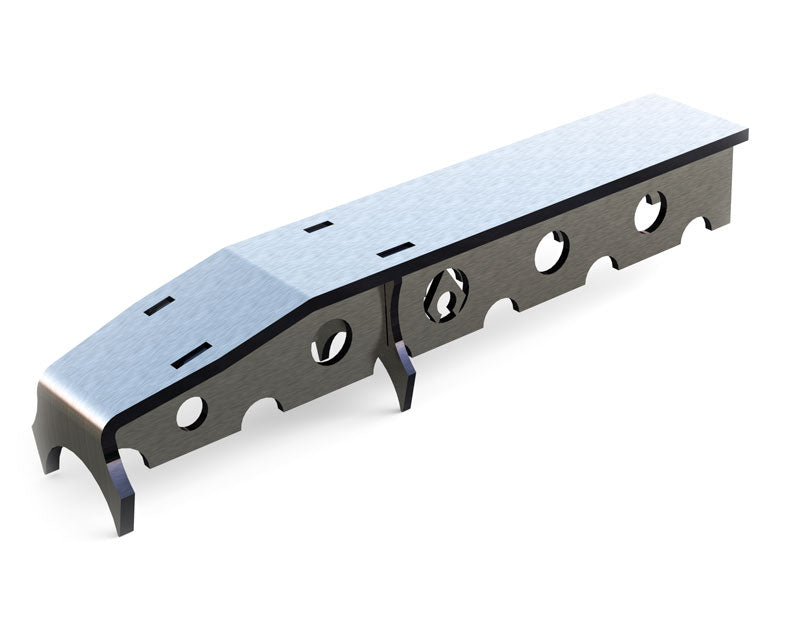

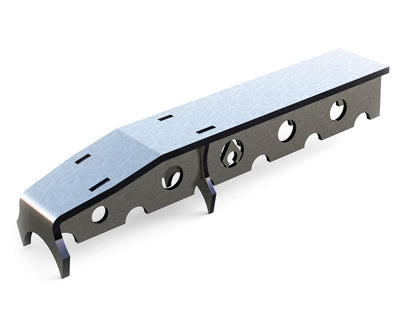

Artec Industries is excited to announce the NEW Modular Truss Ends. This product is designed to complement our Modular and Short Trusses enabling them to GROW UP and be full width trusses. Simply trim the end of this product to match the contours of ANY short style truss and you have a full width truss at hand. The design is borrowed from our NEW Low Profile Front Trusses and gives you a more compact truss that doesn't get in the way of other vehicle components. The 3/8" thick truss top and 1/4" thick gussets incorporate a unique design to strengthen the axle and provide a link mounting surface or bumpstop pad.

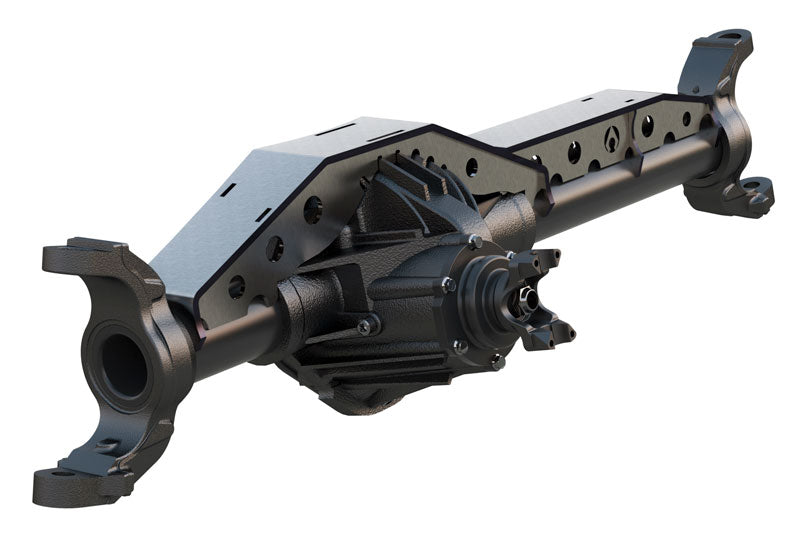

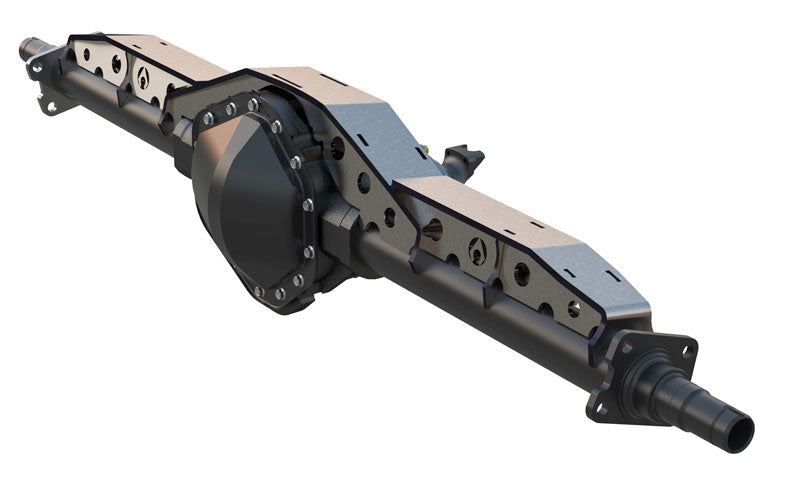

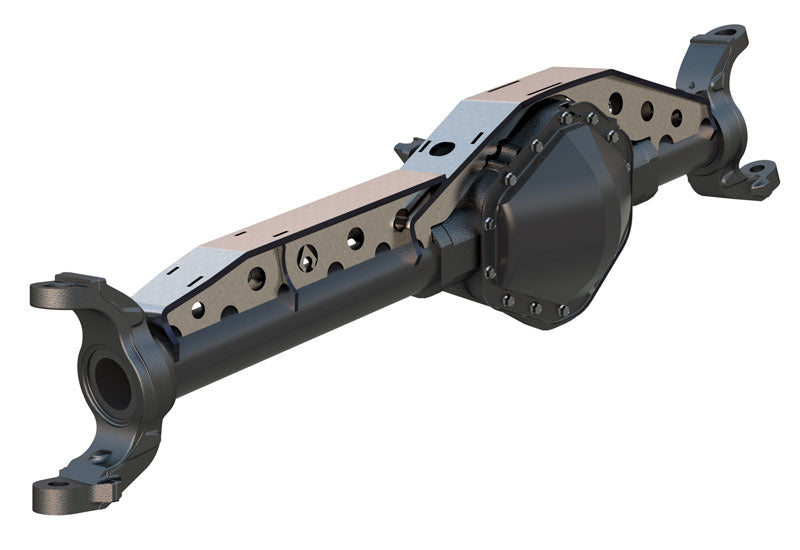

Use a long Modular Truss End with a 14 bolt short truss and make a 14 bolt front axle. Or use two Modular Truss Ends on a rear axle with a Modular or Short Truss and you'll have a low profile rear truss which has more clearance for frame rails than a normal rear truss and gives you a flat surface for bumpstops to hit.

Overall length on the modular truss end is 20.73"


Features include:

  • 3/8" thick mild steel truss top and 1/4" mild steel gussets. Precision CNC cut and bent for great fitment.*

  • Works great with Artec Modular and Short Trusses AND pretty much any short style truss even from other manufacturers

  • 3.5 inch axle tube diameter

  • Allows customization of your truss system to fit your needs

  • Provides a lower profile than a standard rear truss...perfect for clearing rear frame rails and providing a bumpstop pad

  • Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.

  • Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
NOTE: This truss end is flat on the end and not contoured to any truss. THIS REQUIRES TRIMMING TO FIT. This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

*Some grinding and fitment may be required when installing this item. Every axle varies slightly and some fabrication may be required.
