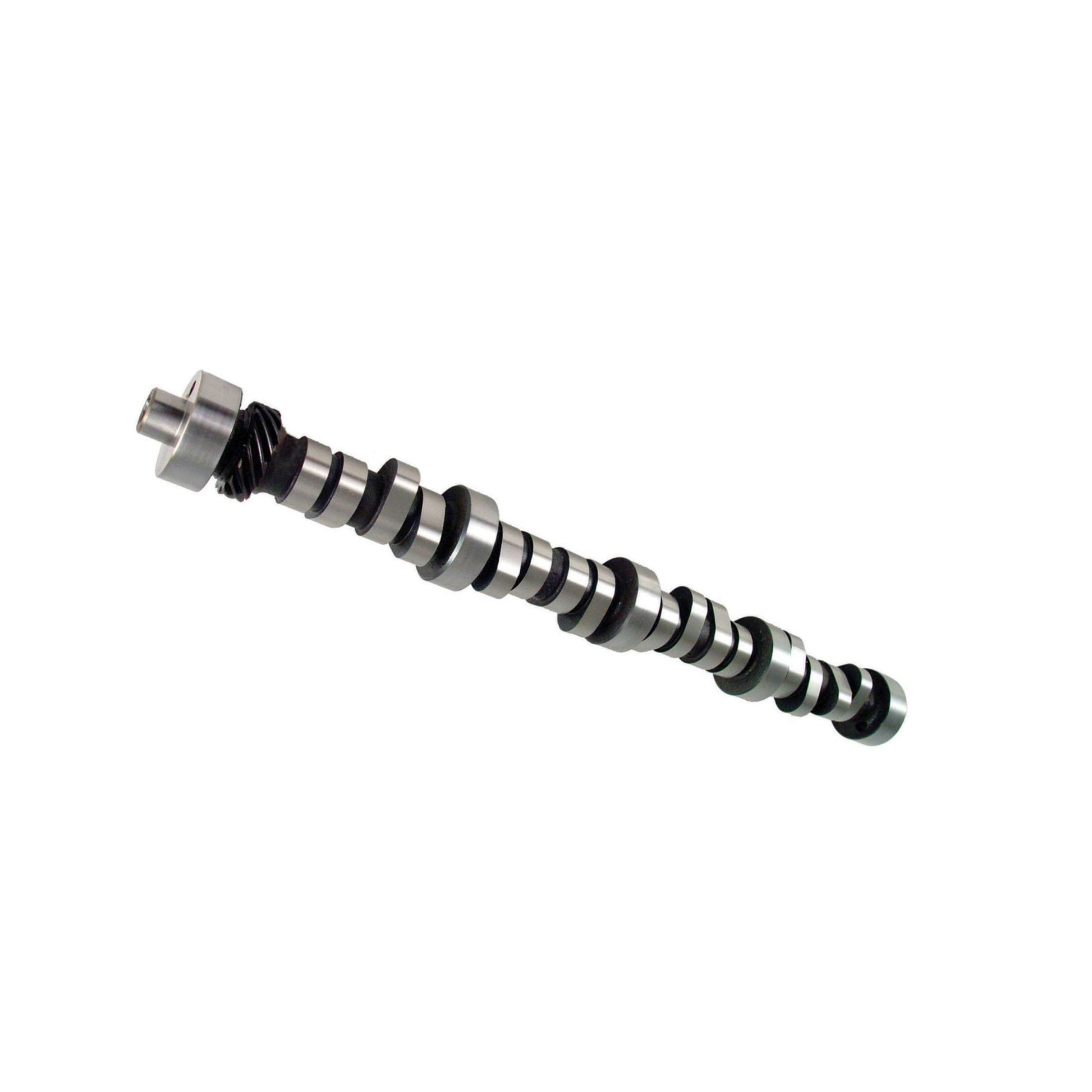

COMP Cams Nitrous HP 215/224 Hydraulic Roller Cam for Ford 5.0L COMP-35-552-8

Attributes:

• GTIN: 00036584038122
• Brand Name: COMP Cams
• Camshaft Series: Nitrous HP
• Usage: Street/Strip
• Cam Type: Hydraulic Roller
• Grind Number: NX264HR
• Basic Operating RPM Range: 1,500-5,600
• Intake Duration at .050 Inch Lift: 212
• Exhaust Duration at .050 inch Lift: 218
• Advertised Intake Duration: 264
• Advertised Exhaust Duration: 276
• Lobe Separation: 114
• Intake Valve Lift: 0.512
• Exhaust Valve Lift: 0.512
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Austempered Ductile Iron
• Engine Family: Ford 5.0L (1985-2002)
• Cam and Lifter Kit Upgrade: CL35-552-8
• K-Kit Upgrade: K35-552-8
• Lifter Type: Hydraulic Roller
• SK-Kit Upgrade: SK35-552-8
• Amazon ASIN: B000V9ET0C
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 10 x 5.5 inches
• Weight: 9.62 lb
