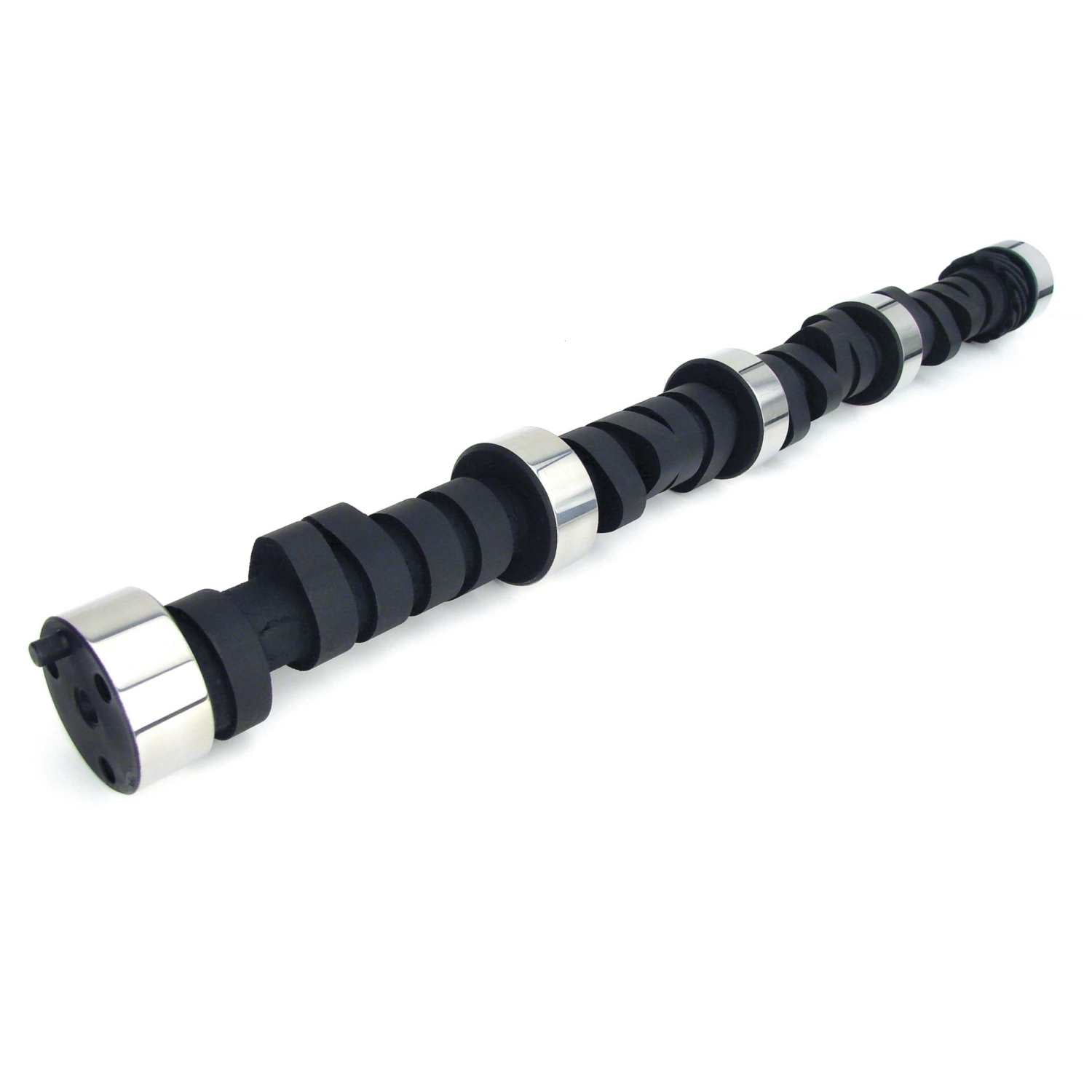

COMP Cams Nitrous HP 230/244 Hydraulic Flat Cam for Chevrolet Big Block 396-454 COMP-11-564-4

Attributes:

• GTIN: 00036584038733
• Brand Name: COMP Cams
• SK-Kit Upgrade: SK11-564-4
• Amazon ASIN: B001O07DH8
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: 2,000-6,500
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 292
• Lobe Separation: 113
• Intake Valve Lift: 0.551
• Exhaust Valve Lift: 0.568
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Cam and Lifter Kit Upgrade: CL11-564-4
• K-Kit Upgrade: K11-564-4
• Lifter Type: Hydraulic Flat Tappet

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 3.07 x 2.67 inches
• Weight: 10.55 lb
