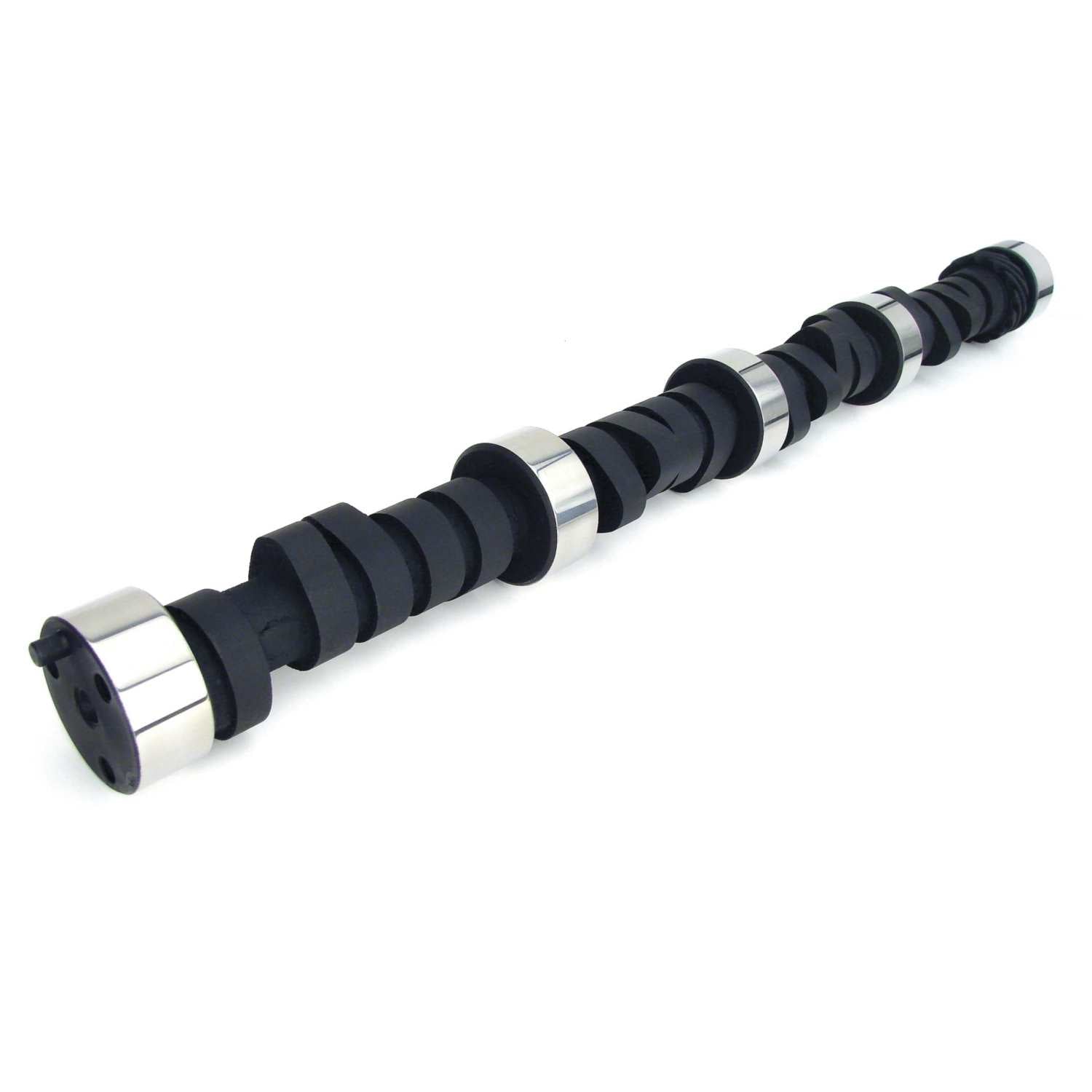

COMP Cams Nitrous HP 240/253 Hydraulic Flat Cam for Chevrolet Big Block 396-454 COMP-11-568-4

Attributes:

• GTIN: 00036584038740
• Brand Name: COMP Cams
• Camshaft Series: Nitrous HP
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: NX284H
• Intake Duration at .050 Inch Lift: 240
• Exhaust Duration at .050 inch Lift: 253
• Advertised Intake Duration: 284
• Advertised Exhaust Duration: 305
• Lobe Separation: 113
• Intake Valve Lift: 0.575
• Exhaust Valve Lift: 0.595
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Cam and Lifter Kit Upgrade: CL11-568-4
• K-Kit Upgrade: K11-568-4
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK11-568-4
• Amazon ASIN: B000P5G52C
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Basic Operating RPM Range: 2,800-6800

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.75 lb
