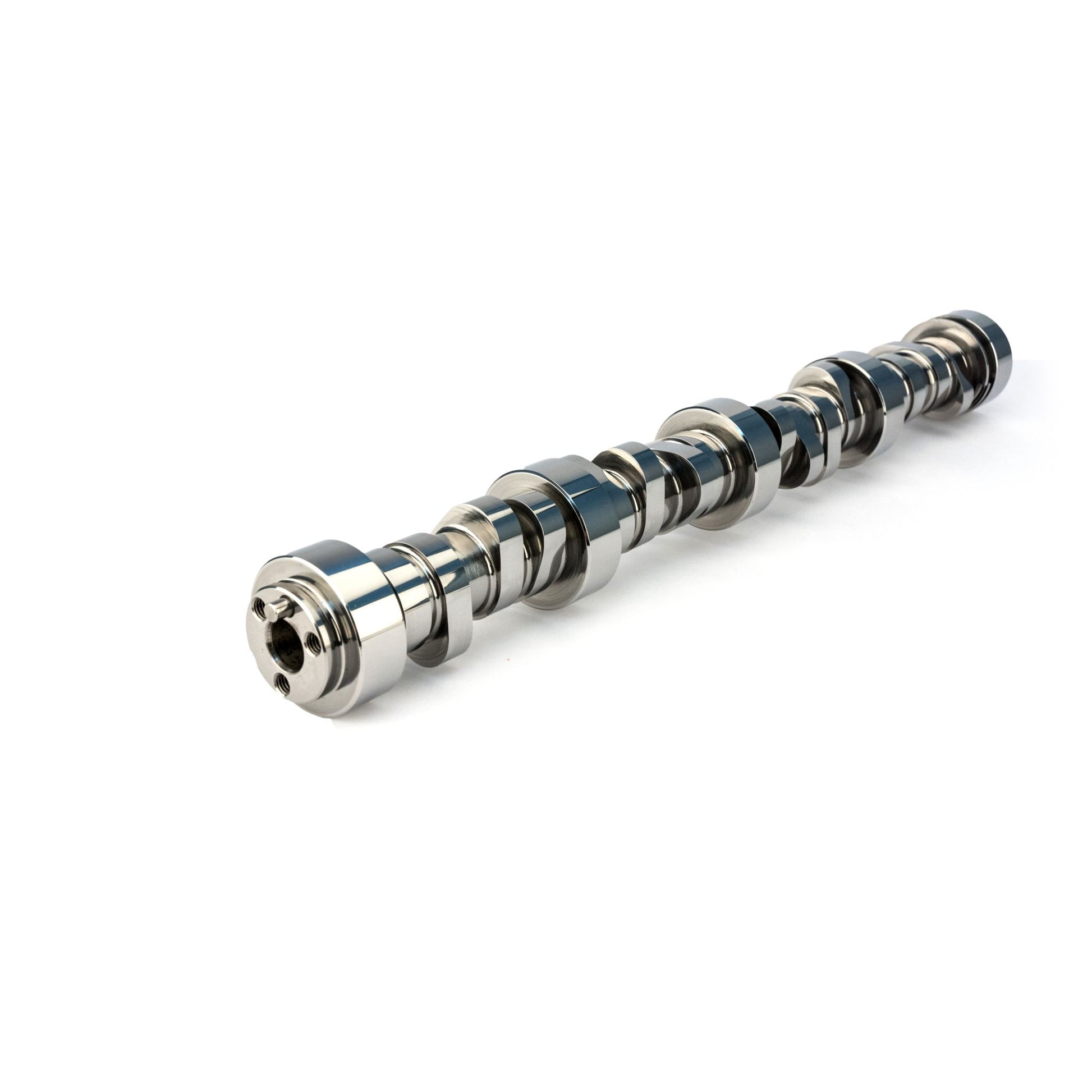

COMP Cams NSR Drift 233/243 Hydraulic Roller Cam for GM LS GEN III/IV COMP-54-777-11

Attributes:

• GTIN: 00036584391234
• Brand Name: COMP Cams
• Grind Number: 294LSD14
• Cam Type: Hydraulic Roller
• Lifter Type: Hydraulic Roller
• Usage: Race or Street/Strip
• Camshaft Series: NSR Drift
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Performance Description: The best possible drop-in cam for a budget 5.3L Drift / Road Race / Drag build with Spintron-proven 7500 RPM+ stability. It is a good idea to replace the timing chain.
• Basic Operating RPM Range: 3000-7500
• Intake Duration at .050 Inch Lift: 233
• Exhaust Duration at .050 Inch Lift: 243
• Advertised Intake Duration: 294
• Advertised Exhaust Duration: 304
• Lobe Separation: 114
• Intake Valve Lift: 0.541
• Exhaust Valve Lift: 0.541
• Camshaft Material: Billet Steel
• Lifters Included: No
• Assembly Lubricant Included: Yes
• Recommended Valve Spring Kit/Part Number: 26906
• Valve Springs Required: No, but recommended
• Camshaft Gear Attachment: 3-Bolt
• Recommended Cam Install Kit: 5621
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 3 x 2.75 inches
• Weight: 10.2 lb
