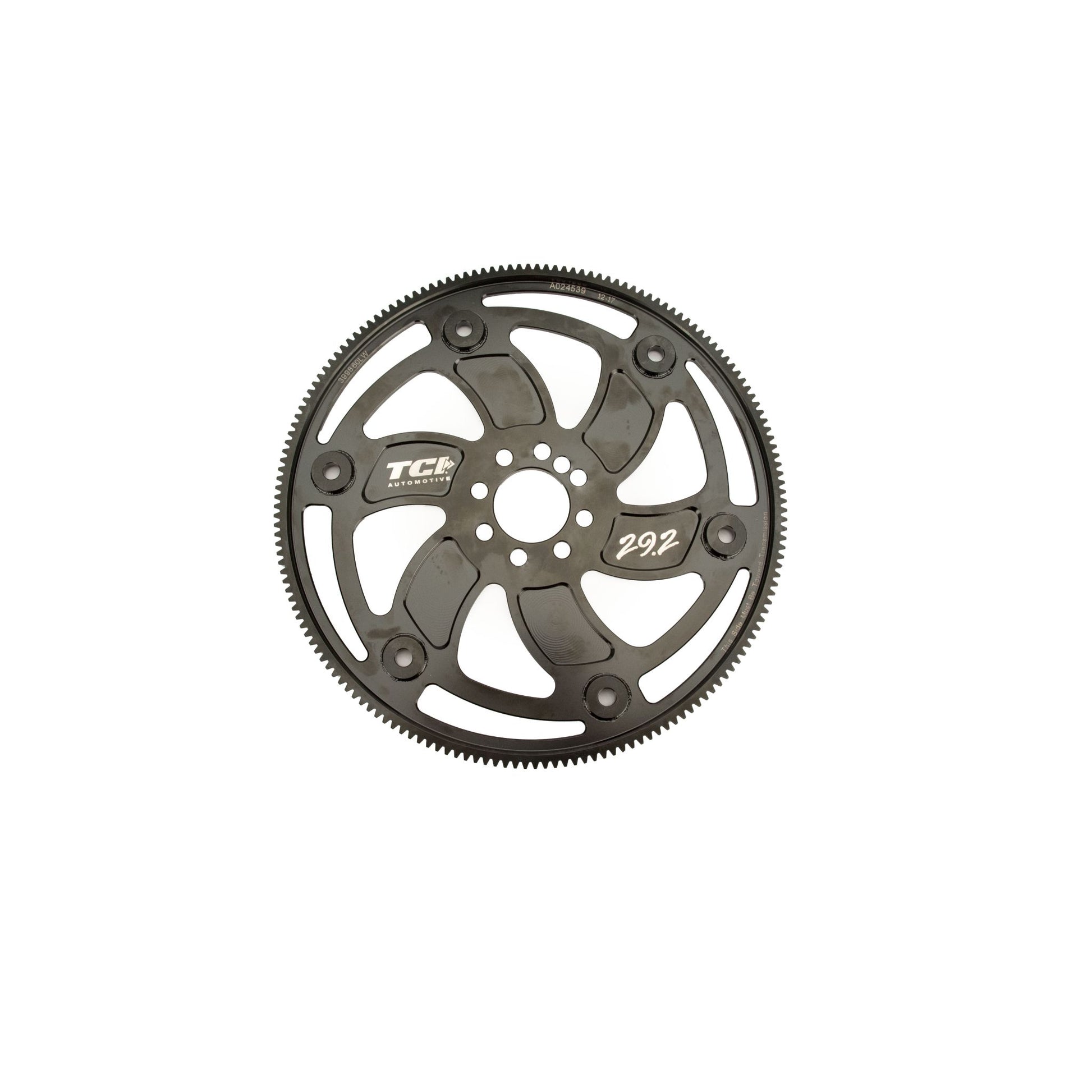

TCI One-Piece Flexplate for GM LT1/LT4 399860

One-piece flexplates from TCI offer heavy-duty strength with less weight for high-RPM GM LT1 and LT4 applications. Available in standard and lightweight versions, the TCI SFI 29.2-certified flexplates are made from 4140 forged steel and feature a hobbed-on ring gear and robotic tig-welded converter spacers. Gas nitriding provides for extra surface hardness and strength, while E-coating offers corrosion protection. CNC-milled pockets and lightening holes reduce the flexplate’s rotating mass and drop overall weight.

Attributes:

• GTIN: 00788120158602
• Brand Name: TCI Automotive
• Ring Gear Tooth Quantity: 168
• Mount Hole Quantity: 8 crank
• Coating Type: E-Coating
• Weight: 6.09
• Transmission Fitment: 11.5 BC TC
• Bolt Pattern: LT/LS
• Engine Fitment: GM GEN V LT1/LT4
• New Or Remanufactured: New
• Grade Type: Performance
• Mount Hole Diameter: 7/16 on 3.110 BC
• Rear Main Seal Style: N/A
• Color: Black
• Meets or Exceeds Original Equipment Manufacture Specifications: Yes
• Thickness: 0.45
• Inside Diameter: 2.07
• Outside Diameter: 14.125
• Quantity: 1
• Safety Rating: SFI 29.2
• Flexplate Material: 4140 Forged Steel
• Engine Balance: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16.75 x 16.75 x 1 inches
• Weight: 10 lb
