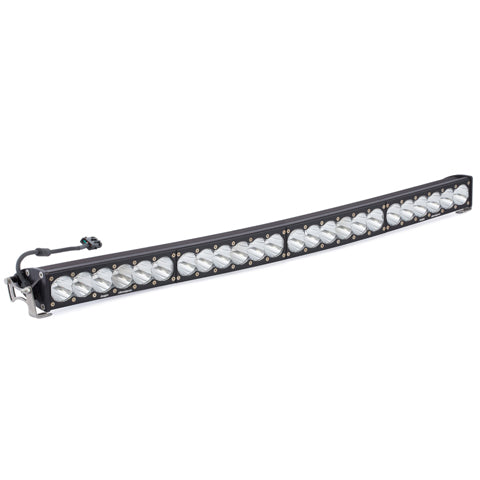

Baja Designs OnX6 Arc LED Light Bar 524001

The NEW OnX6 plus Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 39,220 lumens, the brightest just got up to 69 percent brighter. The OnX6 plus LED light bar also integrates Baja Designs' trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Attributes:

• GTIN: 00819314020167
• Brand Name: Baja Designs
• Add-On: Accessories-458412-Light Cover (Amber)
• Add-On0: Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
• Add-On1: Compatible Products-613608-Harness Splitter
• Add-On2: Compatible Products-613609-Harness/Splitter (55 Inch)
• Add-On3: Compatible Products-640163-Harness/Splitter (Hi Beam)
• Add-On4: Compatible Products-640094-Upfitter Harness
• Add-On5: Compatible Products-640119-Wiring Harness (Hi/Low)
• Add-On6: Compatible Products-640115-Wiring Harness (On/Off)
• Add-On: Accessories-458410-Light Cover (Clear)
• Add-On: Accessories-458411-Rock Guard (Black)
• Add-On: Accessories-458117-Lens Kit (Driving/Combo; Amber)
• Add-On: Accessories-458114-Lens Kit (Driving/Combo; Clear)
• Add-On: Accessories-458113-Lens Kit (Spot; Clear)
• Add-On: Accessories-458116-Lens Kit (Wide Cornering; Amber)
• Add-On: Accessories-458115-Lens Kit (Wide Cornering; Clear)
• Add-On: Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
• Amperage Rating (A): 26.8 (High); 22.4 (Low)
• Average Rated Life (hr.): 49,930
• Beam Pattern: Spot
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 39,220 (High); 32,760 (Low)
• Depth (in.): 4.29
• Description: Arc; Spot; Clear
• Height (in.): 2.69
• Housing Color: Black
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Length (in.): 40
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam
• Lighting Quantity: 24
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Mounting Brackets
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: OnX6+ 40 Inch Arc LED Light Bar
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• Universal or Specific: Universal
• Wattage (W): 340 (High); 284 (Low)
• Weight (lbs.): 15.05
• Wiring Harness Description: Hi-Low Dongle
• Wiring Harness Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0 x 8.0 x 8.0 inches
• Weight: 15.0 lb
