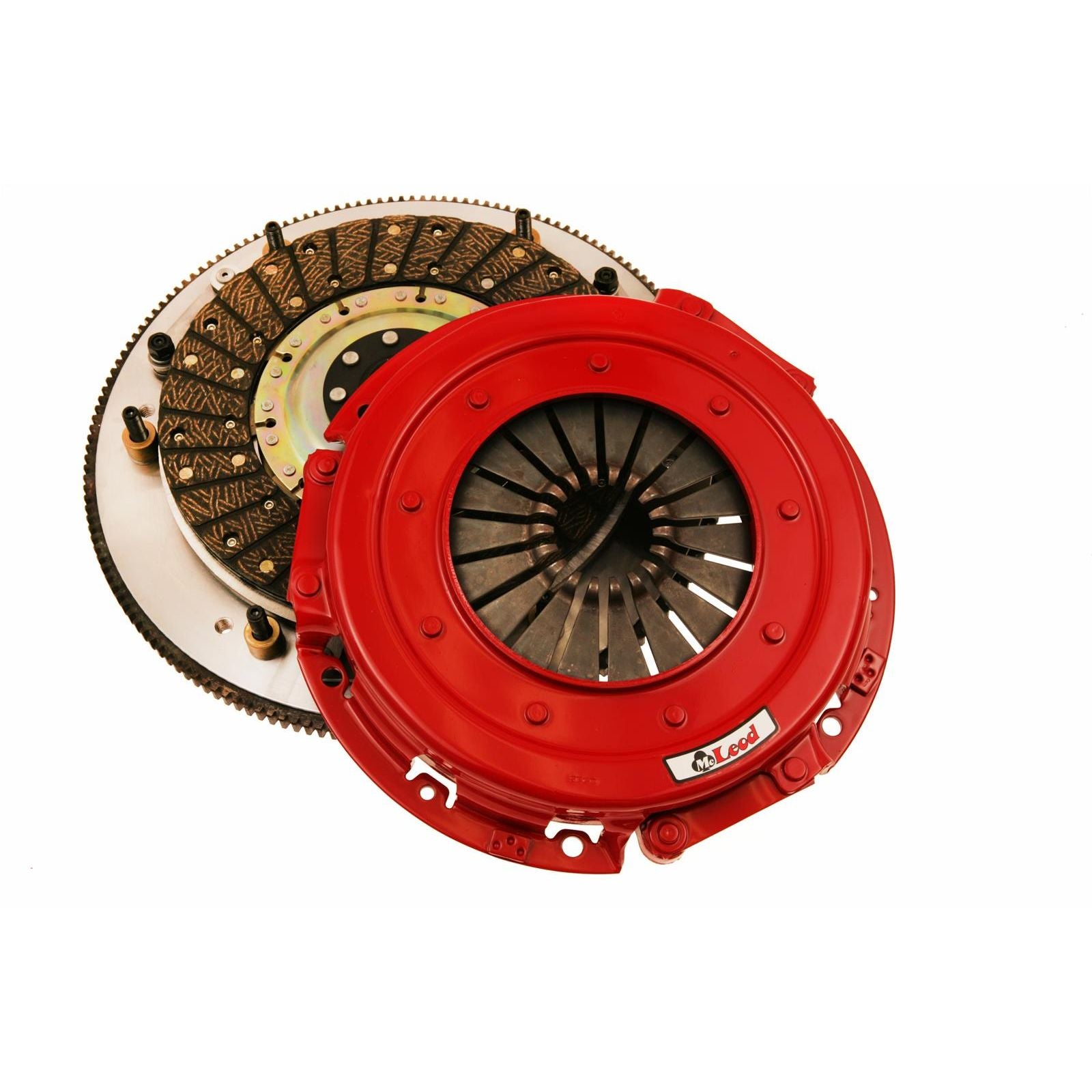

McLeod Original Street Twin:Aluminum:1955-85 SBC:1970-90 BBC:0Bal:168T:1-3/16x18 6300105M

In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!

• McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you!

Attributes:

• GTIN: 00887753676115
• Brand Name: McLeod
• Disc Material: Ceramic
• Disc Diameter: 10.5In.
• Clutch Usage: Street
• Clutch Patterns: 10.5In. Borg & Beck. Street Twin Only
• Throwout Bearing Style: Standard
• Make: Chevrolet
• Engine: 1955-1985 SBC 2pc Seal
• Engine 2: 1970-1990 BBC
• Engine 3: 1991-1999 BBC Gen V
• Horsepower Rating: 1500
• Spline: 1 3/16In. x 18
• Ring Gear: 168 tooth
• Additional Counter Weight Kit Required: 560222
• Throwout Bearing Included: No
• Pressure Plate Style: Diaphragm
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No
• Number of Discs: Double
• Hub Style: Solid
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Flywheel Material: Aluminum
• Engine Balance: Internal Balance
• Disc Style: Segmented

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 42 lb
