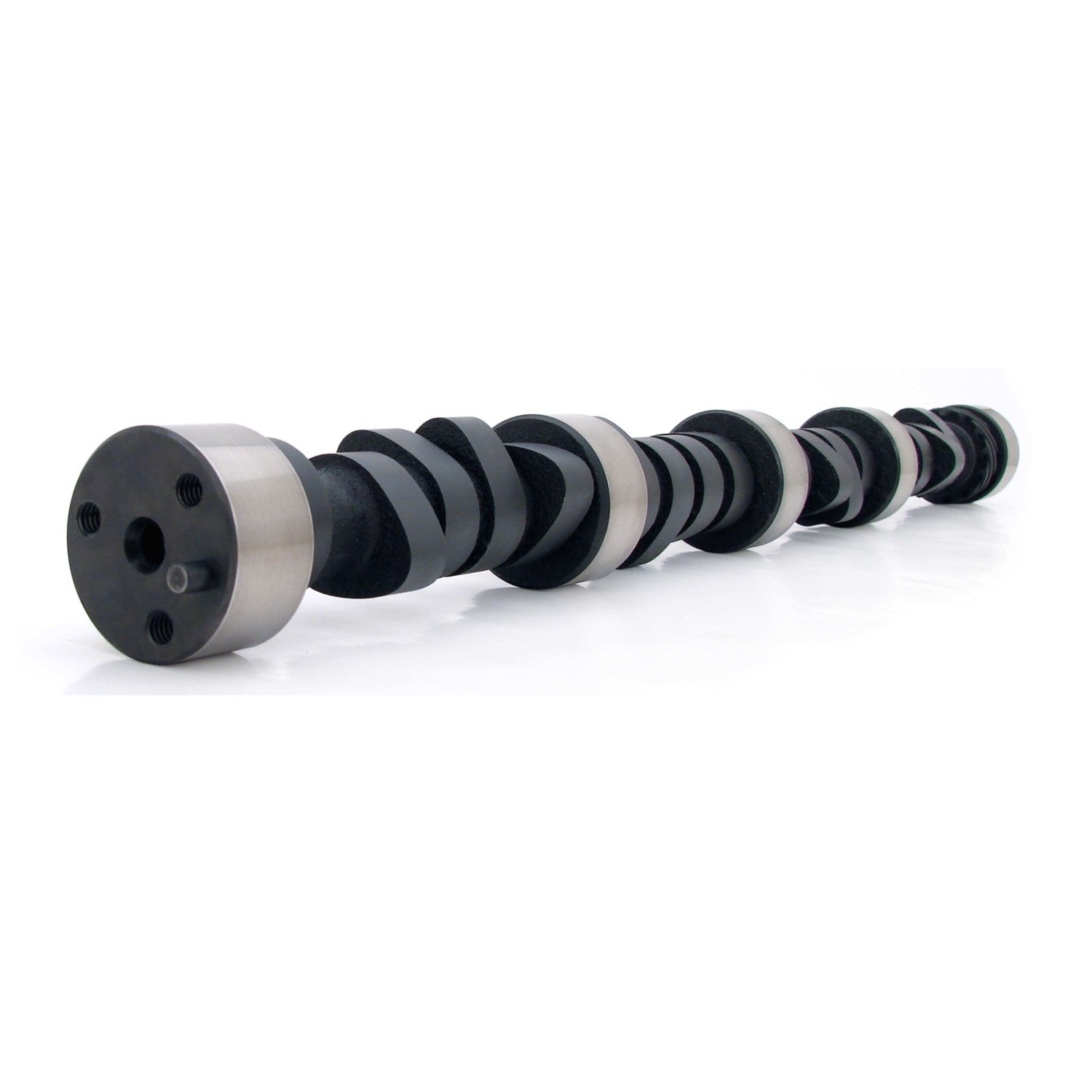

COMP Cams Oval Track NIT 256/258 Solid Flat Cam for Chevrolet Small Block COMP-12-654-20

Attributes:

• GTIN: 00036584178088
• Brand Name: COMP Cams
• Intake Valve Lift: 0.549
• Exhaust Valve Lift: 0.537
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Nitrided Cast Iron
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Lifter Type: Solid Flat Tappet
• Amazon ASIN: B002EE4BJ6
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Xtreme Oval
• Usage: Strip
• Cam Type: Solid Flat Tappet
• Grind Number: 286XO-8
• Basic Operating RPM Range: 3200-7,200
• Intake Duration at .050 Inch Lift: 256
• Exhaust Duration at .050 inch Lift: 258
• Advertised Intake Duration: 286
• Advertised Exhaust Duration: 292
• Lobe Separation: 108

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.3 x 3 x 2.7 inches
• Weight: 8.65 lb
