Mishimoto Performance Intercooler, fits Chevrolet/GMC 6.6L Duramax L5P 2017-2019, Black MMINT-DMAX-17BK

Mishimoto has expanded our line of Duramax performance parts to include a performance intercooler for the 2017-2019 Chevrolet/GMC 6.6L Duramax L5P.High intake temperatures can reduce performance and potentially cause engine damage if left unchecked. Protect your investment by upgrading to the Mishimoto 6.6L Duramax L5P performance intercooler. This Duramax intercooler is precision engineered with durable cast-aluminum end tanks that resist cracking under high temperatures and boost pressures.The massive 68mm-thick bar-and-plate core is 70-percent thicker than stock and is designed for maximum cooling. In addition, the larger core reduces restriction by over 64-percent compared to the stock intercooler. We've also increased the size of the intercooler inlet and outlet by 6mm and 12mm, respectively, to improve flow even more.Included with this intercooler is an adapter cold-side pipe with DuraCore™ boot and constant-tension T-bolt clamps. Two additional bungs on the adapter pipe can be drilled and tapped for sensors or water/meth injection. Offered in Sleek Silver or Stealth Black powder-coated finish, the Mishimoto 6.6L Duramax intercooler, like all our Duramax performance parts, is protected by our signature Mishimoto Lifetime Warranty.

• Includes cold-side adapter pipe with DuraCore™ boot and constant-tension T-bolt clamps
• Adapter pipe includes 2 bungs that can be drilled and tapped for sensors or water/meth injection
• Available in durable silver or black powder-coated finish
• Patent Pending
• Mishimoto Lifetime Warranty
• Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
• Reduces restriction by over 64% over stock intercooler
• 68mm-thick bar-and-plate core is 70% thicker than stock for maximum cooling
• Larger inlet and outlet reduce restriction for improved flow
• Robust cast-aluminum end tanks resist cracking under high heat and pressure

Attributes:

• GTIN: 00840197701454
• Brand Name: Mishimoto
• TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
• TechSpec Engine Codes: L5P
• TechSpec Chassis Codes: GMT K2
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 45.8
• TechSpec Overall Height (in): 23.85
• TechSpec Overall Width (in): 4.92
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 2.67
• TechSpec Core Length (in): 22
• TechSpec Core Height (in): 12
• TechSpec Inlet (in): 3
• TechSpec Outlet (in): 3.25
• TechSpec Weight (lbs): 76
• TechSpec Note: Some trimming of the fan shroud may be required for installation.

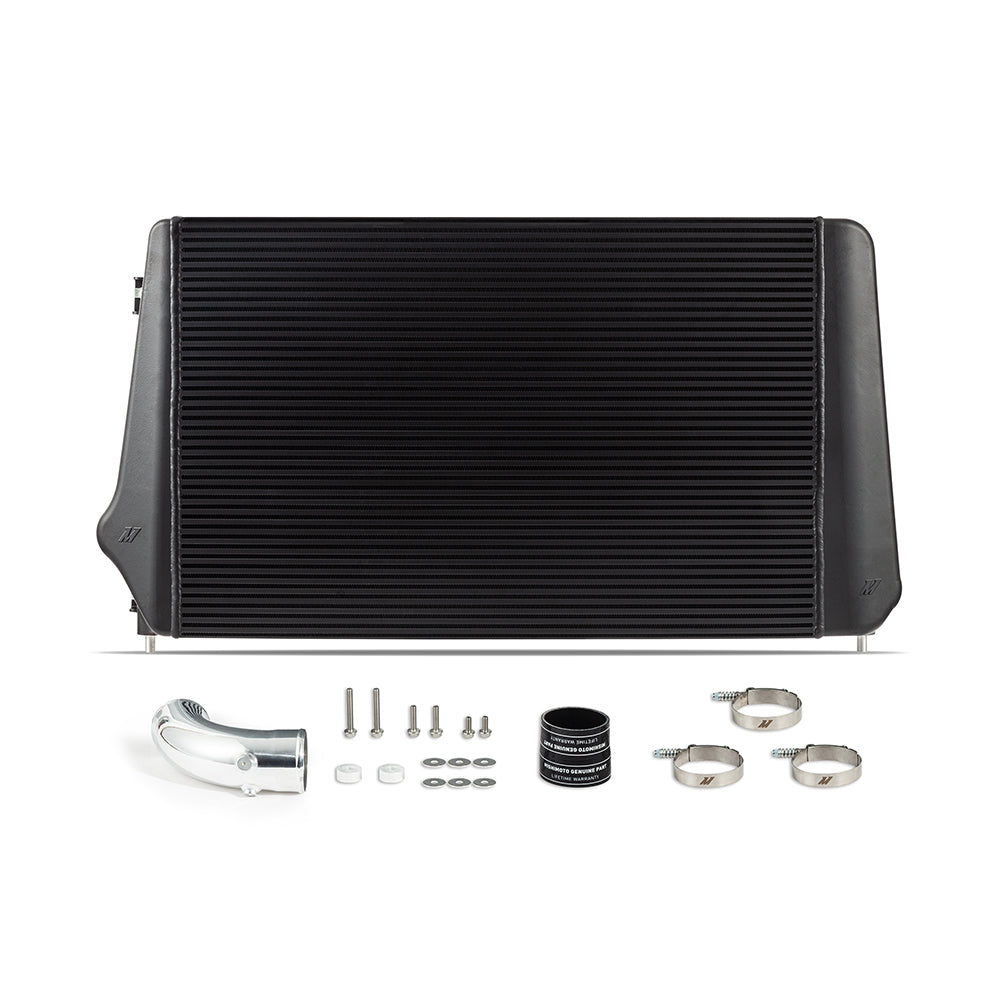

• TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(1) Cold-Side Intercooler Boot--(3) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
• SellingPoint02: Reduces restriction by over 64-percent over stock intercooler
• SellingPoint03: 68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
• SellingPoint04: Larger inlet and outlet reduce restriction for improved flow
• SellingPoint05: Robust cast-aluminum end tanks resist cracking under high heat and pressure
• SellingPoint06: Includes cold-side adapter pipe with DuraCore boot and constant-tension T-bolt clamps
• SellingPoint07: Adapter pipe includes 2 bungs that can be drilled and tapped for sensors or water/meth injection
• SellingPoint08: Available in durable silver or black powder-coated finish
• SellingPoint09: Patent Pending
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin:
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 29 x 9 inches
• Weight: 76 lb
