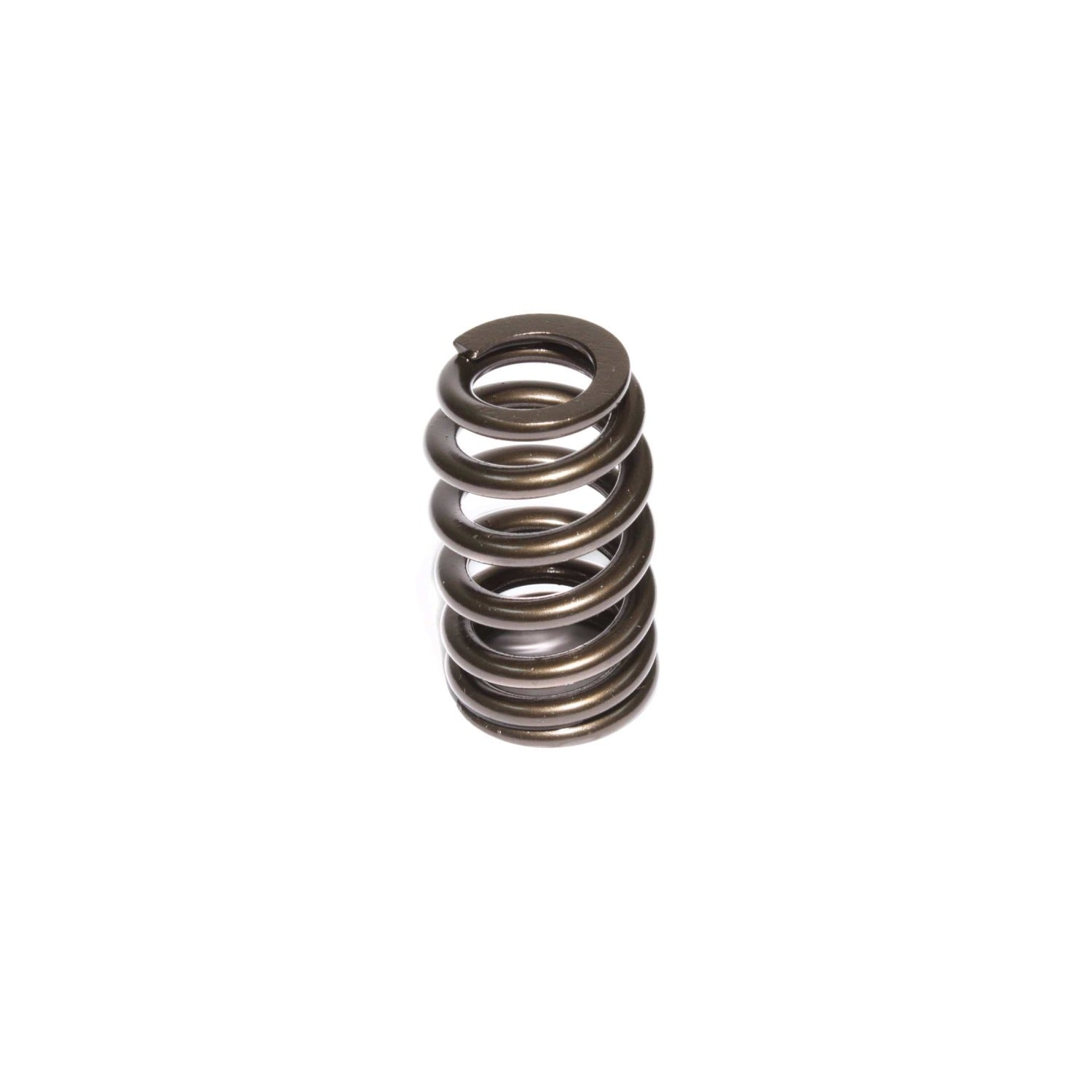

COMP Cams Performance Street 1.290" OD Beehive Spring; 1.800" Installed Height; 1 Spring COMP-26915-1

Attributes:

• GTIN: 00036584072652
• Brand Name: COMP Cams
• Compatible .570" Guide Diameter Spring Seat: 4705-1
• Amazon ASIN: B001GBW0V4
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Compatible Retainer: 788-1
• Compatible Shims: 4753
• Damper: No
• Number of Springs: 1
• Outer Bottom Spring Inside Diameter: 0.885
• Outer Bottom Spring Outside Diameter: 1.29
• Outer Top Spring Inside Diameter: 0.65
• Outer Top Spring Outside Diameter: 1.055
• Seat Height: 1.8
• Seat Pressure: 105
• Spring Rate: 313
• Valve Spring Series: Performance Street
• Coil Bind Height: 1.1

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 0.6 inches
• Weight: 0.15 lb
