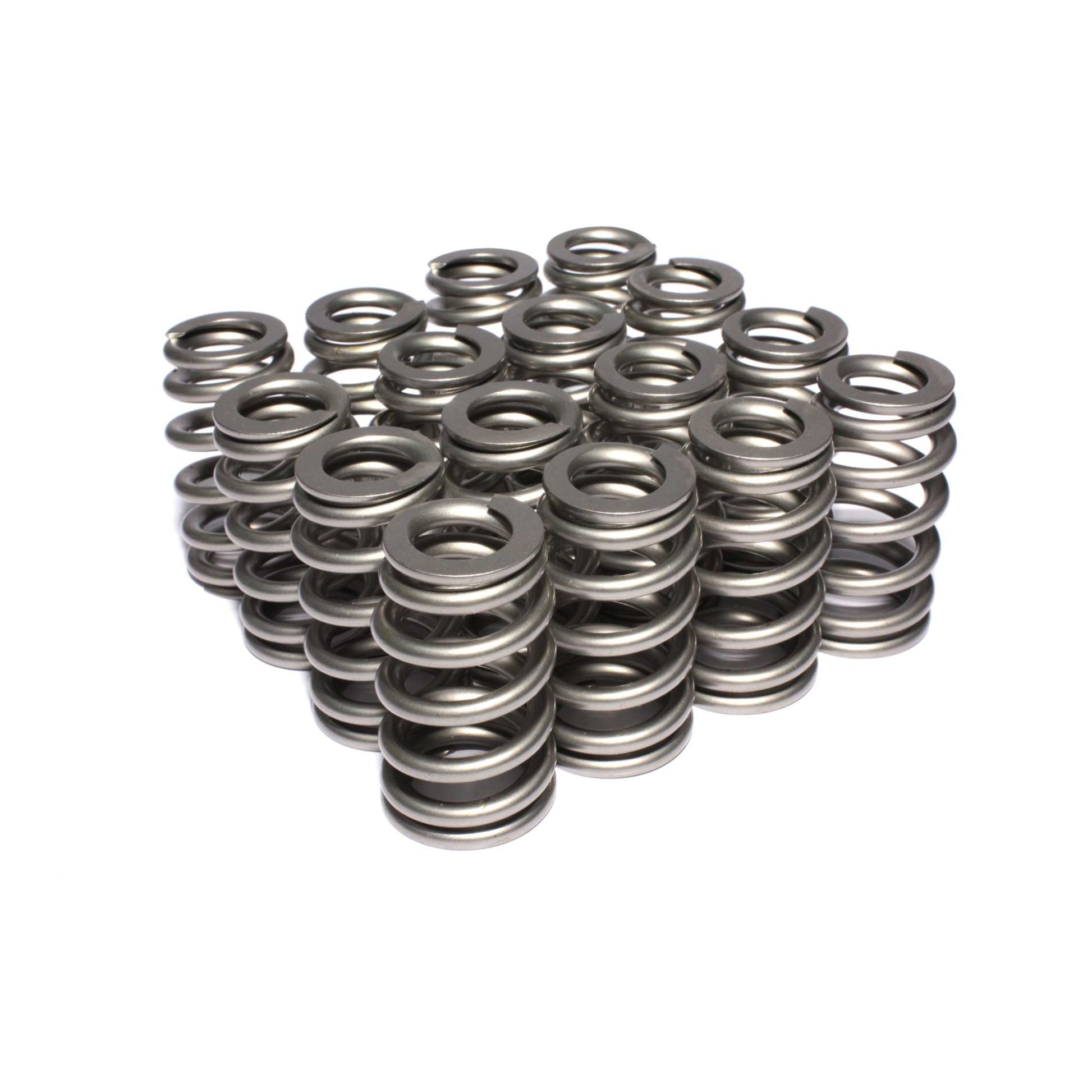

COMP Cams Performance Street 1.310" OD Beehive Spring; 1.800" Installed Height; 16 Springs COMP-26918-16

Attributes:

• GTIN: 00036584077473
• Brand Name: COMP Cams
• Valve Spring Series: Performance Street
• Amazon ASIN: B000CIUBIQ
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Outer Bottom Spring Outside Diameter: 1.31
• Spring Rate: 372
• Seat Pressure: 125
• Seat Height: 1.8
• Outer Top Spring Outside Diameter: 1.075
• Outer Top Spring Inside Diameter: 0.65
• Outer Bottom Spring Inside Diameter: 0.885
• Coil Bind Height: 1.140
• Number of Springs: 1
• Damper: No
• Compatible Spring Cup (O.D. Locator): 4709-16
• Compatible Shims: 4753
• Compatible Retainer: 795-16
• Compatible .570" Guide Diameter Spring Seats: 4705-16

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.5 x 3.75 x 3 inches
• Weight: 3.07 lb
