Pie Cut with Spigot - Male Segment - super tight Radius - 15°
Pie Cut with Spigot - Male Segment - super tight Radius - 15°
BOOST Products USA
Part #
EX-PIA-42-15
UPC #
4067255413975
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

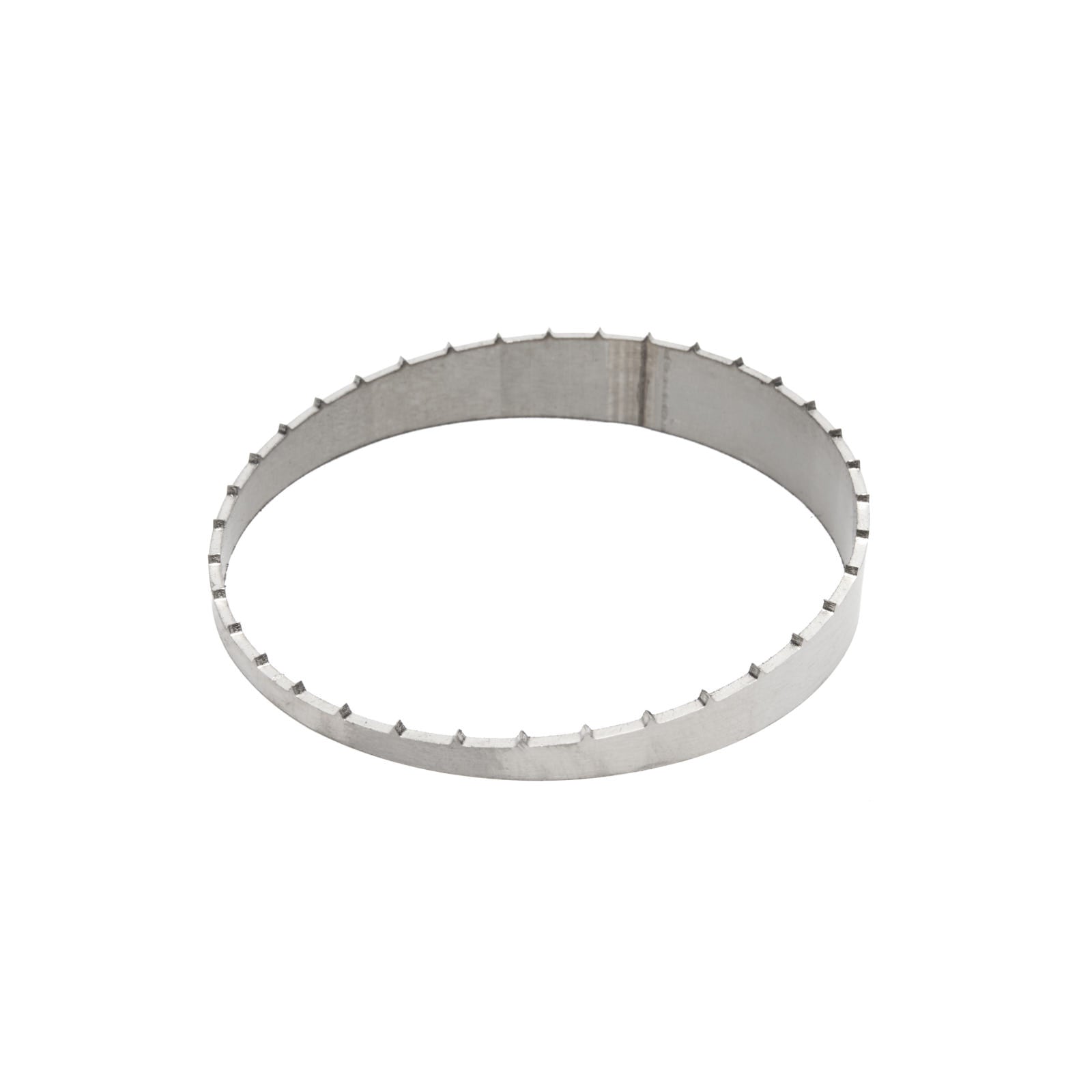

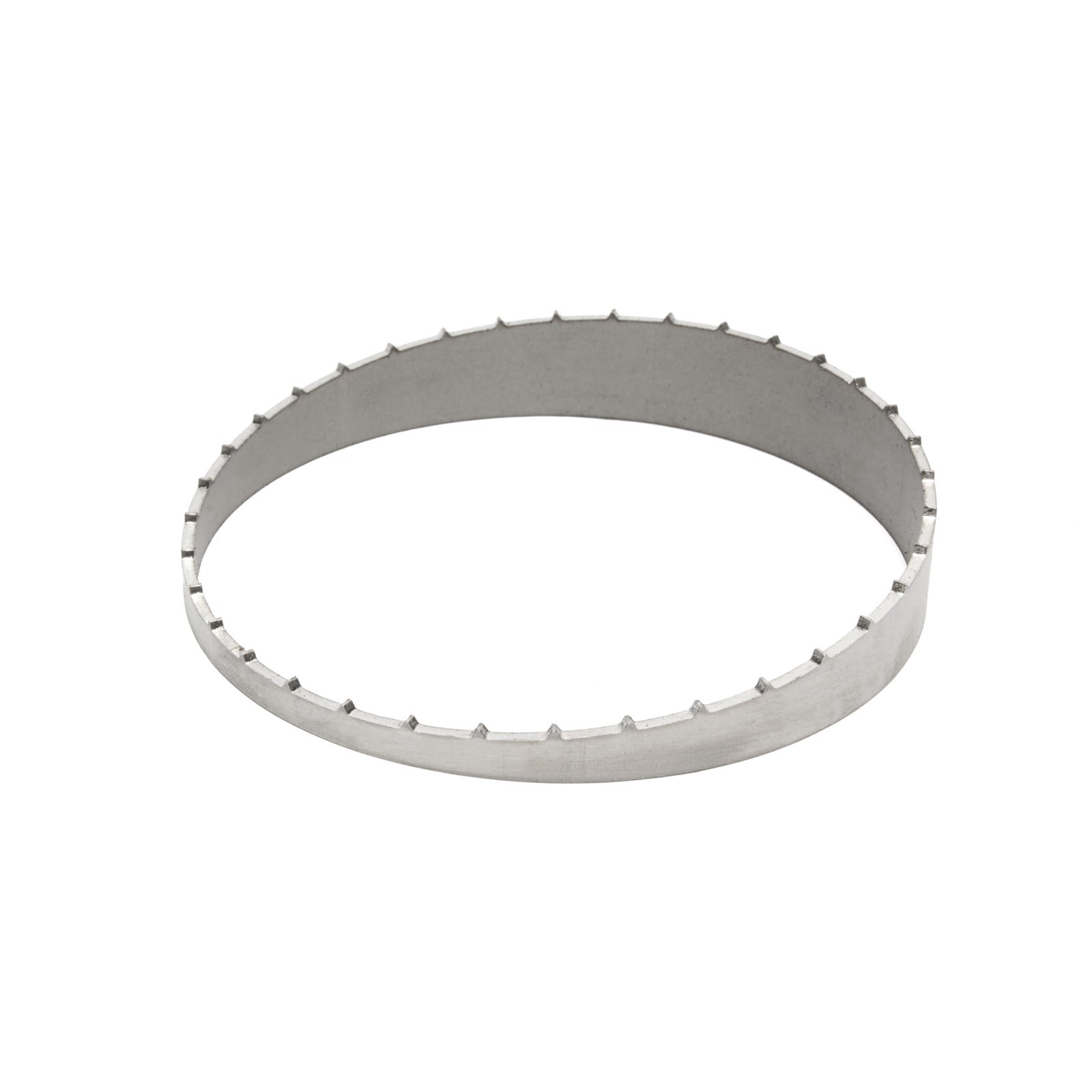

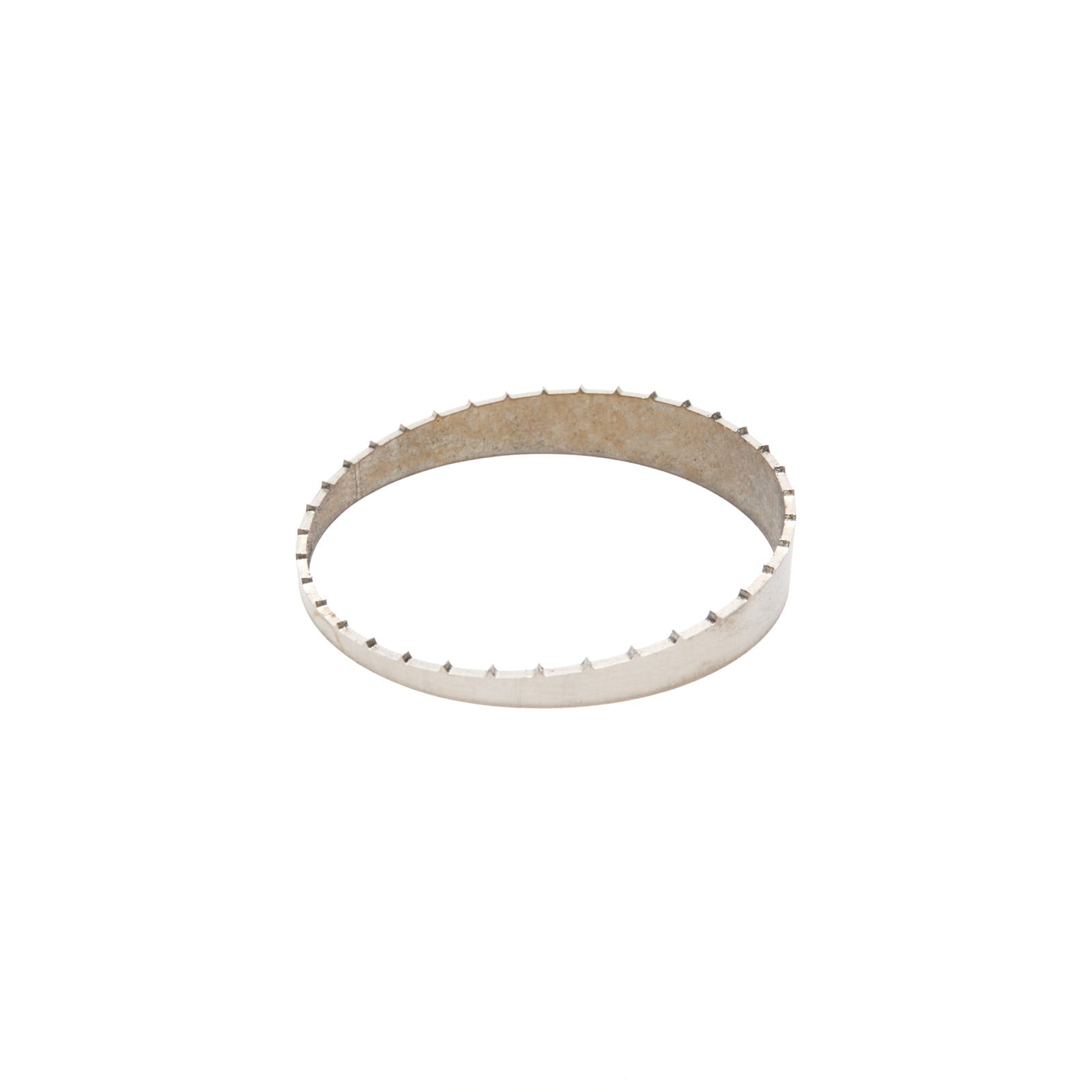

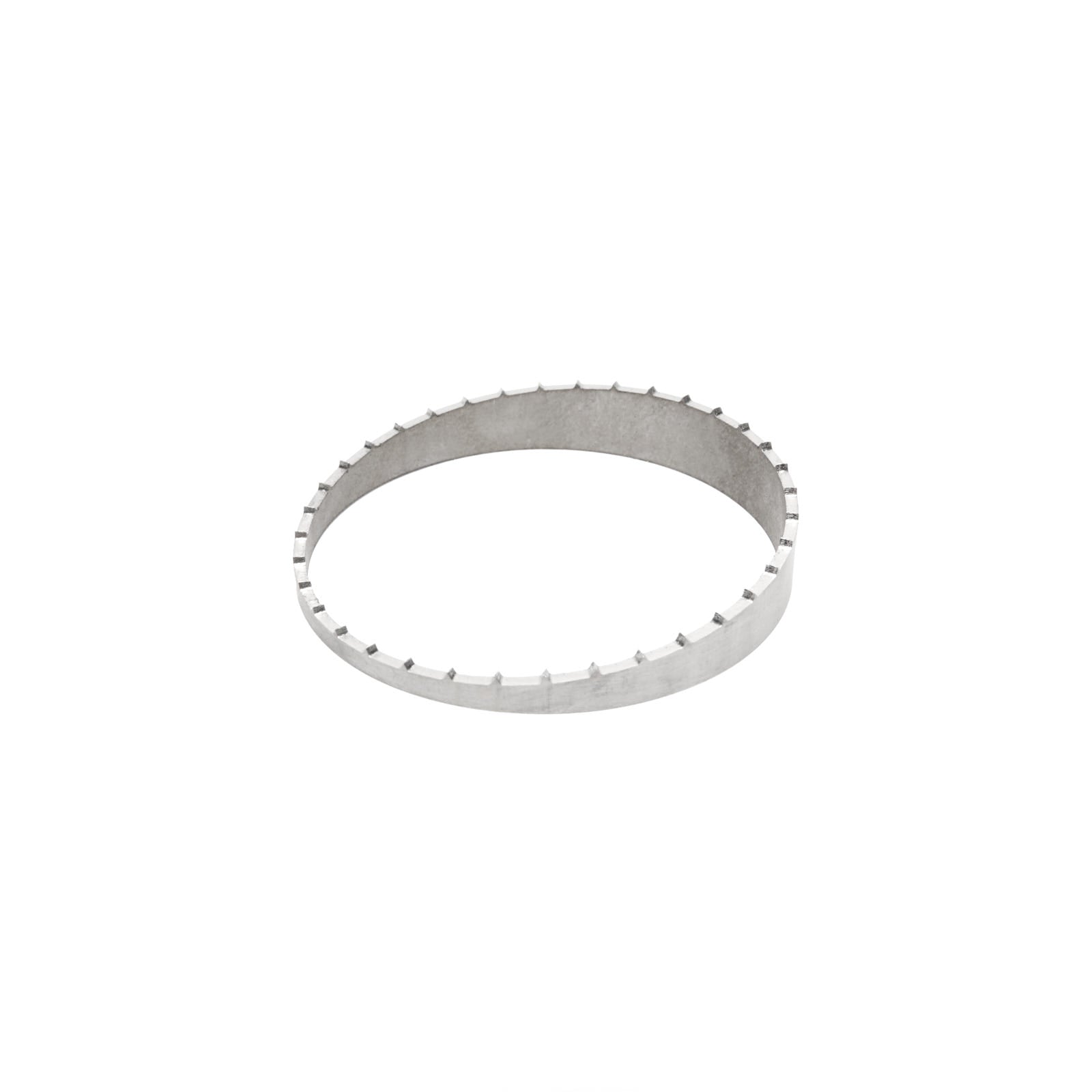

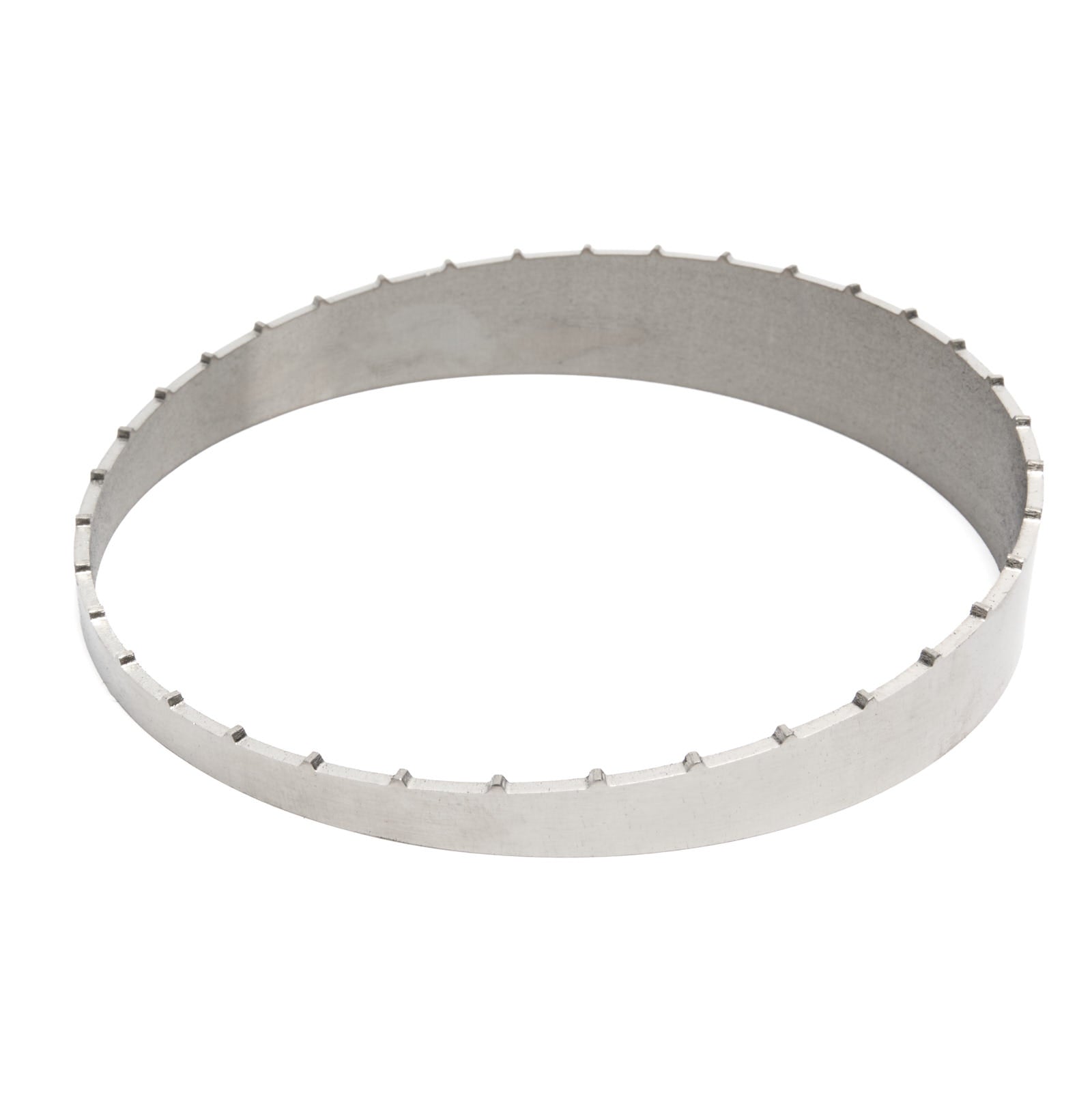

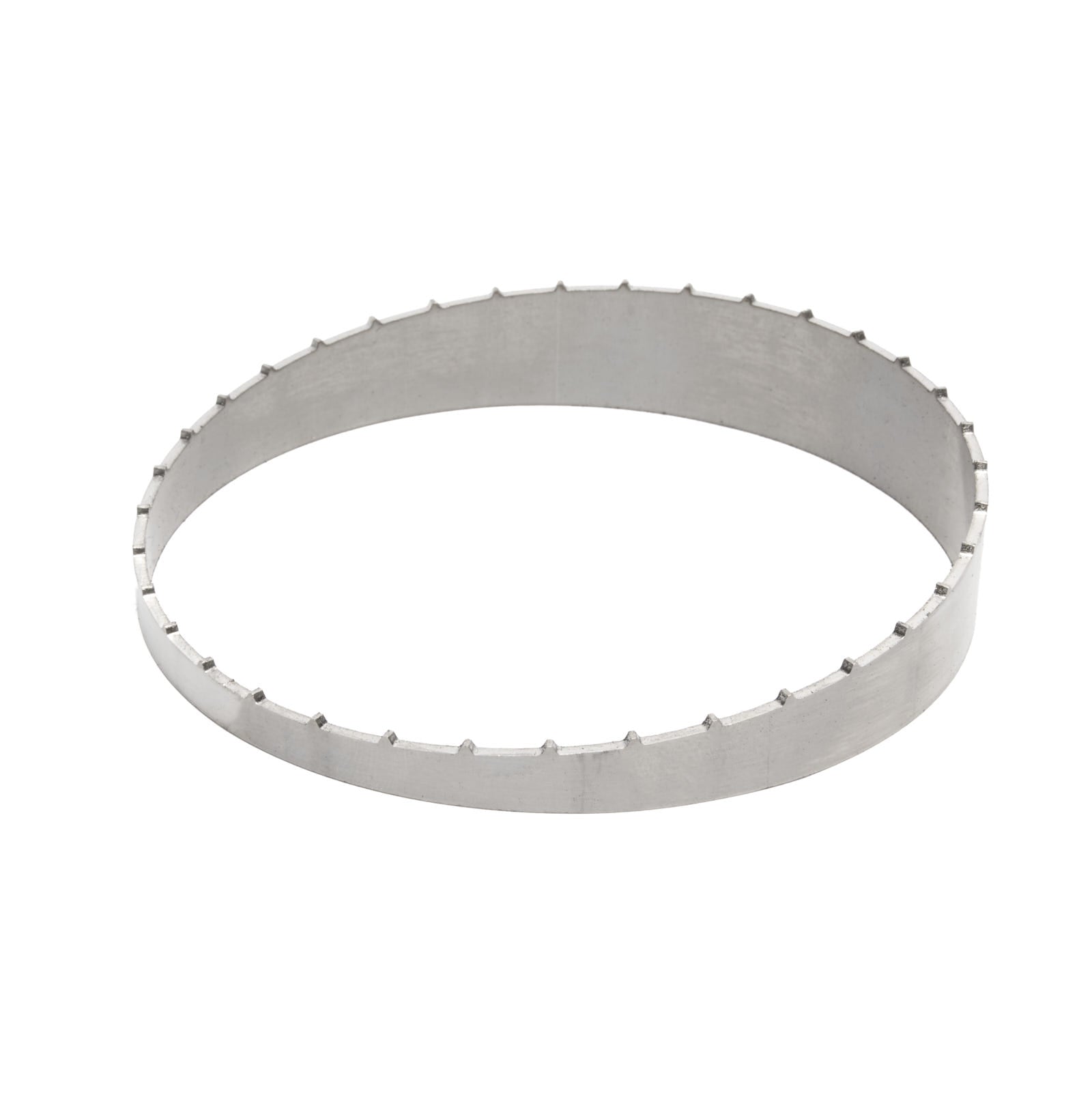

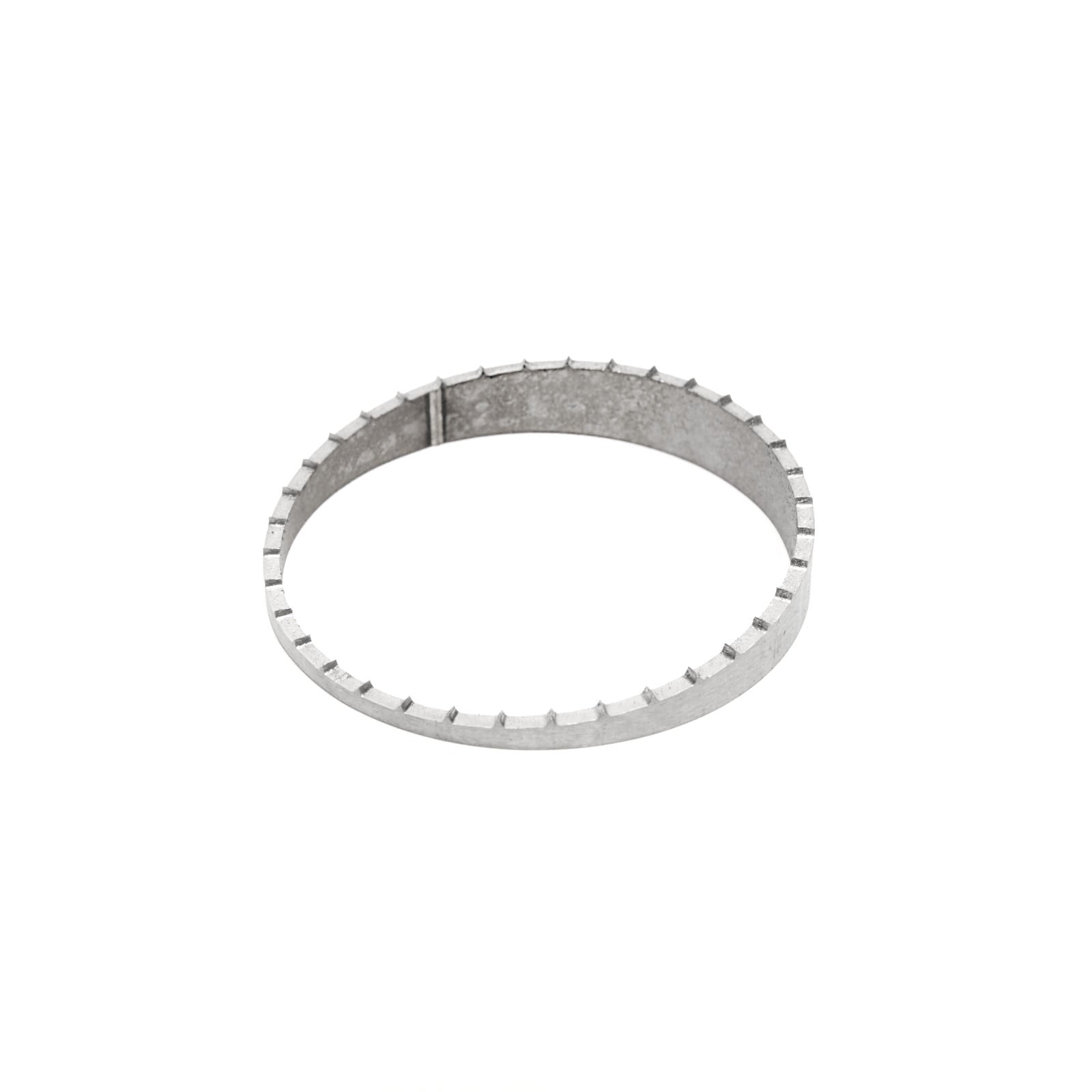

15° Pie Cut Male Segment with Spigot, Stainless Steel
Male segment for pie cut bends with spigots. One side is smooth for the connection to a straight pipe. The other side has male spigots that lock into the next segment. Use it to start or finish a pie cut bend in exhaust systems, downpipes, charge pipes and coolant lines.
The spigot design aligns the segments quickly without jigs, minimizes gaps and improves the look of the weld.
Key Features
- One smooth side and one side with male spigots
- Interlocking fit: reduced gaps and less post-processing
- Weld ready: deburred, clean cut and oil free
- Angle: 15°
- Material: 1.4301 (304) stainless steel, corrosion and heat resistant

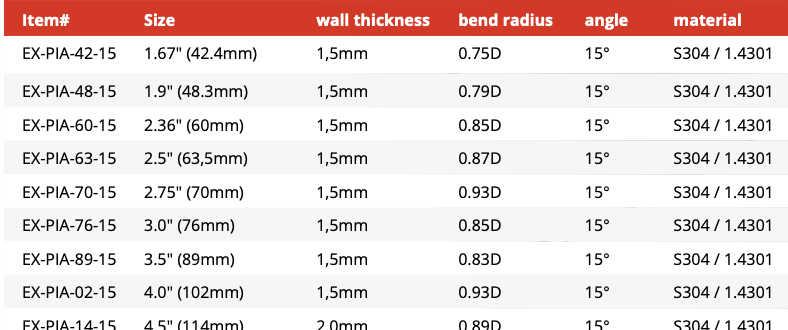

Available Sizes
| Size | Radius | Wall thickness | Part No. |
|---|---|---|---|
| 1.67" (42.4mm) | 0.75D, 1.25" (32mm) | 1.5mm | EX-PIA-42-15 |
| 1.9" (48.3mm) | 0.79D, 1.5" (38mm) | 1.5mm | EX-PIA-48-15 |
| 2.36" (60mm) | 0.85D, 2.0" (51mm) | 1.5mm | EX-PIA-60-15 |
| 2.5" (63.5mm) | 0.87D, 2.165" (55mm) | 1.5mm | EX-PIA-63-15 |
| 2.75" (70mm) | 0.93D, 2.56" (65mm) | 1.5mm | EX-PIA-70-15 |
| 3" (76mm) | 0.83D, 2.5" (63mm) | 1.5mm | EX-PIA-76-15 |
| 3.5" (89mm) | 0.85D, 3" (76mm) | 1.5mm | EX-PIA-89-15 |
| 4" (102mm) | 0.93D, 3.75" (95mm) | 1.5mm | EX-PIA-02-15 |
| 4.5" (114mm) | 0.89D, 4.0" (102mm) | 1.5mm | EX-PIA-14-15 |
Frequently Asked Questions
How do I start and finish a pie cut bend?
Use the male and female segments. One side is smooth for the connection to a straight pipe. The other side carries the spigots (male) or the spigot recesses (female) that lock into the next segment.
What is the advantage over standard pie cuts?
Standard pie cuts are cut from bends. BOOST Products pie cuts with spigot are laser cut from tube, which allows even tighter radii. And the spigots make assembly easier, because they hold every segment in position.
How do I prepare the segments for welding?
Degrease and deburr the mating surfaces and check the fitment before welding. For the best look and inner surface, use moderate heat input and back purging.

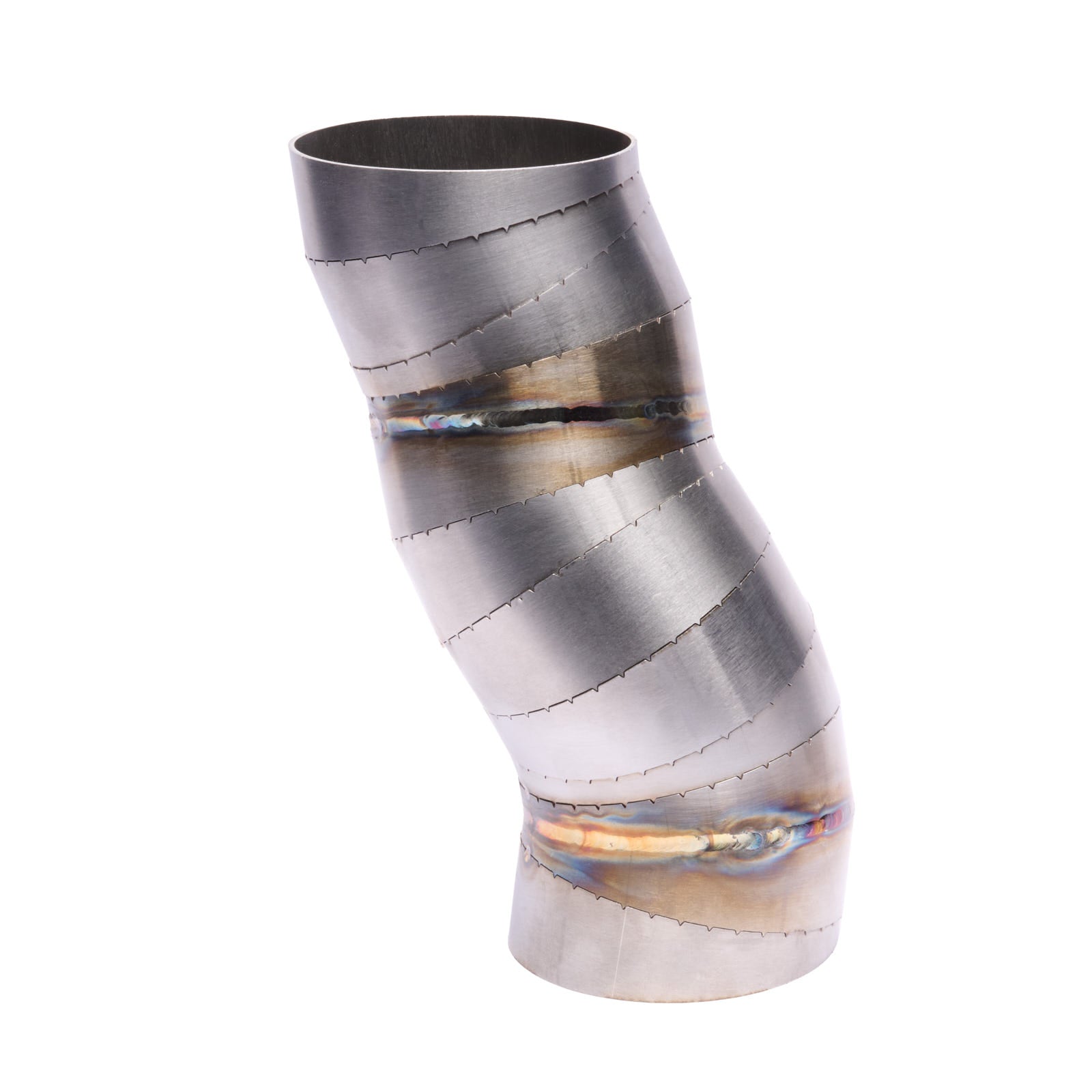

What can I build with pie cuts?
Custom exhaust systems, downpipes, intercooler piping and water lines. Because every segment has the same angle, you can plan the complete run and repeat it in series.
