Pie Cut with Spigot super tight Radius - 15° - Stainless Steel
Pie Cut with Spigot super tight Radius - 15° - Stainless Steel
BOOST Products USA
Part #
EX-PI-42-15
UPC #
4067255076767
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

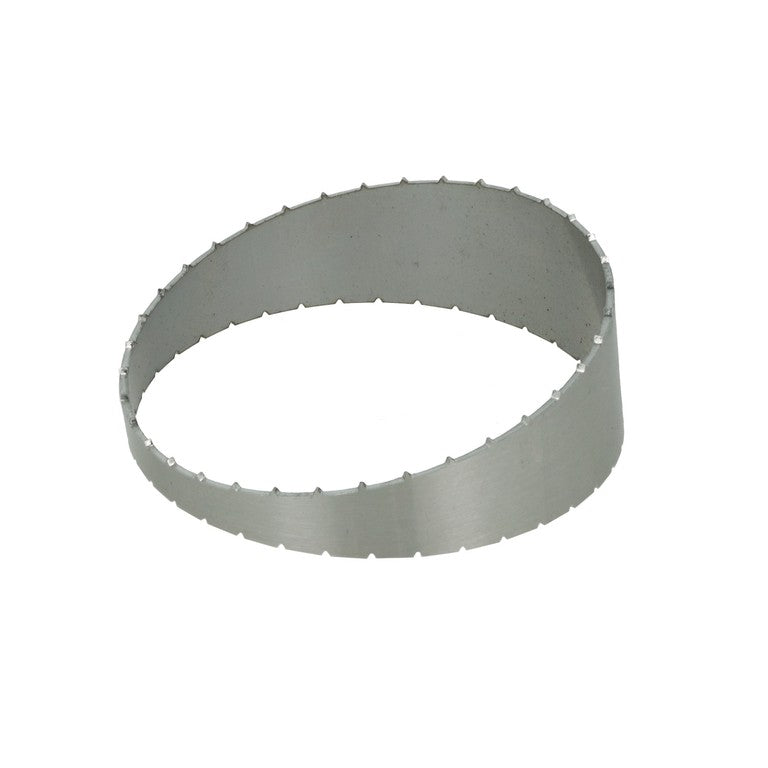

15° Stainless Steel Pie Cut with Spigot, Super Tight Radius

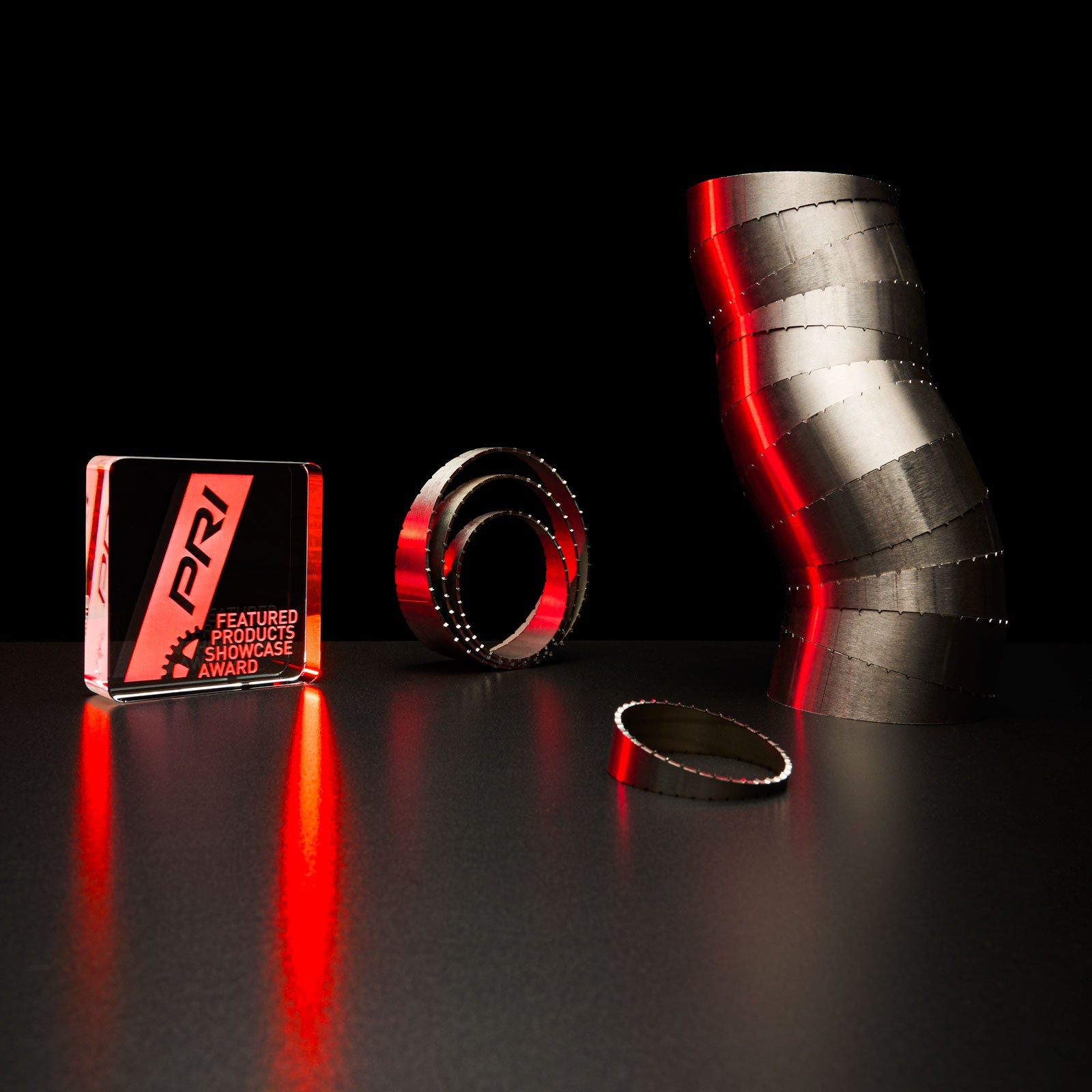

Stainless steel pie cut segments with spigots for custom exhaust systems, downpipes, intercooler piping and water lines. The segments plug into each other with spigots. That saves you the tedious marking, angle measuring and cutting, and it aligns the segments quickly and precisely. The result is small gaps and clean, repeatable welds. The segments are laser cut from tube and not from bends. That allows even tighter radii than standard pie cuts.

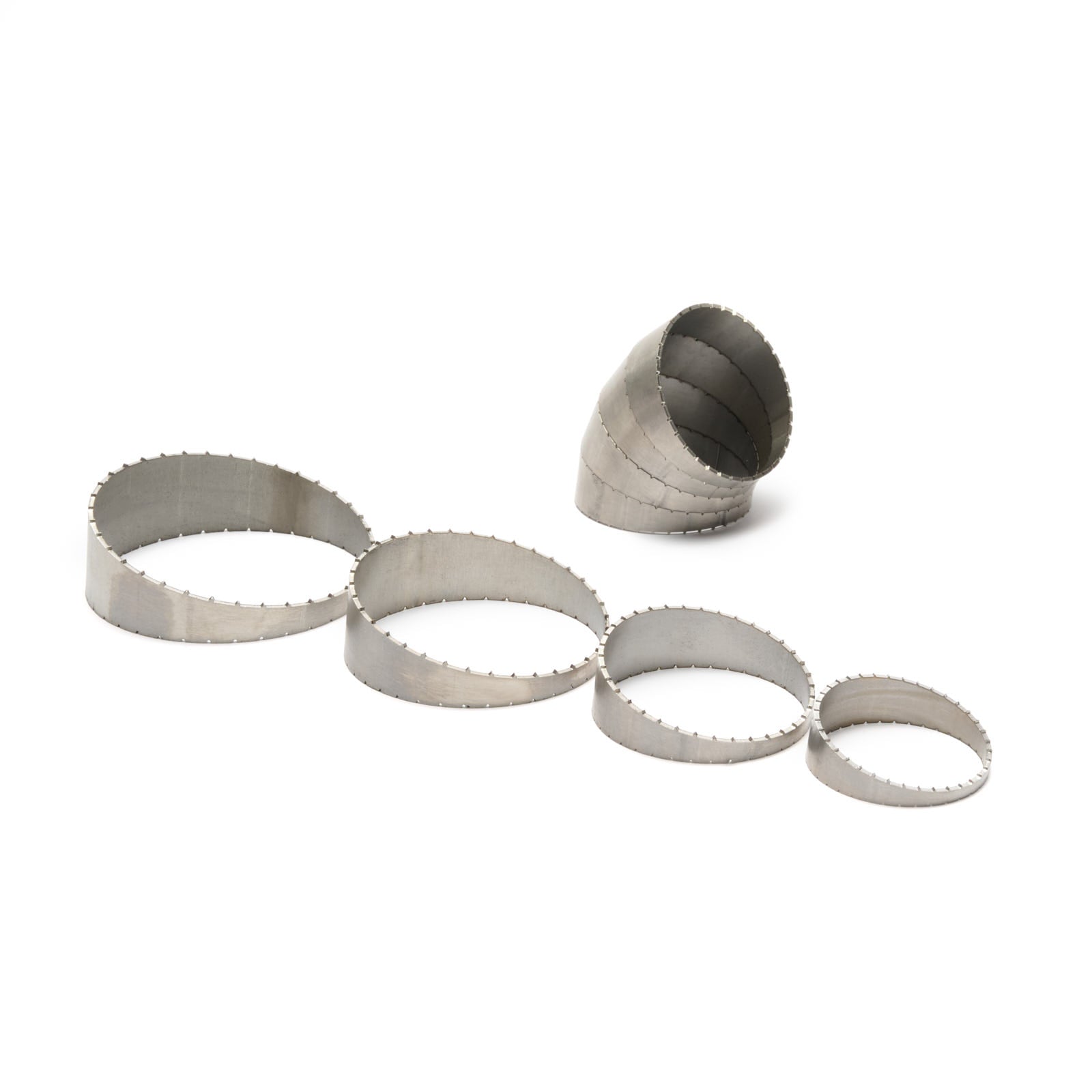

Each segment has an angle of 15°. Six segments add up to a 90° bend.
Key Features
- 15° per segment
- Spigots for quick and precise alignment
- Laser cut from tube
- Wall thickness: 1.5mm
- Material: 1.4301 (304) stainless steel

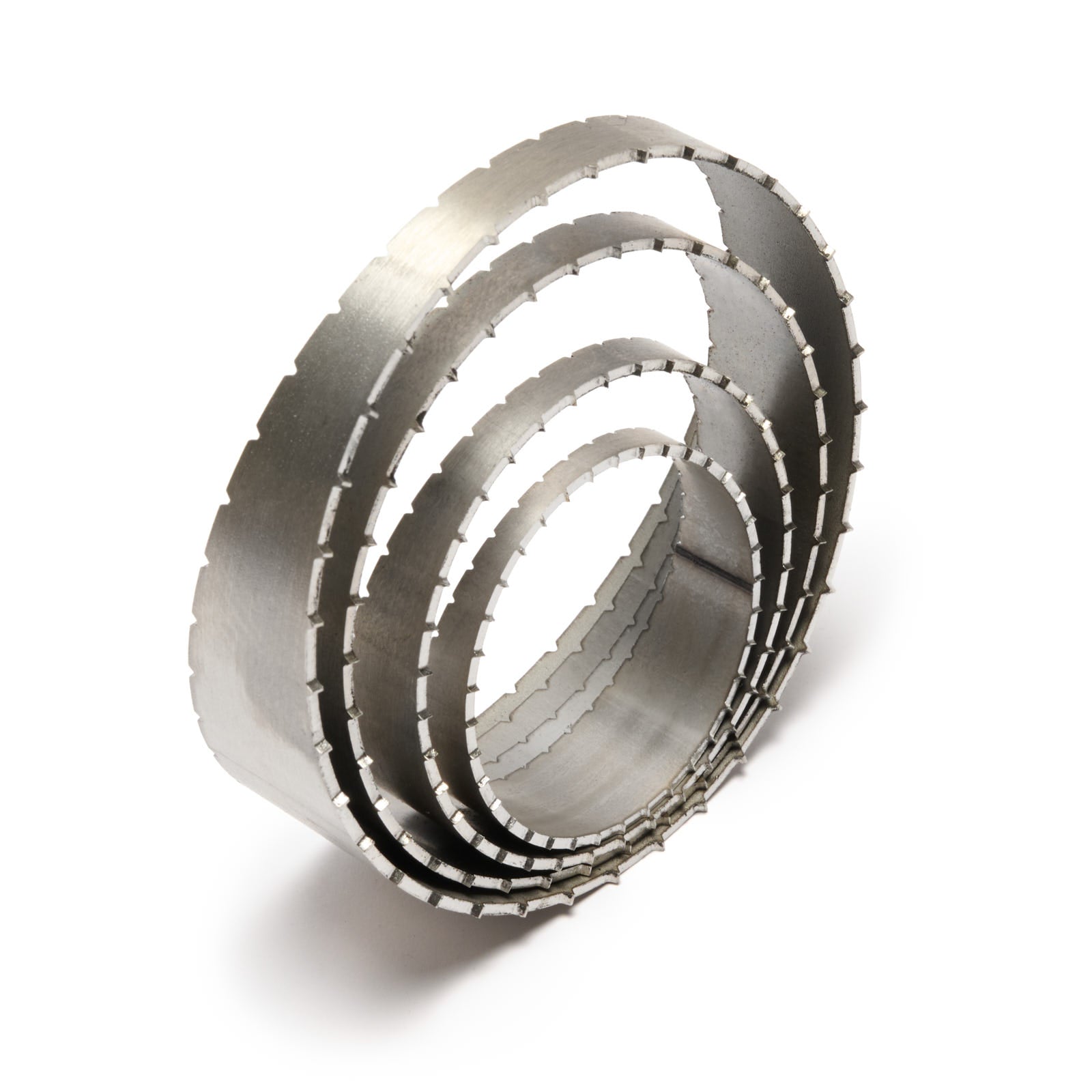

- 9 sizes from 1.67" (42.4mm) to 4.5" (114mm)
Available Sizes
| Size | Radius | Wall thickness | Part No. |
|---|---|---|---|
| 1.67" (42.4mm) | 0.75D, 1.25" (32mm) | 1.5mm | EX-PI-42-15 |
| 1.9" (48.3mm) | 0.79D, 1.5" (38mm) | 1.5mm | EX-PI-48-15 |
| 2.36" (60mm) | 0.85D, 2.0" (51mm) | 1.5mm | EX-PI-60-15 |
| 2.5" (63.5mm) | 0.87D, 2.165" (55mm) | 1.5mm | EX-PI-63-15 |
| 2.75" (70mm) | 0.93D, 2.56" (65mm) | 1.5mm | EX-PI-70-15 |
| 3" (76mm) | 0.83D, 2.5" (63mm) | 1.5mm | EX-PI-76-15 |
| 3.5" (89mm) | 0.85D, 3" (76mm) | 1.5mm | EX-PI-89-15 |
| 4" (102mm) | 0.93D, 3.75" (95mm) | 1.5mm | EX-PI-02-15 |
| 4.5" (114mm) | 0.89D, 4.0" (102mm) | 1.5mm | EX-PI-14-15 |
Frequently Asked Questions
What is the advantage over standard pie cuts?
Standard pie cuts are cut from bends. BOOST Products pie cuts with spigot are laser cut from tube, which allows even tighter radii. And the spigots make assembly easier, because they hold every segment in position.
What can I build with pie cuts?
Custom exhaust systems, downpipes, intercooler piping and water lines. Because every segment has the same angle, you can plan the complete run and repeat it in series.
How do I start and finish a pie cut bend?
Use the male and female segments. One side is smooth for the connection to a straight pipe. The other side carries the spigots (male) or the spigot recesses (female) that lock into the next segment.
Are other angles available?
We sell 15° segments as standard. Segments with 9° or 12.5° are available as a custom order with a minimum order quantity of 50 pieces.
How do I prepare the segments for welding?
Degrease and deburr the mating surfaces and check the fitment before welding. For the best look and inner surface, use moderate heat input and back purging.
