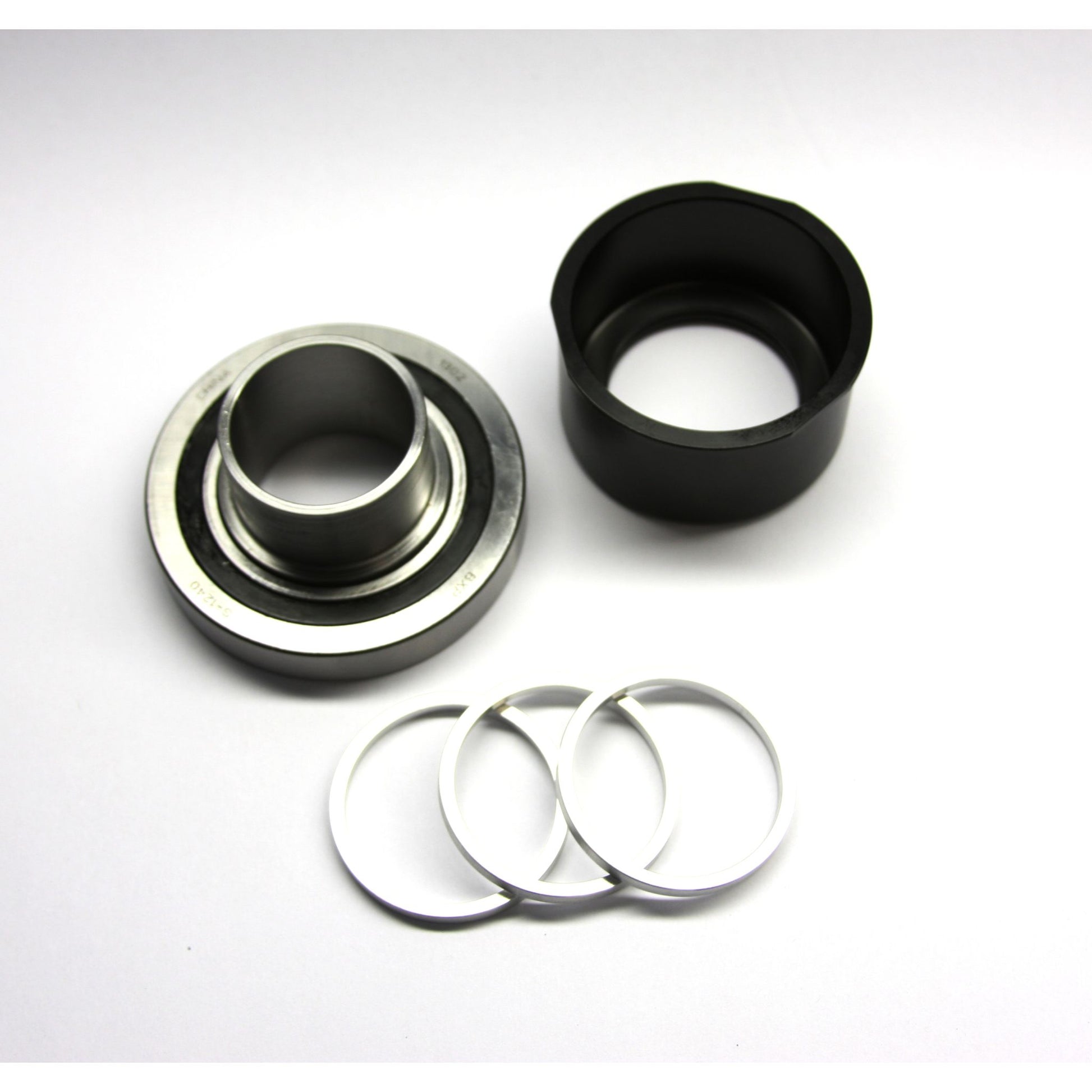

McLeod Piston:Hydraulic Bearing:Adjustable:1300 Series: Tall Stack Height:Each 139079

McLeod Racing adjustable height pistons help maintain proper mechanical linkage geometry. Each of their offered selections presents three variable height locations--and they utilize angular contact, constant-running bearings for long life and durability. McLeod adjustable height pistons are exclusive piston replacements for their bolt-on style bearing.

• This tool allows you to dis-connect GM Quick Discconnect fittings that are married to each other.

Attributes:

• GTIN: 00887753675279
• Brand Name: McLeod
• Height 0 Spacers: 3.280In.
• Height 1 Spacers: 3.425In.
• Height 2 Spacers: 3.585In.
• Height 3 Spacers: 3.735In.
• Bearing Face OD (in): 3.00In.
• Bearing Face ID (in): 1.59In.
• Bearing Thickness: 0.500In.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 6 x 6 inches
• Weight: 4 lb
