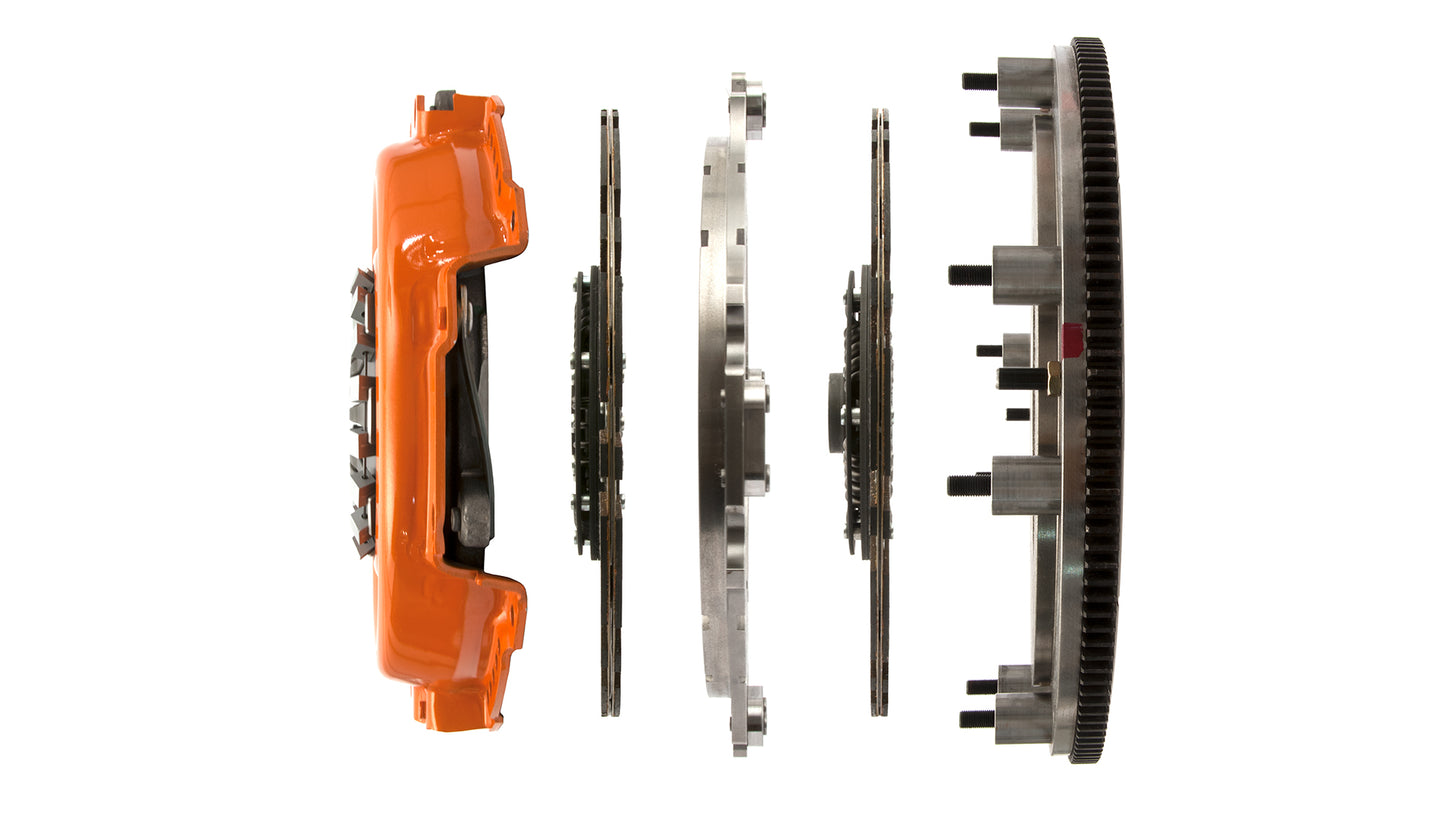

PN: 519026651 - Centerforce Diesel Twin and Flywheel Kit

Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.

• 12.250" Diameter;

Attributes:

• GTIN: 00788442033779
• Brand Name: Centerforce
• Clutch Bolt Pattern6: 22
• Clutch Disc Diameter8: 12.25
• Counterweight Assist2: YES
• Crankshaft Bolt Hole Quantity7: 8
• Disc Material4: Organic/Carbon Composite
• Disc Type Sprung Solid: Sprung
• Disc Type5: Segmented face
• Flywheel Counter Balance Weight7: 0
• Flywheel Crank Bolt Size1: 12mm
• Input Shaft Diameter1: 1/3/2008
• Input Spline Quantity3: 10
• Material2: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
• Ring Gear OD7: 15.625
• Tooth Quantity: 152
• Torque Capacity: 1700

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19 x 18.5 x 15 inches
• Weight: 114.8 lb
