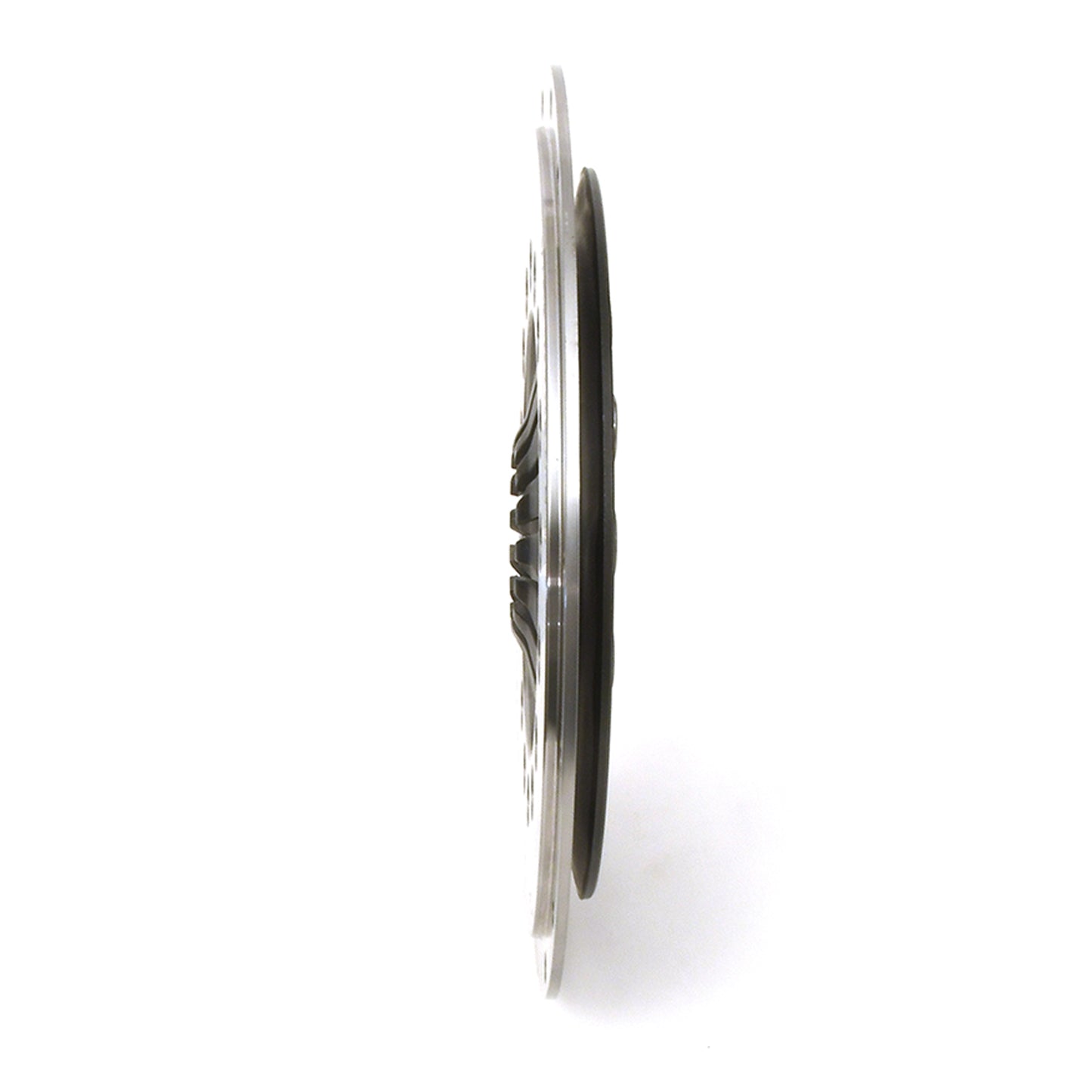

PN: 827231520 - DYAD XDS 8.75 Clutch and Flywheel Kit

The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

• 8.75" Diameter;

Attributes:

• GTIN: 00788442031249
• Brand Name: Centerforce
• Clutch Disc Diameter8: 8.75
• Counterweight Assist2: No
• Crankshaft Bolt Hole Quantity7: 7
• Disc Material4: Sintered Metallic
• Disc Type Sprung Solid: Solid
• Disc Type5: Full face
• Input Shaft Diameter1: 1
• Input Spline Quantity3: 23
• Material2: Cerametallic
• Out of Package Weight: 22.3
• Torque Capacity: 400-600

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 18 x 5.5 inches
• Weight: 24.5 lb
