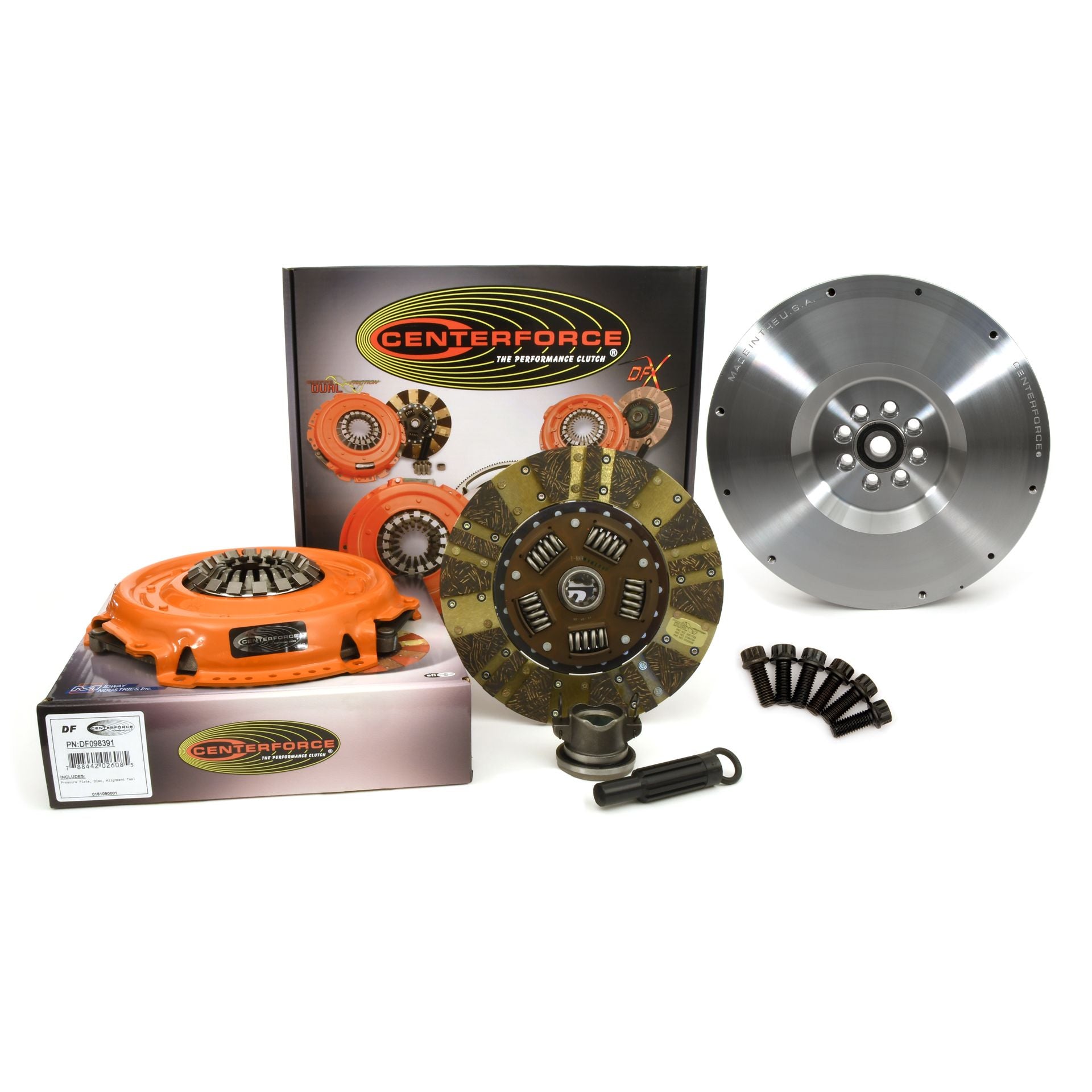

PN: KDF148174 - Dual Friction Clutch and Flywheel Kit

This Centerforce(R) Dual Friction(R) Full Kit with flywheel is engineered for off-road enthusiasts who are looking for the ultimate on and off road performance clutch. The Dual Friction clutch set features the patented Centerforce centrifugal weight system and specialized machining processes to provide outstanding holding-capacity and exceptional street characteristics without sacrificing pedal effort. The high inertia billet steel flywheel helps the engine maintain RPM's in rough terrain.

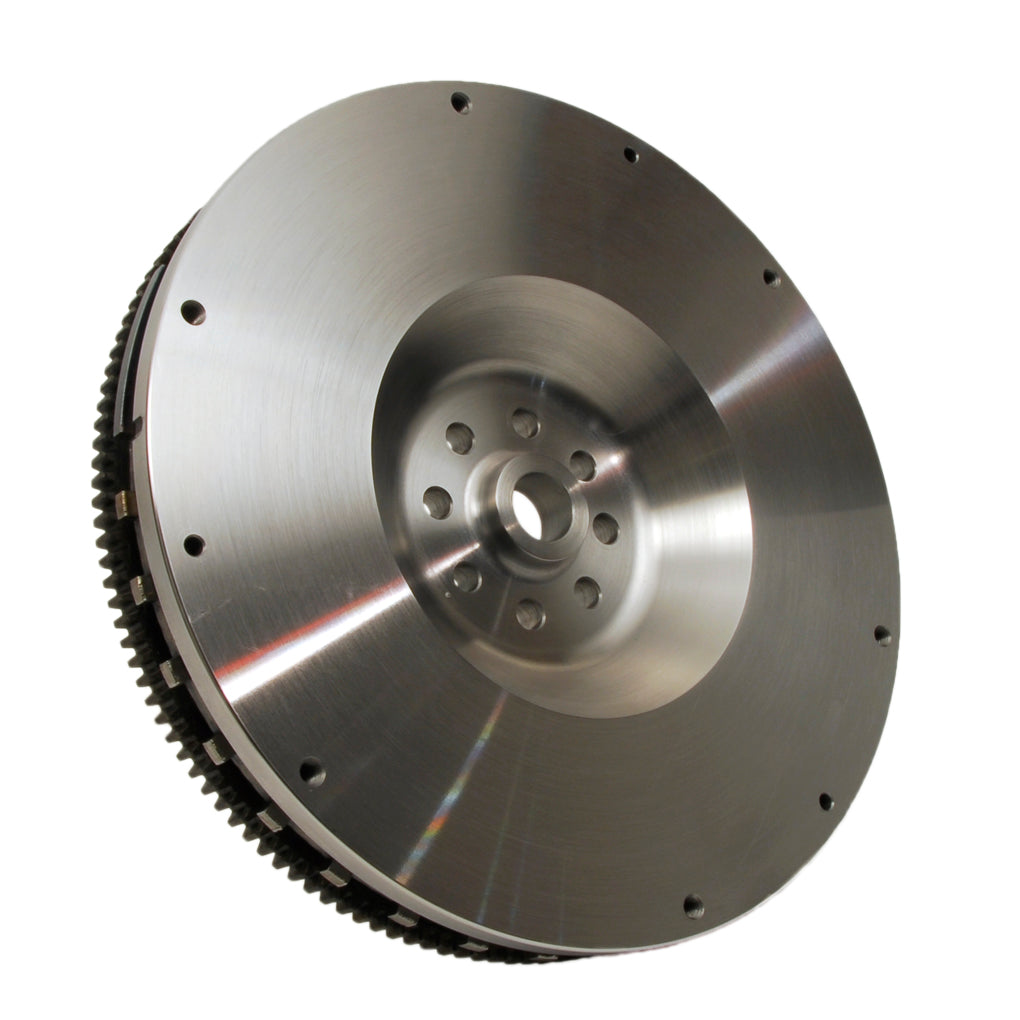

• High inertia billet steel flywheel;

Attributes:

• GTIN: 00788442030709
• Brand Name: Centerforce
• Clutch Bolt Size5: 8mm
• Clutch Bolt Type4: Shouldered
• Clutch Disc Diameter8: 10.4
• Counterweight Assist2: YES
• Crankshaft Bolt Hole Quantity7: 8
• Disc Material4: Organic/Carbon Composite
• Disc Type Sprung Solid: Sprung
• Disc Type5: Segmented face
• Dowel Pin Quantity Cover To Flywheel1: 3
• Flywheel Counter Balance Weight7: 0
• Flywheel Crank Flange Register8: 1.889
• Input Shaft Diameter1: 1/1/2008
• Input Spline Quantity3: 10
• Material2: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
• Out of Package Weight: 83.6
• Ring Gear OD7: 12.345
• Tooth Quantity: 146
• Torque Capacity: 563

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 18 x 5.5 inches
• Weight: 80 lb
