PPE 2007-2024 GM 1500 Tie Rod Kit 158207000
PPE 2007-2024 GM 1500 Tie Rod Kit 158207000
PACIFIC PERFORMANCE ENGINEERING:
Part #
PPE-158207000
UPC #
840171223699
Product Description
Product Description
These tie rods are overkill for some, but when it comes to steering components, failure is not an option.
These tie-rod assemblies provide incomparable strength and durability to your truck steering system. It features a 32% larger-diameter forged sleeve, 27% larger-diameter toe adjusting shaft, and 14% larger, stronger ball studs. The outer tie rod end features a spring-loaded ball-stud seat that maintains constant pressure and OEM steering knuckle taper. The inner tie rod end is adjustable through the end cap and contains a powdered metal ball seat as well as a rubber shim for clearance compensation.

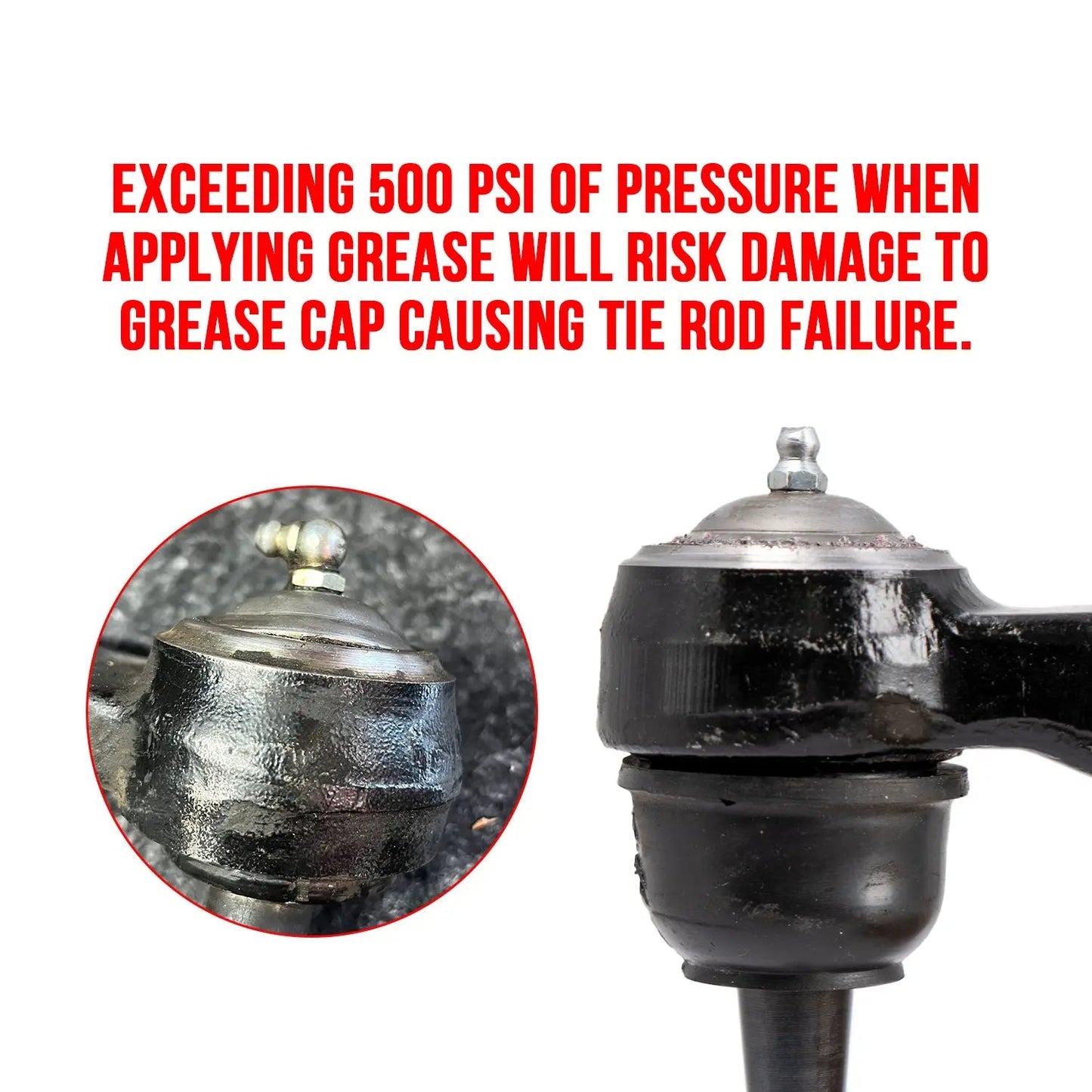

NOTICE: Do not exceed 500 PSI of pressure when applying grease will risk damage to grease caps causing tie rod failure and will result in voiding your warranty.
NOTICE: PPE Tie Rods are engineered to fit GM stock steering components. Some aftermarket steering manufacturers have changed the placement of the tie rod mounting perch on the front spindle, which then requires a shorter tie rod. The Stage 3 Tie Rod outers are fully threaded internally and may be trimmed to accommodate the relocated aftermarket perch location. An experienced installer should measure to determine the appropriate trim length.
Overextending the tie rod angle might cause damage to the inner tie rod or outer ball stud retaining assembly. Common causes include steep tie rodsteering rack angles, and overextension of modified suspensions.
OEM equivalent part numbers:
158207000 15254061 and 19178561
158214000 22868912 and 22834082
158219000 84179763, 84179762 and 84674099
