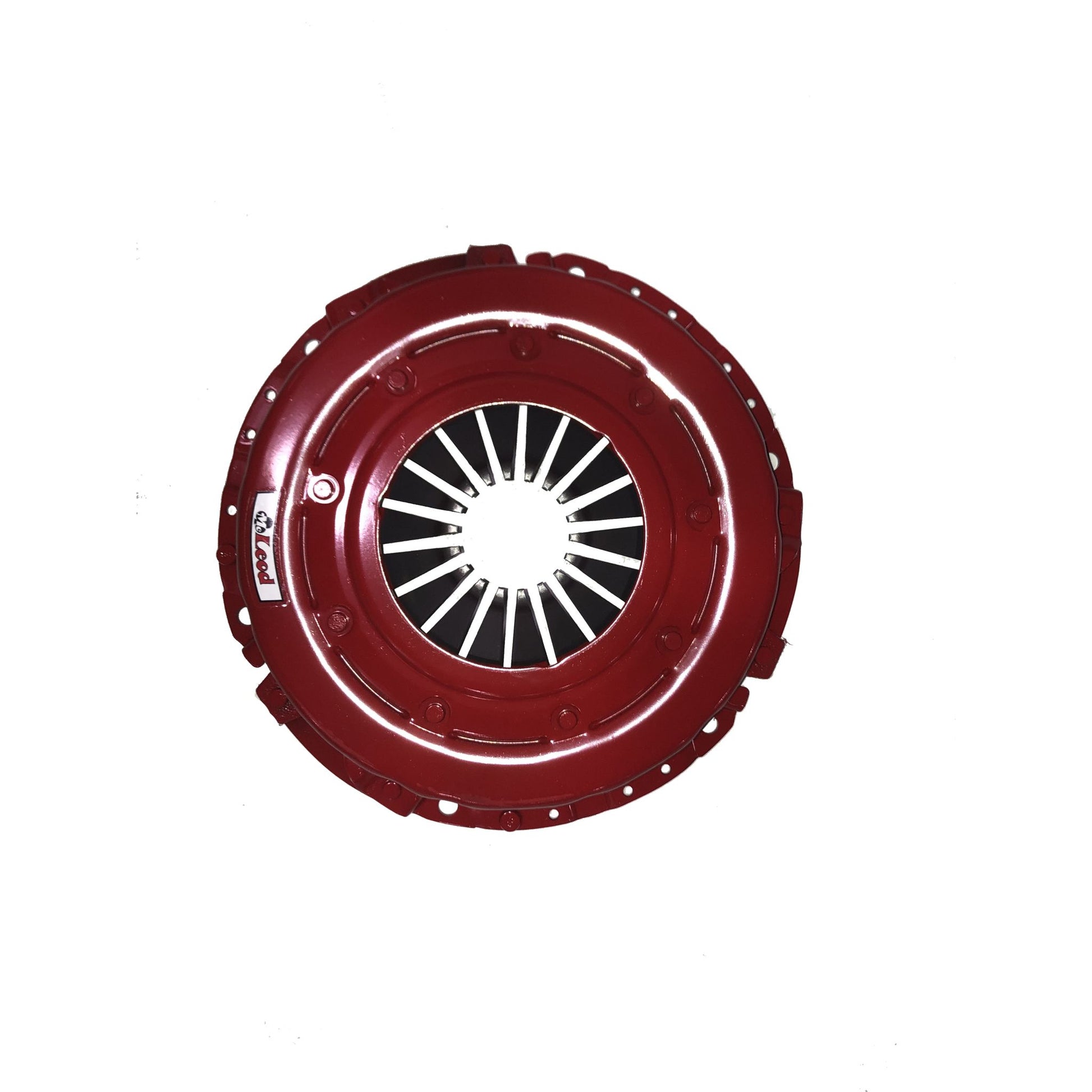

McLeod Pressure Plate:Diaphragm: 10.5" B&B Pattern: #2900 :GM/Mopar: Each 360700

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

Attributes:

• GTIN: 00887753018762
• Brand Name: McLeod
• Make: GM, Mopar, AMC
• Application: GM, Mopar, AMC
• Diameter Pressure Plate: 10.5In.
• Pressure Plate Pattern: Borg & Beck Even Pattern
• Bolt Circle: 11-5/8In.
• Clamp Load: 2750 Lbs
• Centrifugal Assist: No
• Bolt Holes Dia: 3/8 x 16
• Dowel Pins Required: No
• Mounting Hardware Included: No
• SFI Approved: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 13.25 x 3.25 inches
• Weight: 20 lb
