PROJECT X - GHOST BOX (1 KEYPAD + 4 MODULES) GB538823-1
PROJECT X - GHOST BOX (1 KEYPAD + 4 MODULES) GB538823-1
PROJECT X:
Part #
PROJECTX-GB538823-1
UPC #
00840005388235
Regular price
$1,169.99 USD
Regular price
$1,544.00 USD
Sale price
$1,169.99 USD
Unit price
/
per
Product Description
Product Description

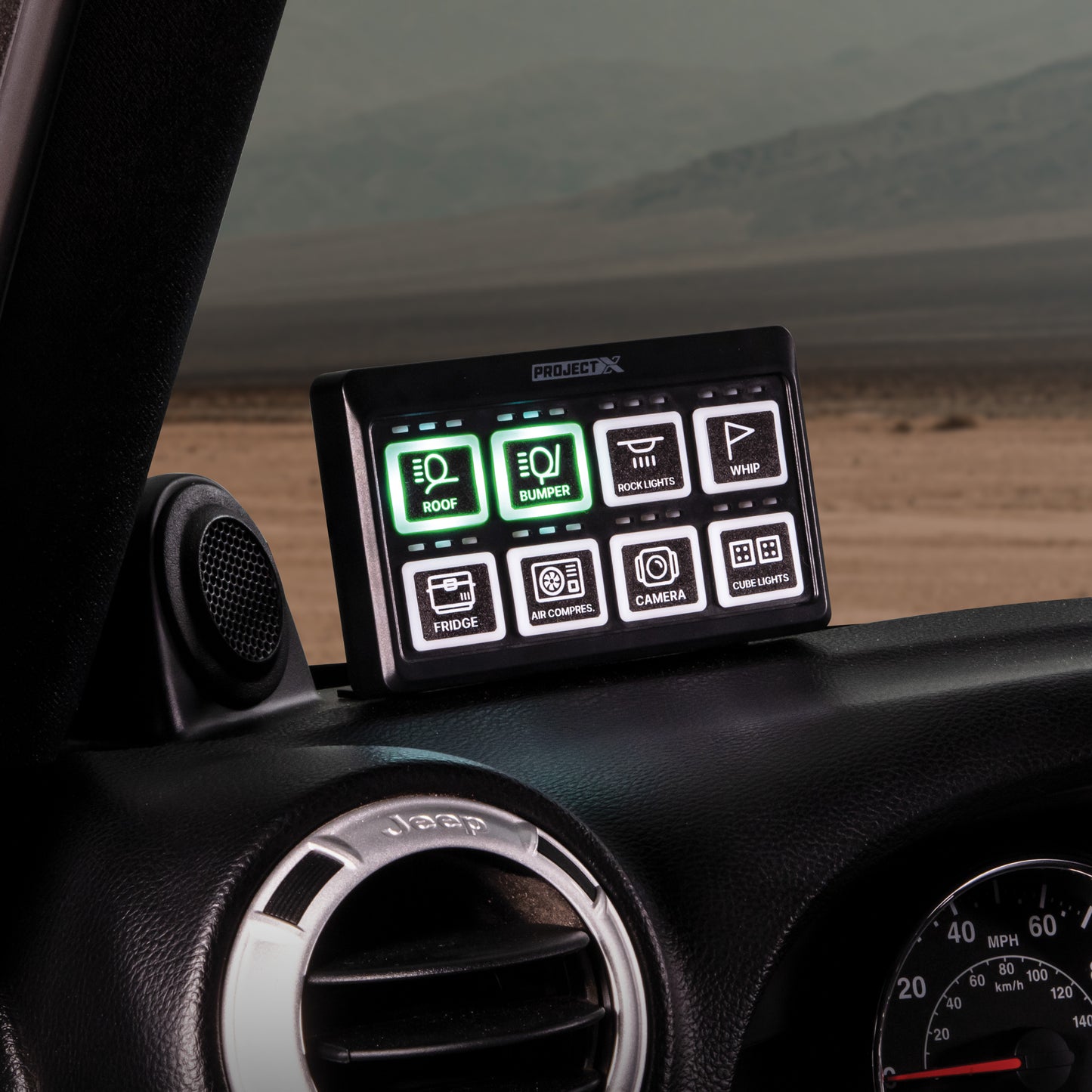

Accessory control redefined - The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes 4 two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up timers, scenes, and much more. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.
- Fully Customizable Ecosystem - The PROJECT X Ghost Box allows you to create a fully customizable ecosystem using our PROJECT X app. Create lighting scenes, preset colors, control groups, timers and more.
- Make Any Accessory Smart - Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem
- Wireless Control - Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab - simply tap the control pad to power and go!
- ?Wired? Reliability, Wireless Freedom - Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.
- Dual Circuit - Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.
- Easy to Pair - Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
- Expand your control - Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed.
Attributes
Attributes
- GTIN: 00840005388235
- Brand Name: PROJECT X
- Add-On: GB538825-1
- Amperage Rating (per Module).UOM: A
- Amperage Rating (per Module): Circuit 1: 20 Amps, Circuit 2: 40 Amps
- Circuit Terminal Gender5: Female
- Circuit Terminal Quantity (Per Module)6: 6: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
- Circuit Terminal Type4: Screw Terminal
- Connector Quantity (Keypad)2: 1
- Connector Type (Keypad)1: RJ45
- Control Method2: App (IOS & Android) or Wireless Keypad
- Hardware Included2: Yes
- Hardware Material3: Stainless
- Height - Control Module with Antennas.UOM9: IN
- Height - Control Module with Antennas8: 6.3
- Height - Control Module without Antennas.UOM1: IN
- Height - Control Module without Antennas0: 1.4
- Height - Keypad.UOM9: IN
- Height - Keypad8: 2.9
- Housing Color0: Black
- Housing Material9: Aluminum diecast
- Input Voltage Range.UOM: V
- Input Voltage Range: 9-16V DC
- Keypad Included3: Yes
- Keypad Wiring Harness Included8: Y
- Length - Control Module.UOM5: IN
- Length - Control Module4: 6.7
- Length - Keypad.UOM5: IN
- Length - Keypad4: 2.9
- Maximum Current (Keypad)0: 0.075 Amps @ 12V DC
- Maximum Wattage (Keypad)1: 0.9 Watts @ 12V DC
- Maximum Wire Size3: 8 AWG
- Mounting Hole Quantity1: 2
- Number of Circuits (Per Module): 2
- Number of Circuits (Total): 8
- Operating Temperature7: -22F to 149F
- Output Maximum Current (Control Module): Circuit 1: 20 Amps @ 12V DC, Circuit 2: 40 Amps @ 12V DC
- Output Maximum Power (Control Module): 480 Watts @ 12V DC
- Storage Temperature8: -40F to 185F
- Universal Or Specific Fit: Universal
- Waterproof Rating7: IP64
- Weight - Keypad.UOM1: LBS
- Weight - Keypad0: 0.5
- Weight - Per Control Module.UOM3: LBS
- Weight - Per Control Module2: 0.5
- Width - Control Module.UOM7: IN
- Width - Control Module6: 3.4
- Width - Keypad.UOM7: IN
- Width - Keypad6: 0.7
- Wireless Frequency4: 2.4GHz RF Wi-Fi & Bluetooth 5.0
- Wireless Range (Bluetooth)6: 33 Feet without interference or obstruction
- Wireless Range (RF Wi-Fi)5: 98.4 Feet without interference or obstruction
Extended Information
Extended Information
- Country of Origin: China
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14.8000 x 2.5000 x 12.8000 inches
- Weight: 4.2000 lb
