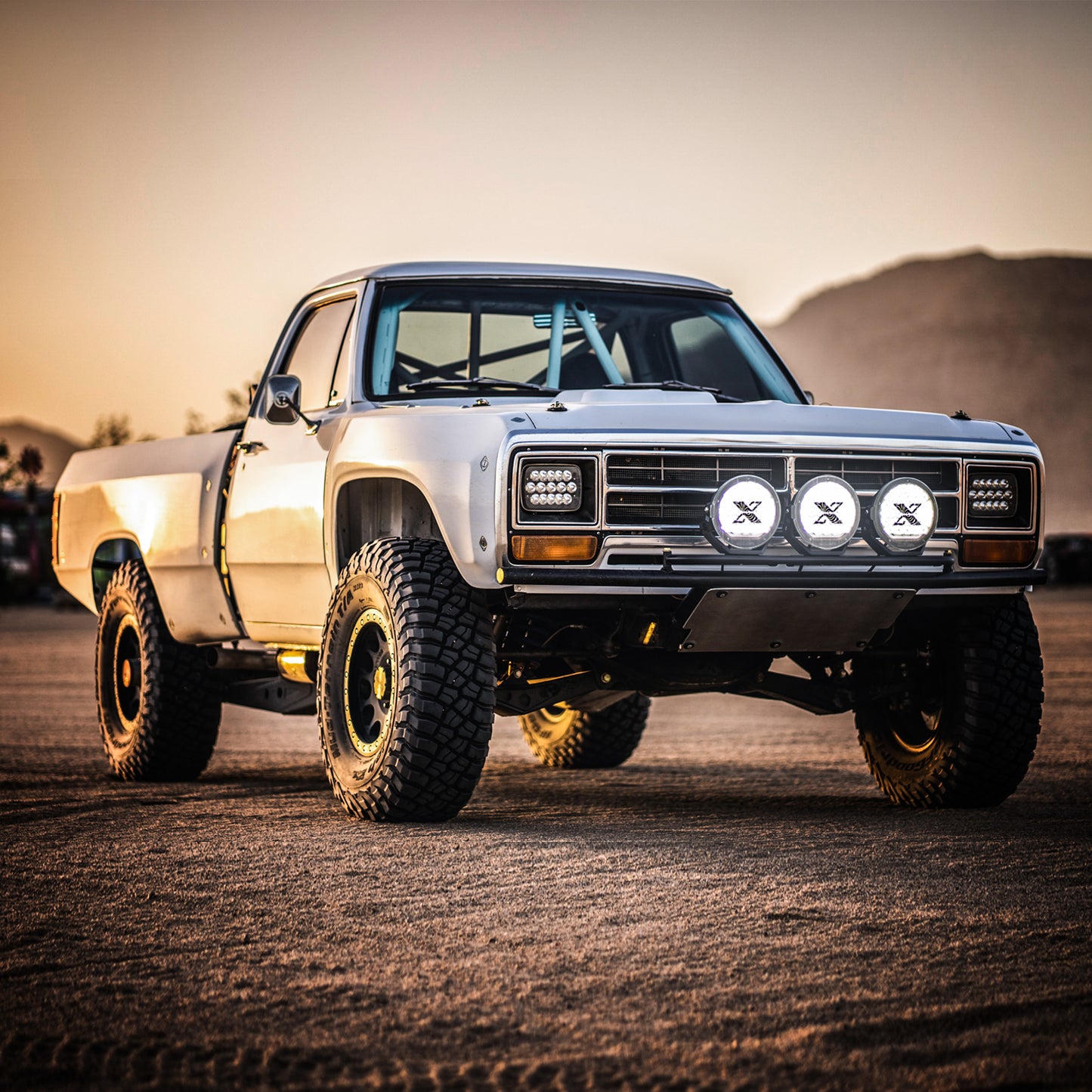

PROJECT X - SERIES X HP.85 - HIGH POWER 8.5 INCH LED AUXILIARY LIGHT - COMBO BEAM AL538805-1

PROJECT X - SERIES X HP.85 - HIGH POWER 8.5 INCH LED AUXILIARY LIGHT - COMBO BEAM AL538805-1

PROJECT X:

Part # PROJECTX-AL538805-1
UPC # 00840005388051

Regular price $584.99 USD
Regular price $772.00 USD Sale price $584.99 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Connect with the Wild with the Project X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam. Featuring an integrated Active Thermal Management System (ATMS), the HP.85 delivers 165 watts of pure white light (5700K) in a broad penetrating beam of light.
  • Unparalleled Performance - 5-Watt High Power Osram-LEDs producing 165W of pure white light (5700K)
  • Integrated Heat Management - Built-in Active Thermal Management System (ATMS) enables the HP.85 to run harder for longer
  • Best in Class Power - 21,780 raw lumens (15,410 effective) per light
  • Superior Optics - Highly Polished super-efficient aluminum metalized reflector utilizing precisely scalloped parabolas for ultimate control and performance
  • LED Front Position Light - Signature built-in LED light meets ECE requirements for front position light improving daytime driving visibility and safety
  • Customizable Appearance - Customise the look of your Series X HP.85s with your choice of 3 inner trim pieces, including ?Brocky? Blue, ?Dragon? Red and ?Project X? Green.
  • Unique Fit & Adjustment - Tool free vertical adjustment allows on-the-fly beam correction via ergonomic adjuster knob. The mounting system utilizes polyurethane bushings to suspend the light making it impervious to shock and vibration.
  • Engineered to Survive - Constructed from light weight super strong Pressure Die Cast Aluminum, uncompromised strength and rugged durability
  • Protected from the Elements - Fully sealed against water and dust intrusion (IP66 & IP67) utilizing a genuine Gore-Tex? breather vent and integrated Deutsch? connectors
  • Durable Lens Design - Virtually unbreakable hard coated and UV resistant polycarbonate lens and lens protectors for rock and debris protection
  • GTIN: 00840005388051
  • Brand Name: PROJECT X
  • Add-On: AC538812-1
  • Add-On: AC538813-1
  • Beam Length (1 lamp)6: 1 lux @ 2536 Feet
  • Beam Length (2 lamps)7: 1 lux @ 3585 Feet
  • Beam Width (1 lamp)8: 1 lux @ 67 Feet
  • Beam Width (2 lamps)9: 1 lux @ 285 Feet
  • Bezel Color3: ?Brocky? Blue, ?Dragon? Red and ?PROJECT X? Green
  • Bulb Color2: White
  • Bulb Quantity1: 33
  • Bulb Technology9: LED
  • Bulb Type0: Osram LEDs
  • Color Rendering Index3: 72
  • Connector Gender1: Male
  • Connector Quantity2: 1
  • Effective Lumens2: 15410
  • EMC6: ECE R10
  • Hardware Included6: Yes
  • Hardware Material7: Stainless Steel
  • Heat Management4: Active Thermal Management System
  • Height.UOM6: IN
  • Height5: 9.3
  • Housing Color1: Black
  • Housing Finish2: Powder Coat
  • Housing Material0: Pressure die-cast aluminum
  • Input Voltage Range.UOM: V
  • Input Voltage Range: 9 - 33V DC
  • IP Rating4: IP66 & IP67
  • Lamp Current Draw @ 12V: 12.5 Amps
  • Length.UOM2: IN
  • Length1: 8.5
  • Lens Color8: Clear
  • Lens Diameter.UOM0: IN
  • Lens Diameter9: 8.5
  • Lens Material7: Hard coated Polycarbonate
  • Light Beam Pattern: Combo
  • Light Color Temperature.UOM5: K
  • Light Color Temperature4: 5700
  • Light Output in Watts0: 165 Watts
  • Mounting Hole Quantity5: 3
  • Operating Temp3: -40?F to 149?F
  • Positional Light Current Draw @ 12V: 0.17 Amps
  • Protection5: Reverse Polarity Protection
  • Push or Twist Type0: Push
  • Raw Lumens1: 21780
  • Shape: Round
  • Street Legal8: Offroad Use Only
  • Terminal Gender3: Female
  • Terminal Quantity9: 1
  • Terminal Type8: Deutsch DT 3-pin
  • Total Current Draw @ 12V: 14.5 Amps
  • Universal Or Specific Fit: Universal
  • Wattage Draw @ 12V DC: Driving Light - 173 Watts, Position - 1.6 Watts
  • Wattage.UOM: W
  • Weight.UOM8: LBS
  • Weight7: 7.05
  • Width.UOM4: IN
  • Width3: 4.4
  • Wire Quantity4: 3
  • Wiring Harness Included5: Y
  • Country of Origin: Taiwan
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 12.0000 x 11.7500 x 7.3750 inches
  • Weight: 8.8594 lb
