Heatshield Products Protects wastegate diaphragm, Rugged lava rock fiber, Rated for 18F 300874

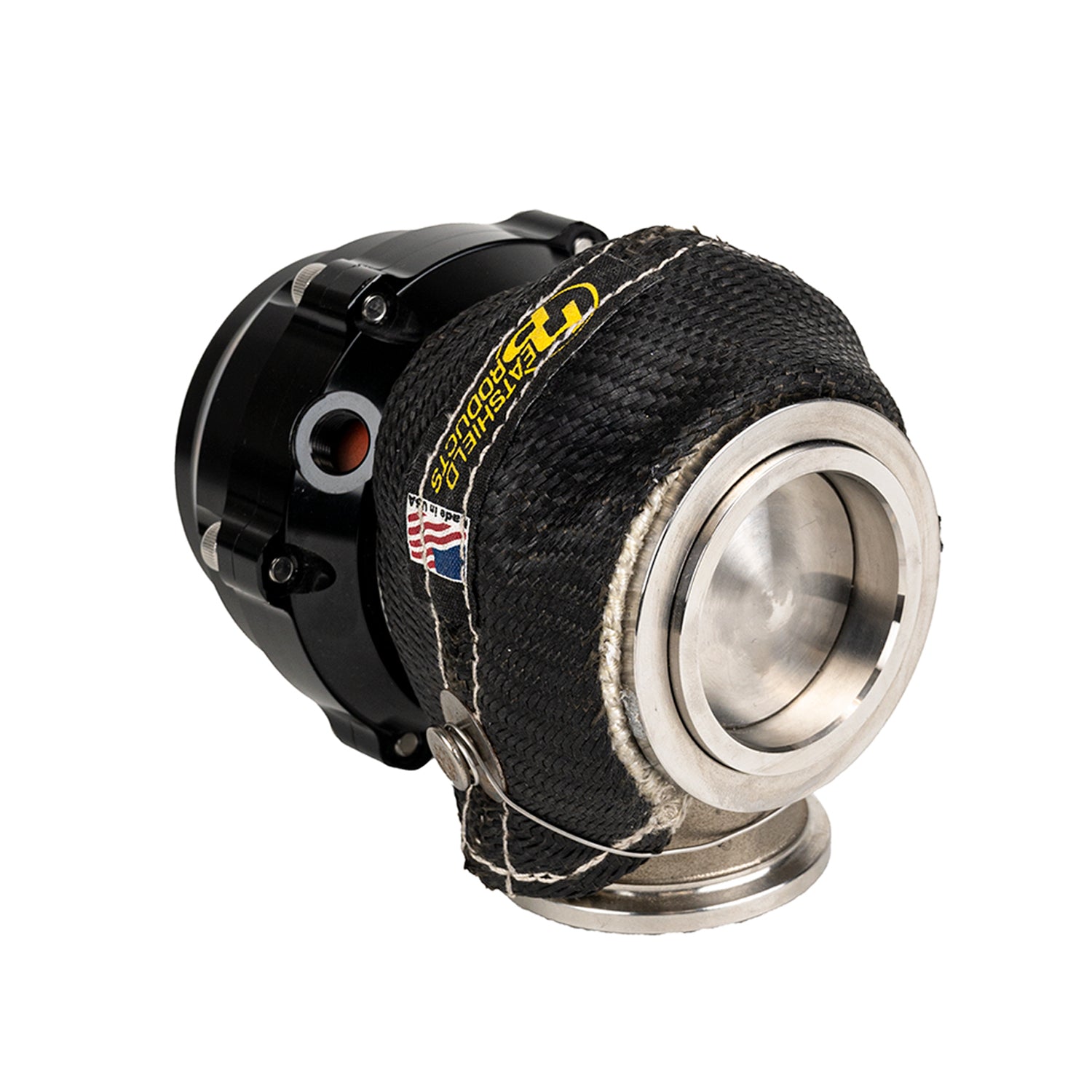

The Heatshield Products Stealth(TM) Wastegate Heat Shield is a specially designed thermal barrier to protect the turbocharger wastegate actuator and its critical internal components from the excessive heat exposure it's subjected to from the exhaust side of the turbo. Protecting the wastegate from heat exposure increases the wastegate diaphragm life, and more consistent actuation of the wastegate by insulating the diaphragm from constant and extreme temperature changes that affect how quickly the wastegate opens and closes.

• Keeps the diaphragm from deteriorating due to heat cycles and helps with longevity
• Helps for more consistent and precise operation of the wastegate valve
• Increase turbo performance and consistency
• Easily installed and removed, even after countless heat cycles

Attributes:

• GTIN: 00819825018653
• Brand Name: Heatshield Products
• Color: Black
• Install Tips: Anchor Hooks
• Instructions Included: No
• Insulation Type: Product can be placed directly on turbine housing.
• Material: Proprietary Data
• Operating Temperature: 1800F
• Peak Temperature: 2200F
• Product Dimensions: 46-48 MM Wastegate
• Safety Equipment Warning: Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product.

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 2.874 x 1.25 inches
• Weight: 0.3 lb
