Quick Click Male Fitting to Metric Banjo

Quick Click Male Fitting to Metric Banjo

BOOST Products USA

Part #
GA-QCMD06BJM10-B
UPC #
4250815809268

Black Friday Sale On All November Long! No Code Needed!

Regular price $21.18 USD
Regular price $21.18 USD Sale price $21.18 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

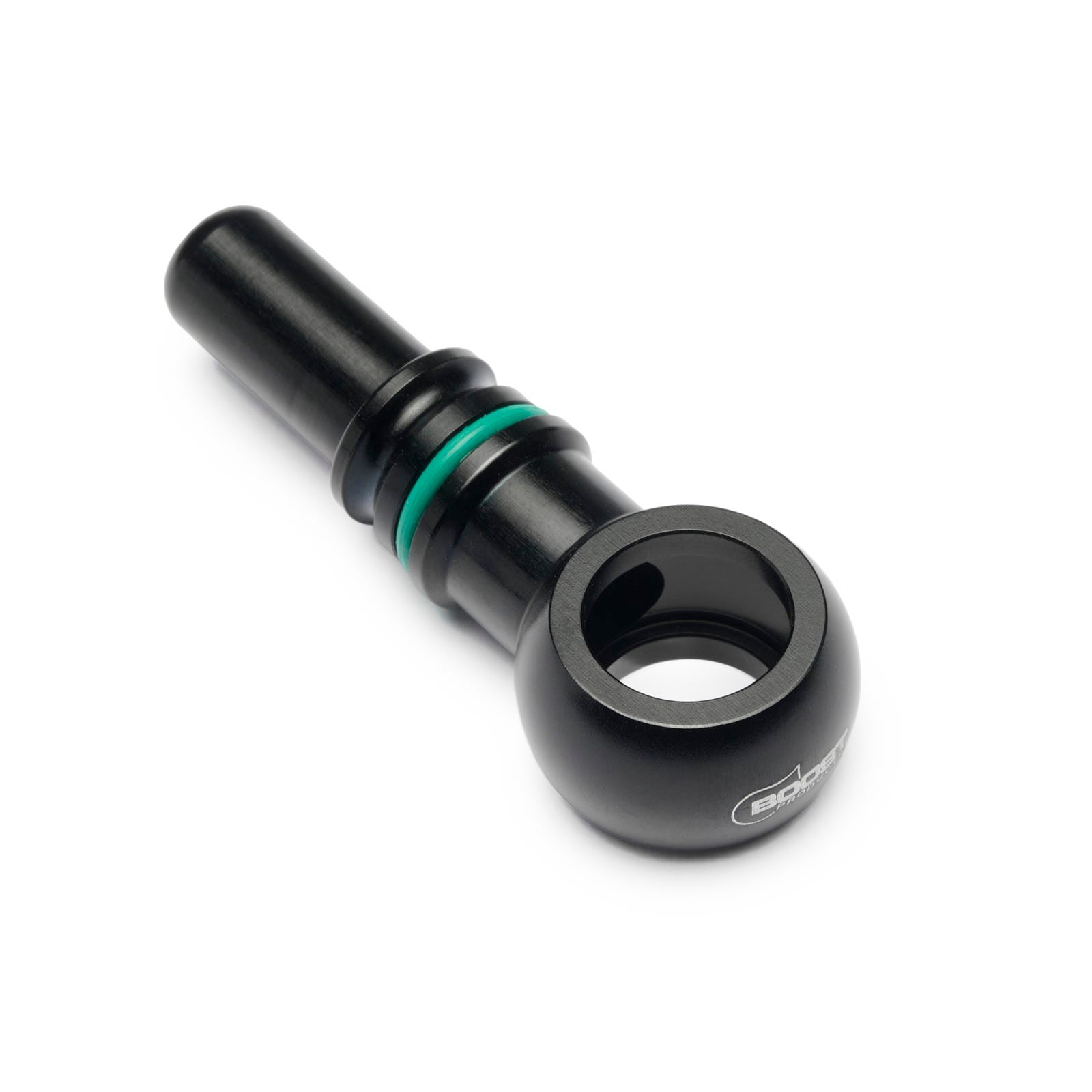

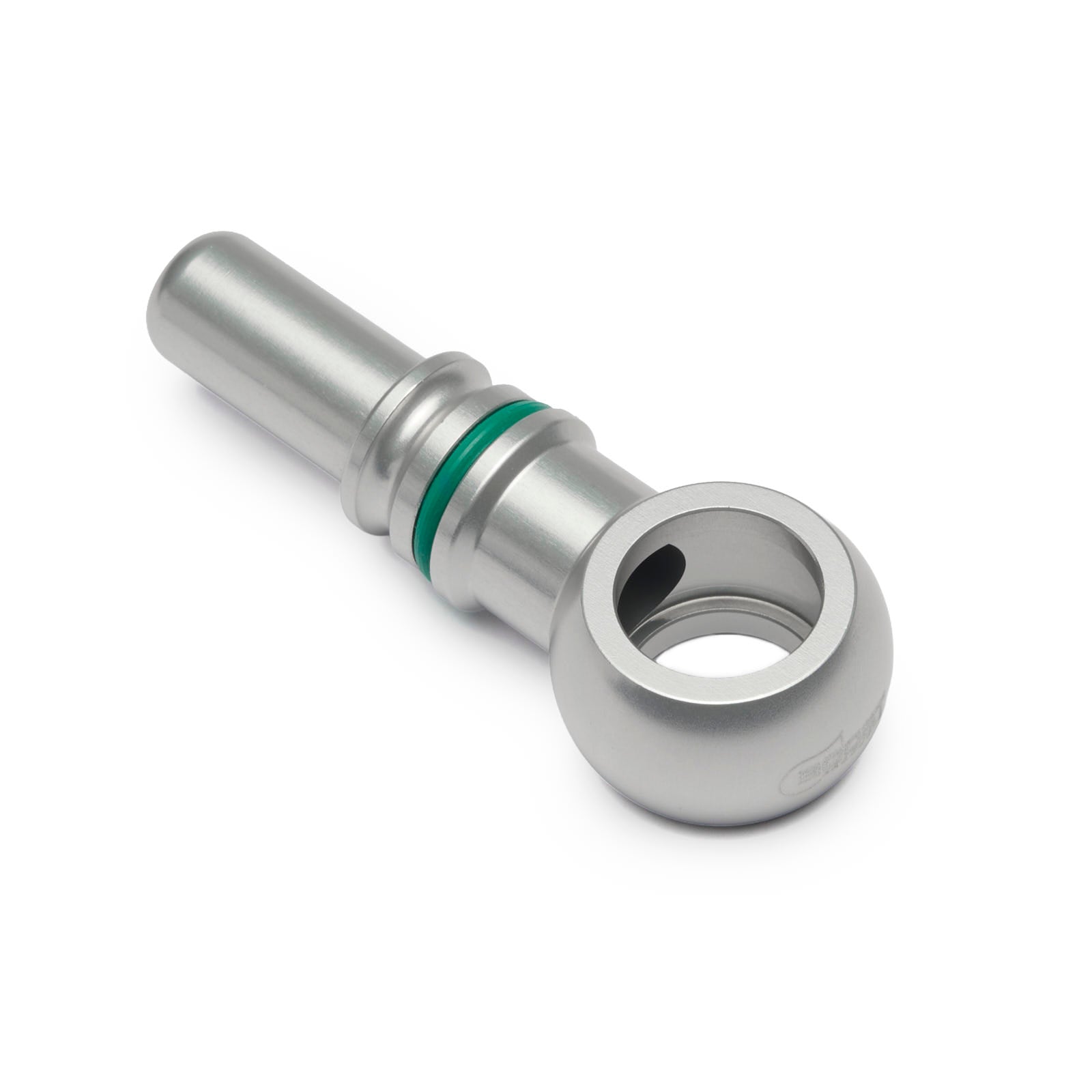

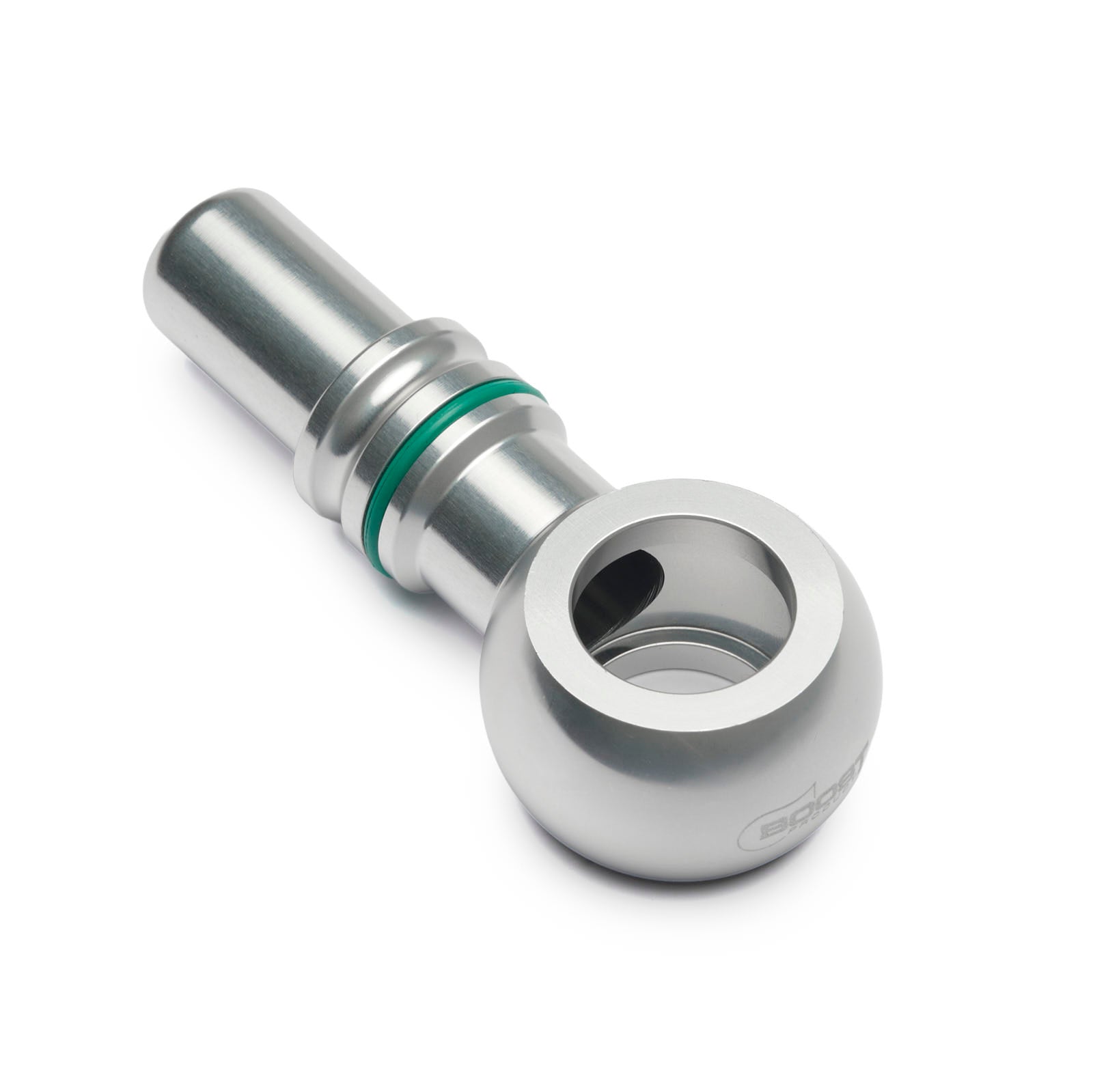

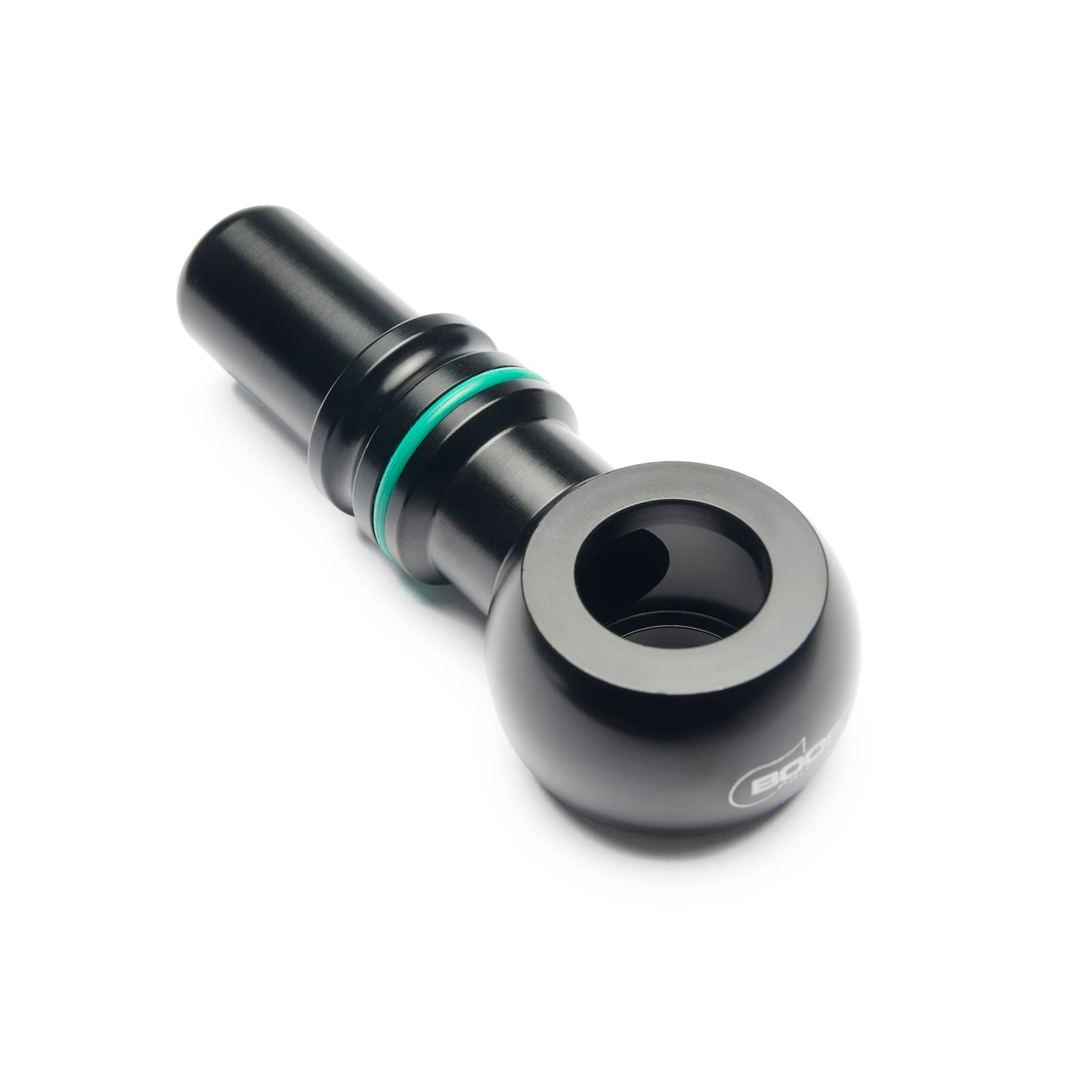

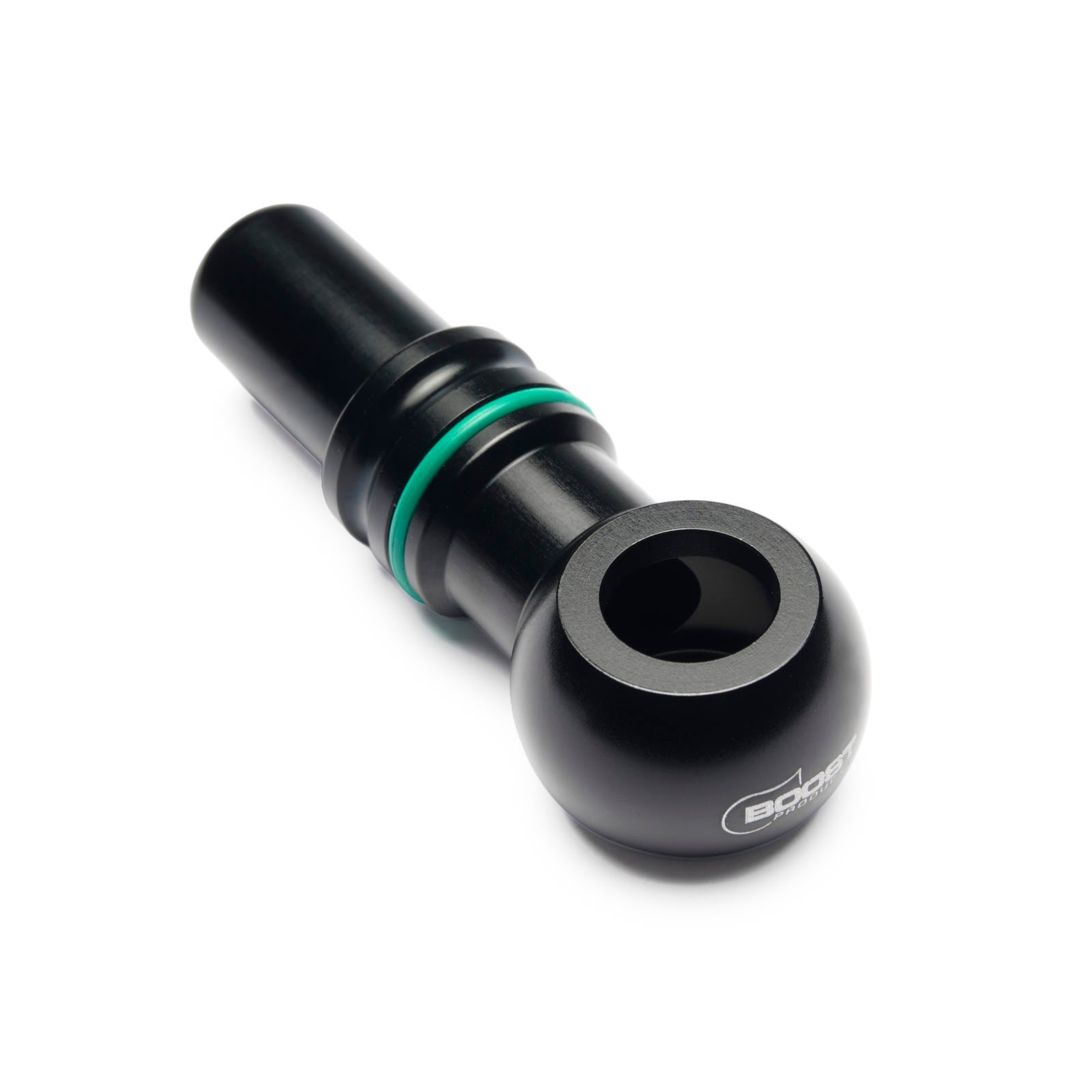

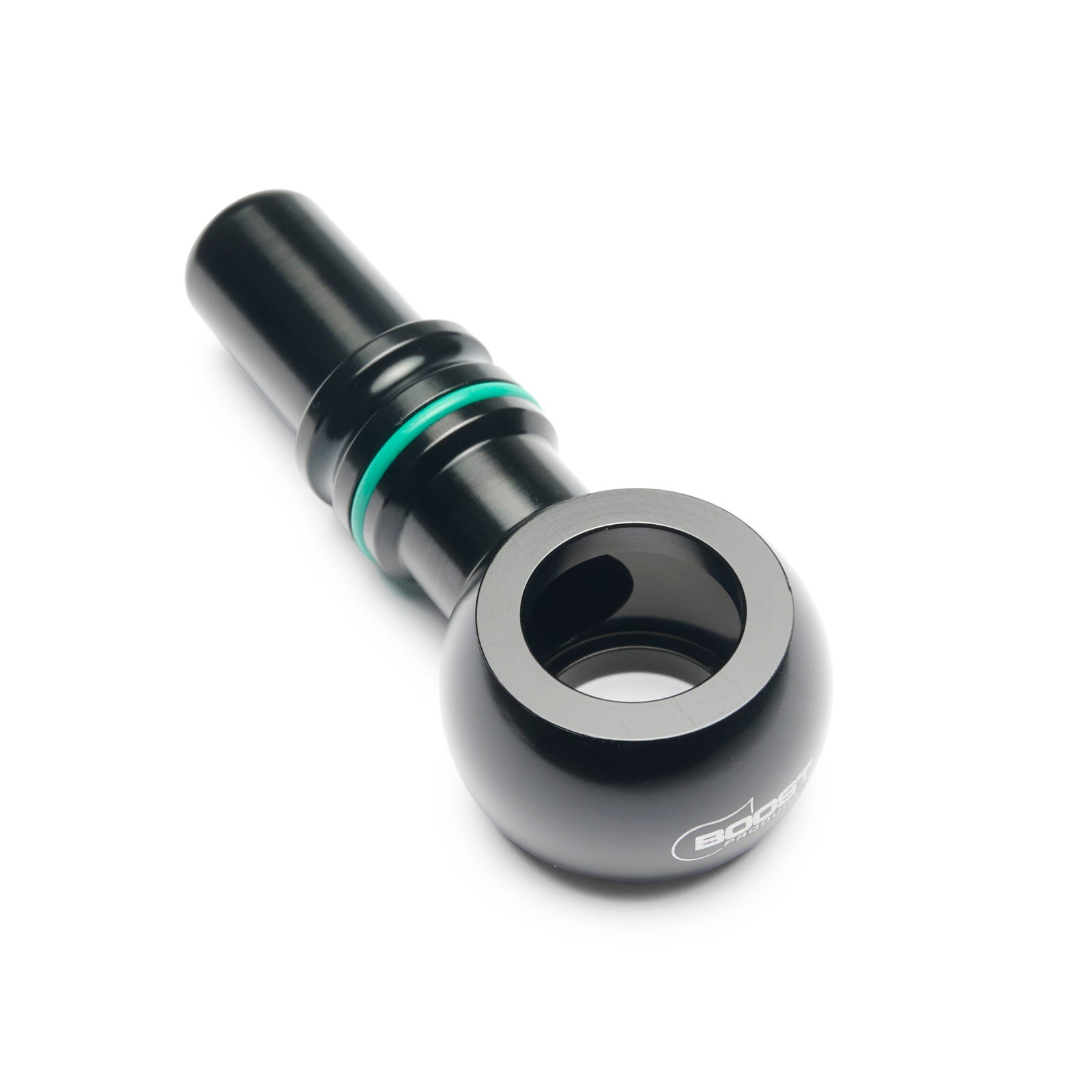

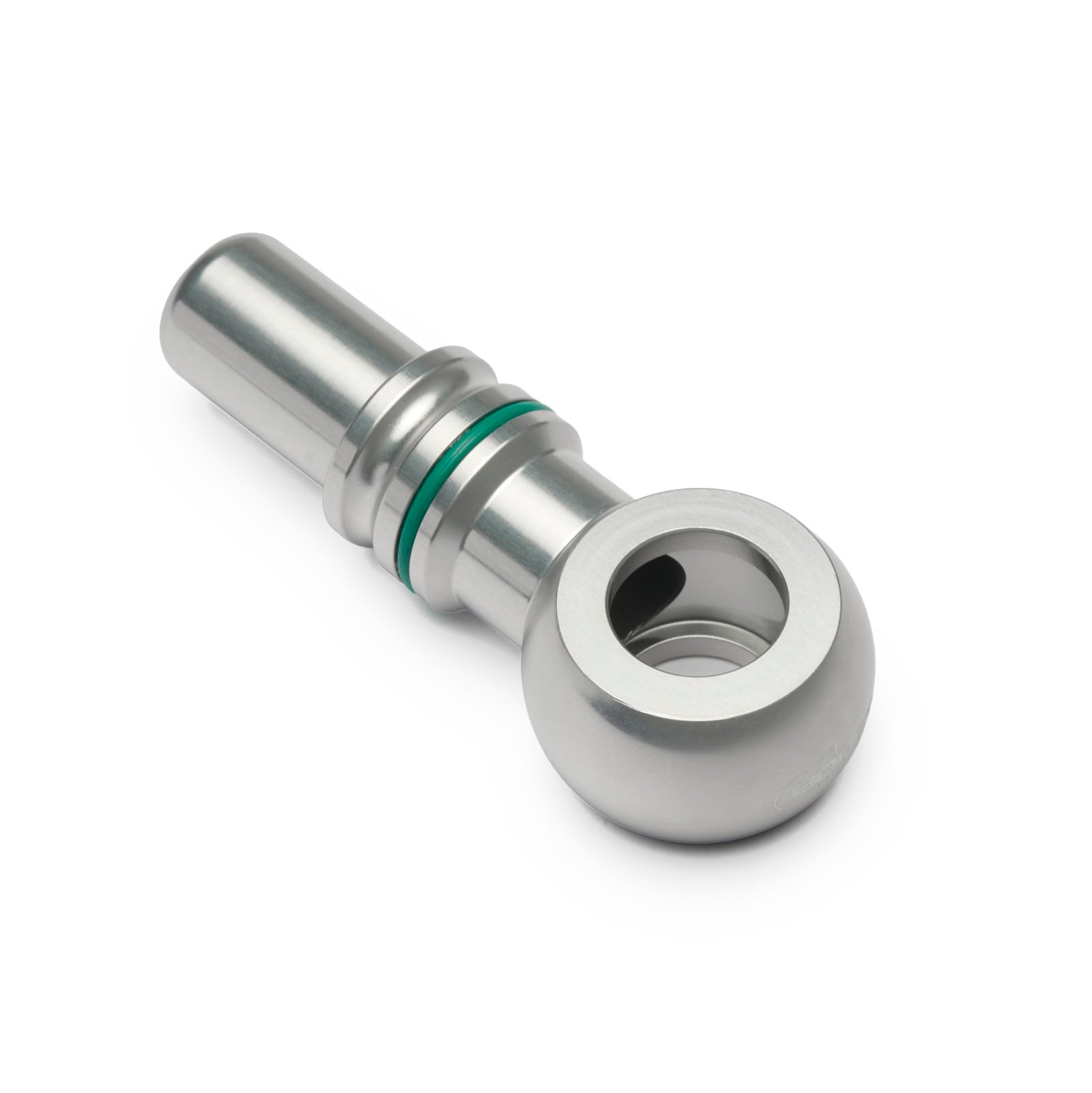

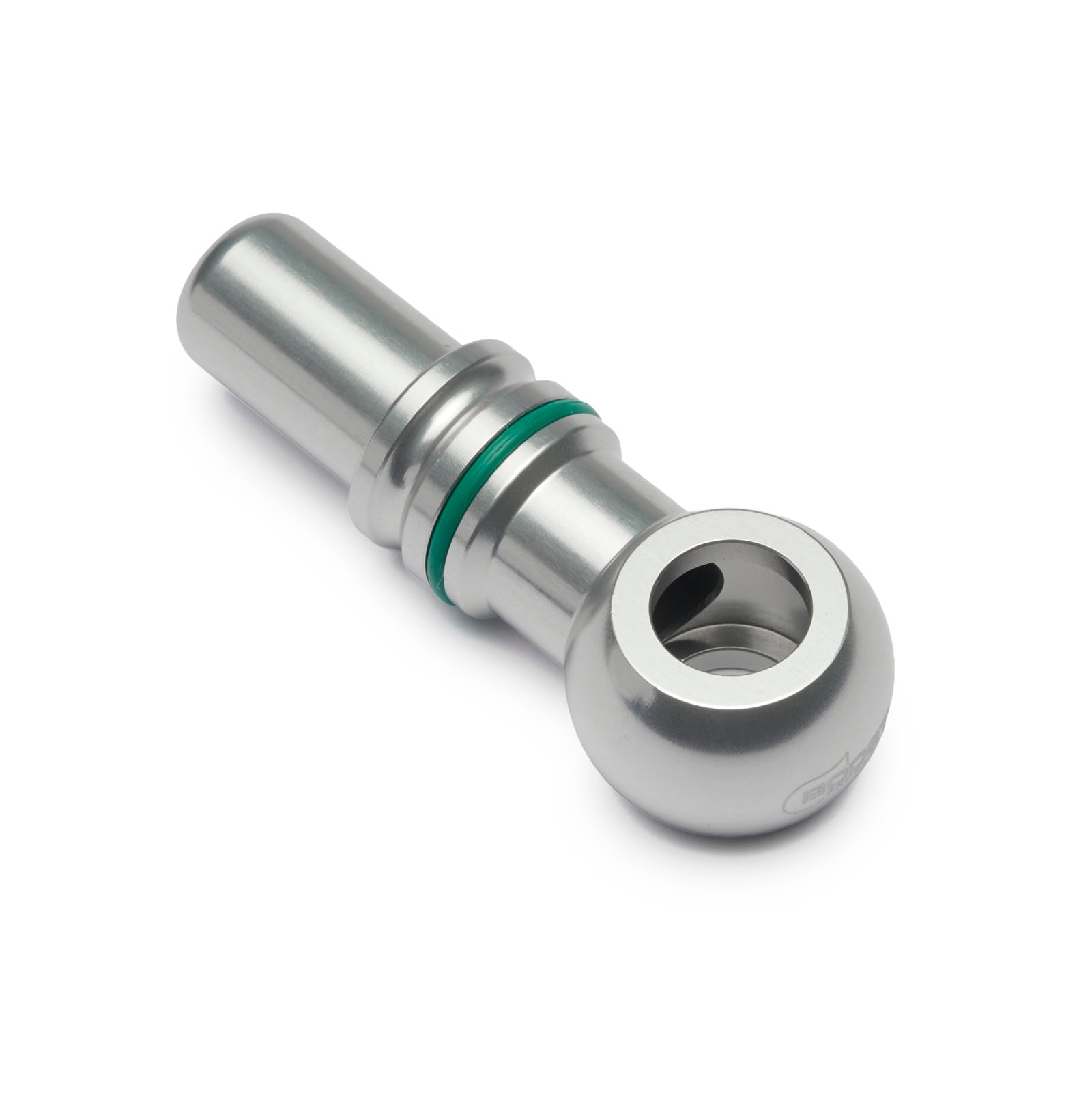

Quick Click Male Fitting to Metric Banjo

Quick Click is the BOOST Products quick disconnect system for AN lines. This fitting is the male part (pin) of the coupling. Connection on the other side: Metric Banjo. It connects to any Quick Click counterpart of the same dash size in seconds and without tools.

Important: Quick Click fittings are quick release, but not dry break. They do not seal when disconnected, so the fluid in the line will run out.

Key Features

  • Tool-free connection and disconnection
  • Leak-free when connected, full flow design
  • Suitable for fuel, oil, E85 and methanol
  • Lightweight anodized aluminum, CNC machined from 6061-T6
  • Temperature range -40 °C (-40 °F) up to 150 °C (302 °F)

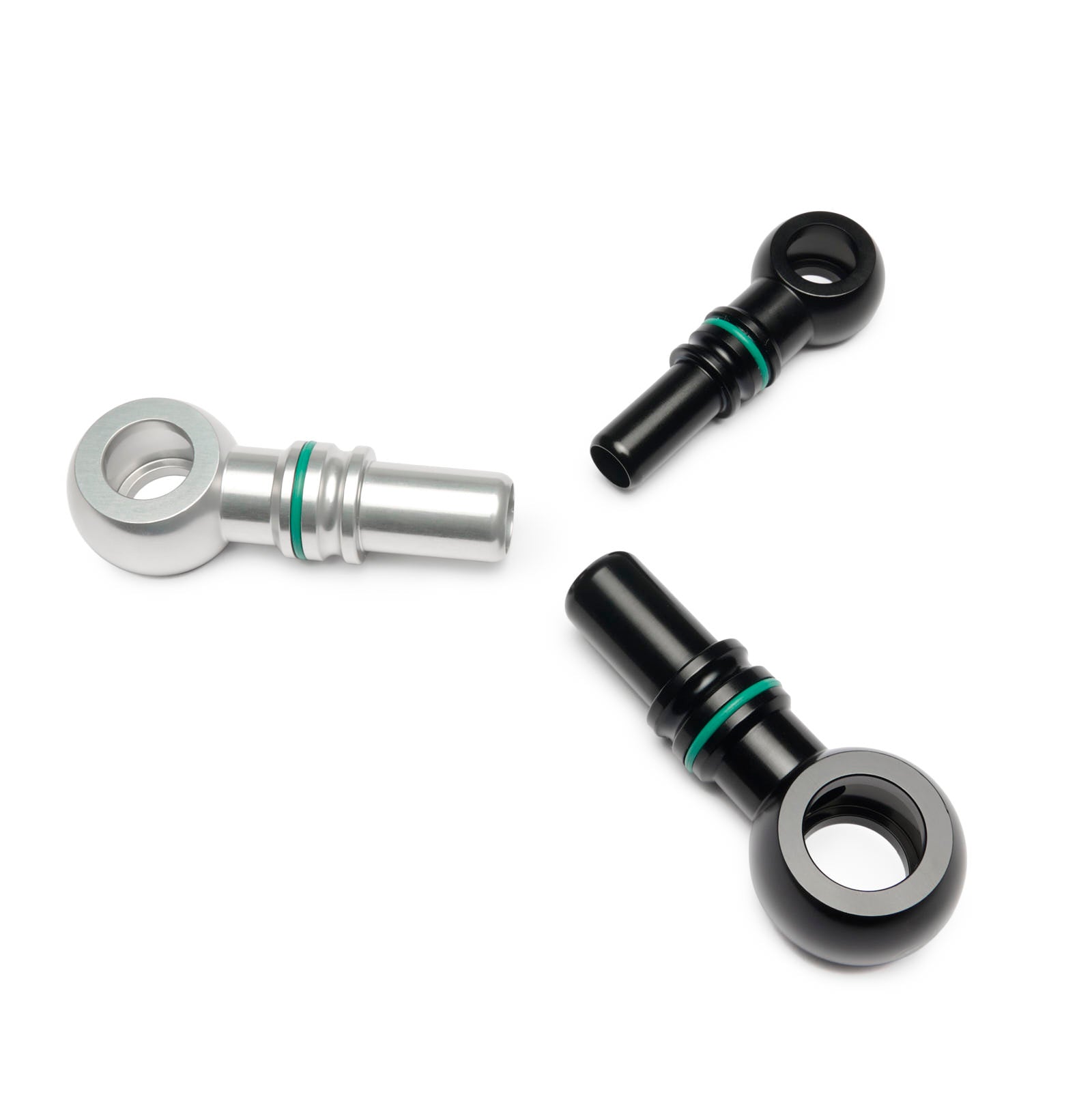

  • Finish: matte black or matte silver

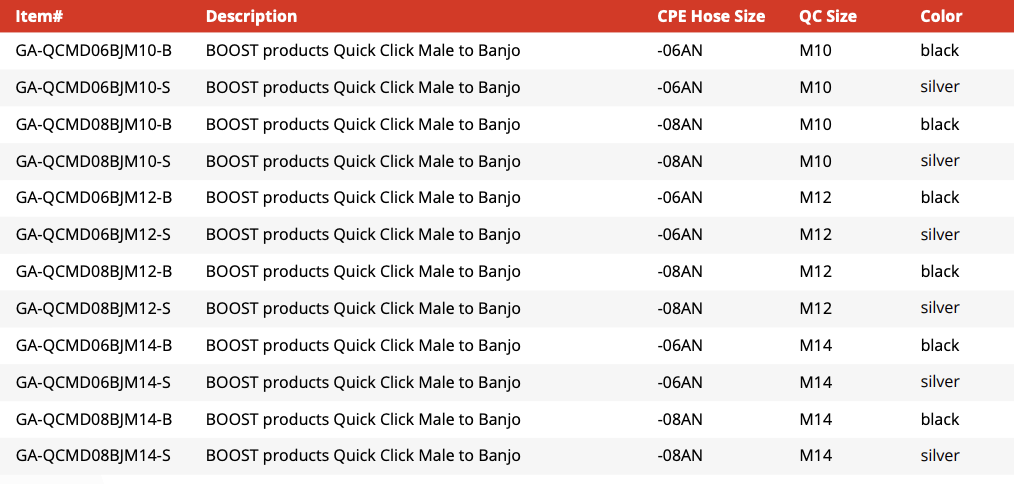

Available Sizes

Banjo Bolt size Quick Click size Burst pressure Part No. matte black Part No. matte silver
M10 -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06BJM10-B GA-QCMD06BJM10-S
M12 -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06BJM12-B GA-QCMD06BJM12-S
M14 -06 AN (9/16x18) 9000psi / 612 bar GA-QCMD06BJM14-B GA-QCMD06BJM14-S
M10 -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08BJM10-B GA-QCMD08BJM10-S
M12 -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08BJM12-B GA-QCMD08BJM12-S
M14 -08 AN (3/4x16) 9000psi / 612 bar GA-QCMD08BJM14-B GA-QCMD08BJM14-S

Burst pressure values refer to the Quick Click fitting.

Frequently Asked Questions

Does Quick Click seal when I disconnect it?

No. They are quick release, but not dry break. When you separate the coupling, the fluid in the line runs out. Relieve the system pressure and drain or catch the fluid before you disconnect. If you need a coupling that shuts off on both sides, use the BOOST Products Dry Break Quick Release / Disconnect Adapter.

What do I need for a complete Quick Click connection?

Two halves in the same dash size: one Quick Click male part (pin) and one female part (socket). A -06 AN male will not fit a -10 AN female.

Which fluids can I run through it?

Fuel, E85, methanol, oil and coolant. The anodized aluminum body resists common automotive fluids.
